Name: ABB 07DC91 GJR5251400R3202 Digital I/O Module Original
Brand: ABB PLC
SKU: 7370
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

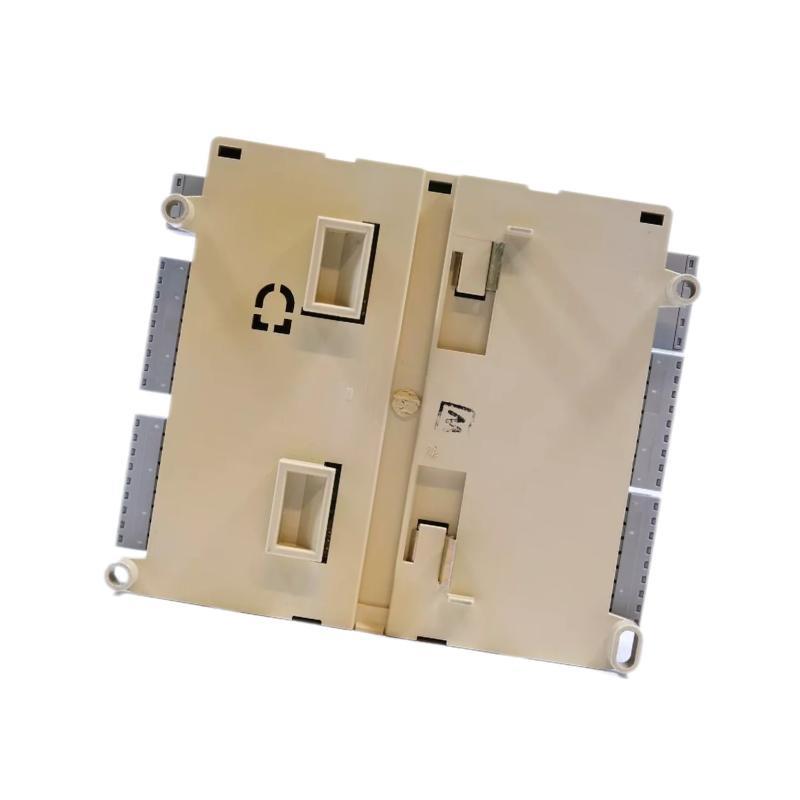

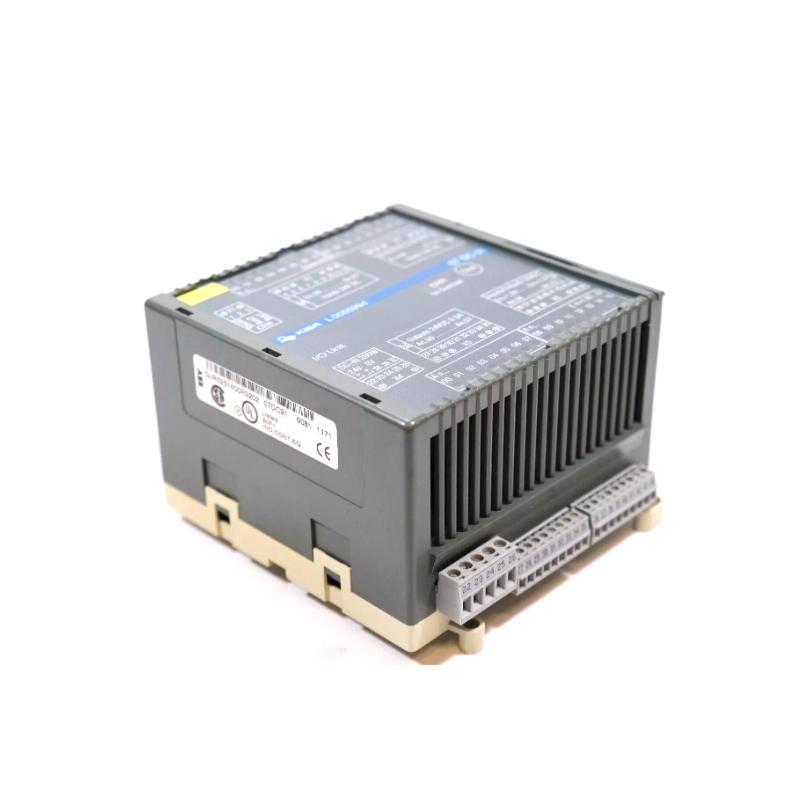

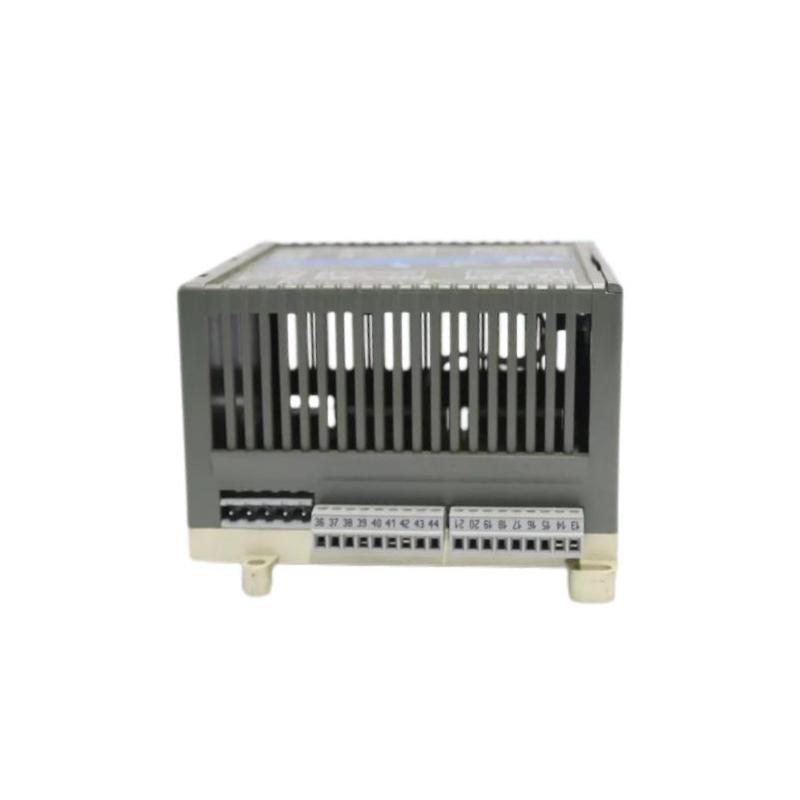

ABB 07DC91 GJR5251400R3202 Digital I/O Module Original

Brand：ABB

Item No.：07DC91 GJR5251400R3202

Product Type：Digital I/O Module

Product Origin：Sweden (SE)

Dimensions：120 × 140 × 85 mm

Weight：1.07 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the power supply requirement for the ABB 07DC91 module?
The module operates with a rated supply voltage of 24 V DC.

How many input and output channels does the 07DC91 module have?
It features 16 digital inputs, 8 digital transistor outputs, and 8 configurable I/O channels.

Are the outputs of the 07DC91 module protected against short circuits?
Yes, the outputs are protected against overload and short circuit with automatic reactivation after fault removal.

Can the configurable I/O channels be changed during operation?
The configurable channels are set through the user program and recognized at initialization; dynamic change during operation requires reinitialization.

How does the module indicate faults or errors?
A red LED on the front panel lights up to indicate faults such as short circuit, overload, or bus errors. Diagnostic information is also sent to the central unit.

What is the switching capacity of the output channels?
Each transistor output can handle up to 0.5 A at 24 V DC. The total output group current should not exceed 4 A.

What type of electrical isolation is provided in the 07DC91 module?
The CS31 system bus interface is electrically isolated from the power and signal sections of the module.

What are the module’s dimensions and weight for cabinet installation?
The physical dimensions are 120 × 140 × 85 mm (W × H × D), and the operational weight is approximately 1.07 kg.
