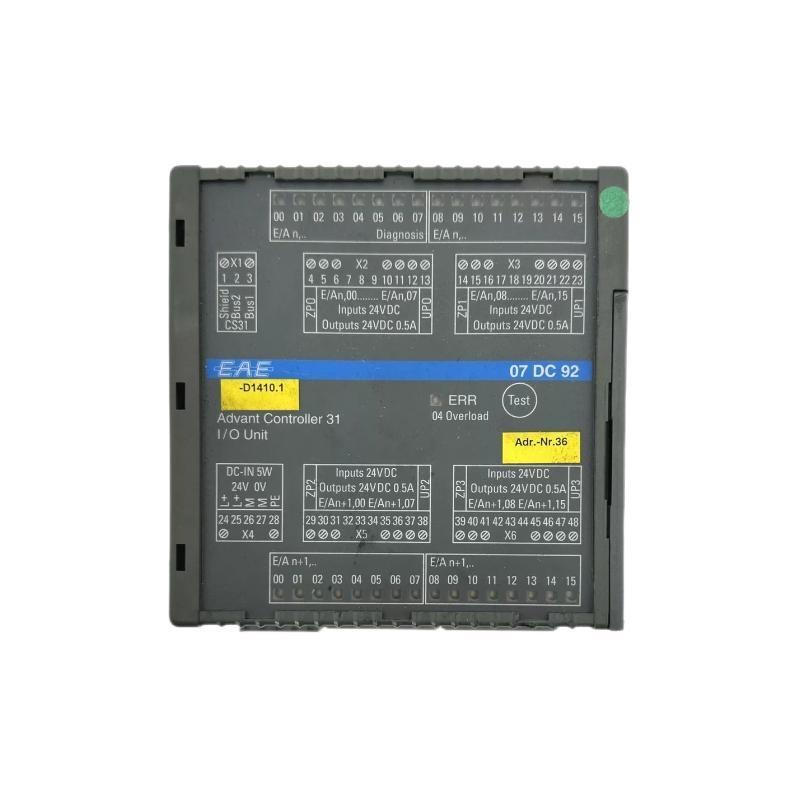

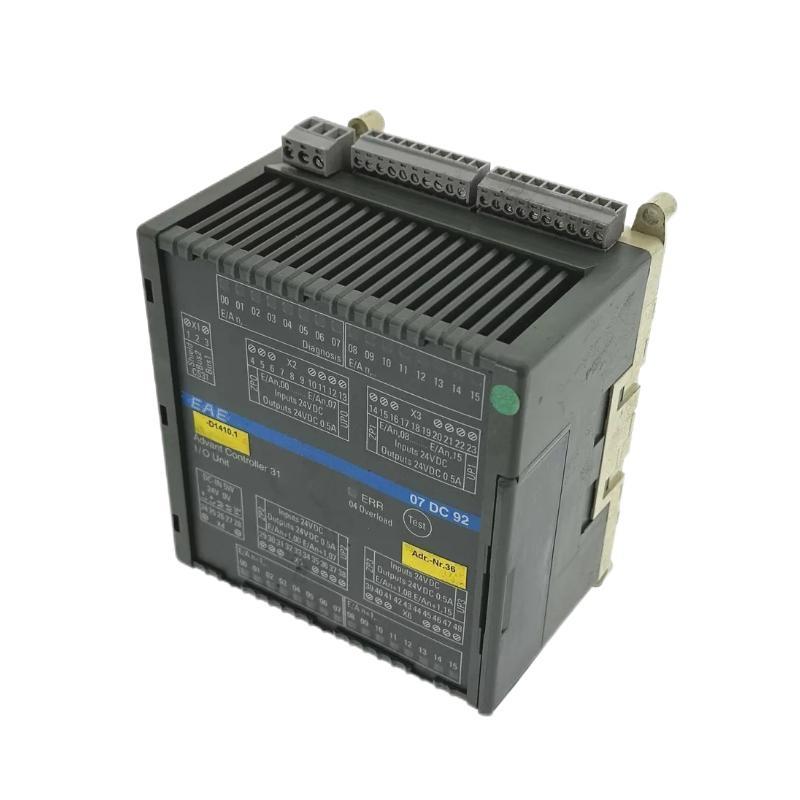

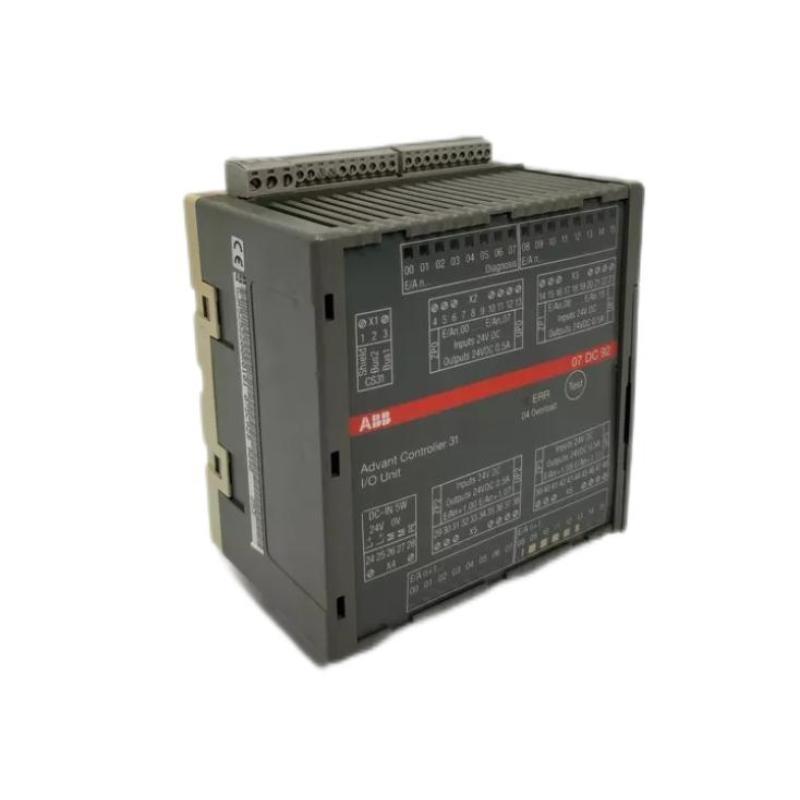

ABB 07DC92 GJR5252200R0101 Digital I/O Module 30-Day Returns！

Frequently Asked Questions (FAQs)

How many I/O channels does the ABB 07DC92 module provide?
The ABB 07DC92 module provides 32 configurable digital I/O channels, which can be individually defined as input, output, or re-readable output.

What is the rated voltage for input and output signals?
Both input and output channels operate at a nominal signal voltage of 24 V DC.

Is the module protected against short circuits or overload conditions?
Yes, the outputs are protected against short circuits and overloads. The module automatically deactivates the affected output and reactivates it once the fault is cleared.

How is the ABB 07DC92 mounted in a control panel?
The module can be mounted on a DIN rail (15 mm depth, EN 50022-35 standard) or fixed using 4 screws (M4 size).

What kind of diagnostic information does the module provide?
The module includes 32 yellow LEDs for signal states and one red LED for error conditions. It can report overloads, short circuits, internal module errors, and bus errors.

Can the I/O channels be configured dynamically during runtime?
No, the channel configuration (input or output) is defined through the user program and read during initialization. Runtime changes require reinitialization.

How is addressing configured on this module?
Addressing is set using a DIL switch under the slide cover on the right side of the module housing. The address is read only at power-on.

What is the maximum load current per group of outputs?
Each group of 8 outputs can carry a total current of up to 4 A.
