Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

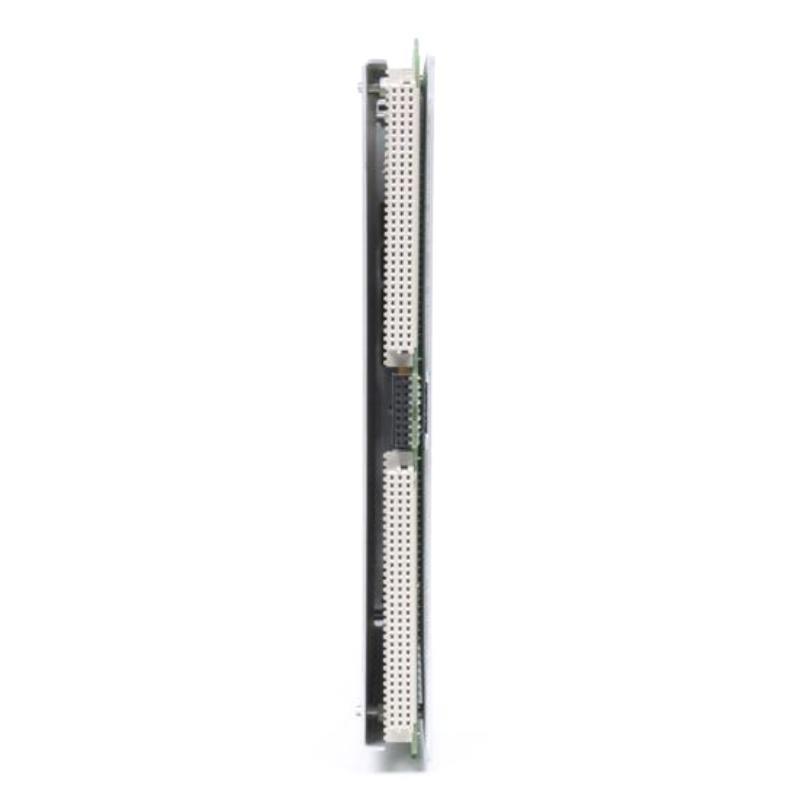

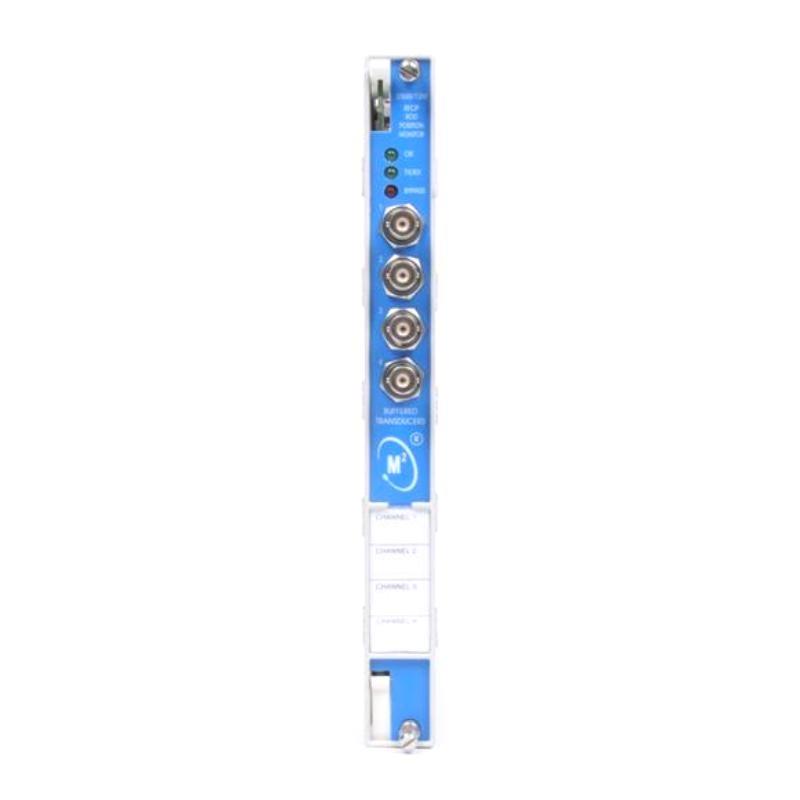

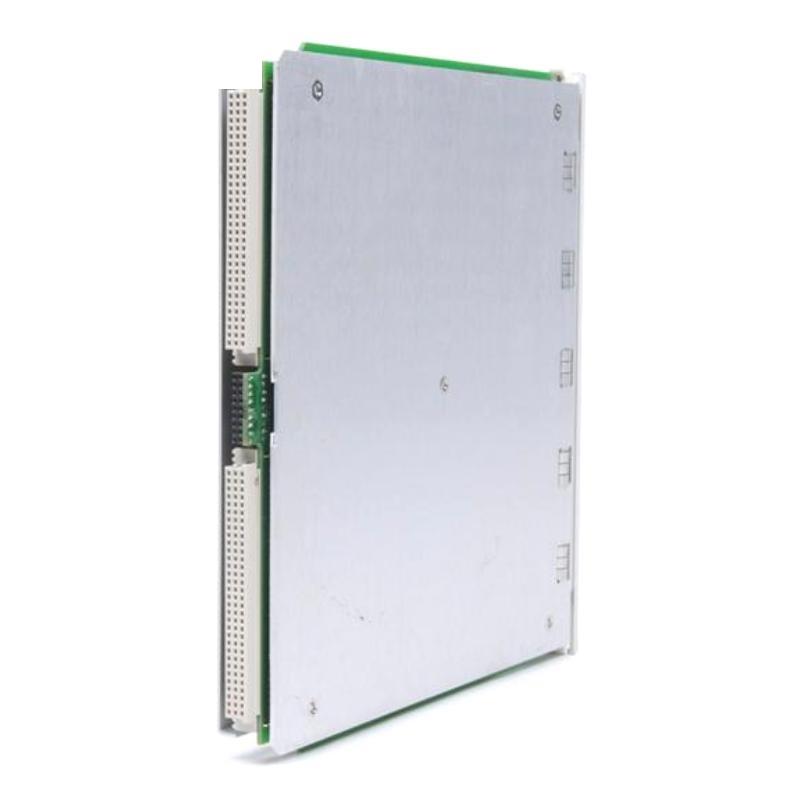

Bently Nevada 3500/72M 176449-08 Recip Rod Position Monitor Unbelievable Prices!

Brand：Bently Nevada

Item No.：3500/72M 176449-08

Product Type：Recip Rod Position Monitor

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance and explanation support, stable and reliable service

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What does the 3500/72M Recip Rod Position Monitor measure?
It measures rod position, rod drop, and hyper-compressor rod motion parameters such as peak-to-peak amplitude, rod angle, crank angle, gap, and instantaneous piston position.

How many proximity probes can the 3500/72M accept?
It accepts up to four proximity transducer signals across four channels.

What is the power consumption of the 3500/72M module?
The power consumption is nominally 7.7 watts.

What is the typical accuracy of the rod position amplitude measurements?
Accuracy is typically within ±0.33% of full-scale, with a maximum deviation of ±1%.

What kind of frequency response filters are implemented?
It uses fixed peak-to-peak filters (1–600 Hz), a -3 dB gap filter at 0.09 Hz, and constant Q notch/vector filters for 1X, 2X, and Not 1X components.

Does the module support alarm configuration?
Yes, it allows alert and danger setpoints to be configured via 3500 Rack Configuration Software, with delays adjustable from 1 to 60 seconds.

What is the environmental operating range for this unit?
The operating temperature ranges from -30°C to +65°C, depending on the I/O module type, with 95% non-condensing humidity.

What certifications does the 3500/72M comply with?
It complies with FCC, EMC (EN 61000), LV Directive (EN 61010-1), RoHS, maritime standards (DNV/ABS), and hazardous area approvals including ATEX and cNRTLus.
