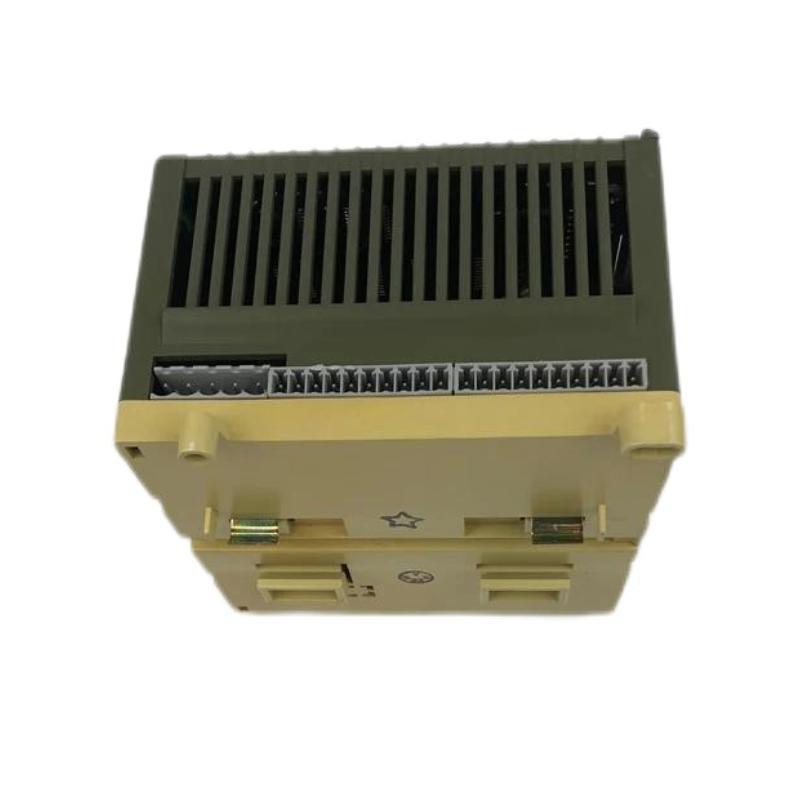

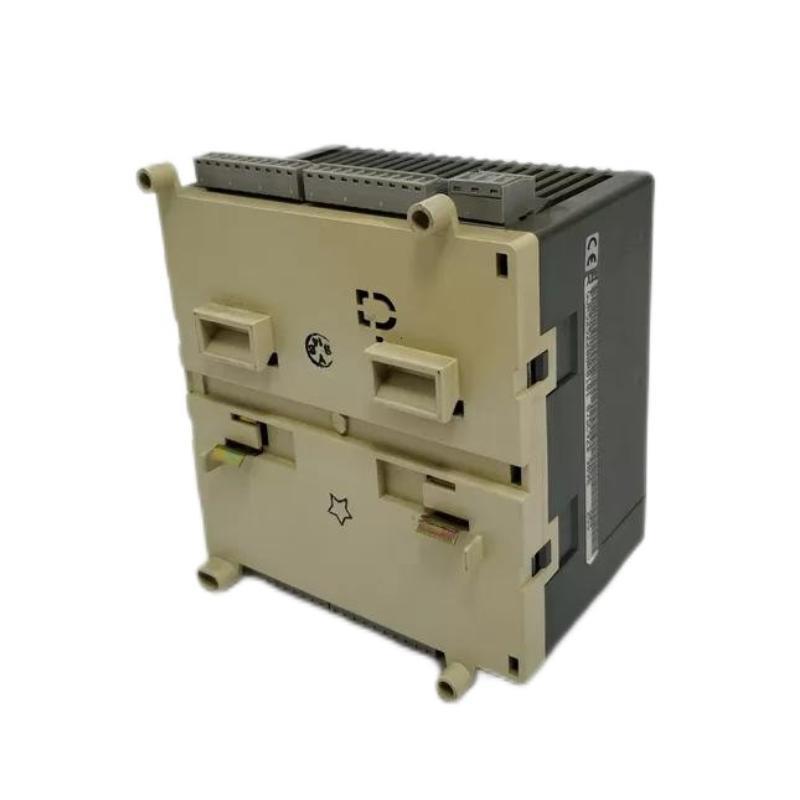

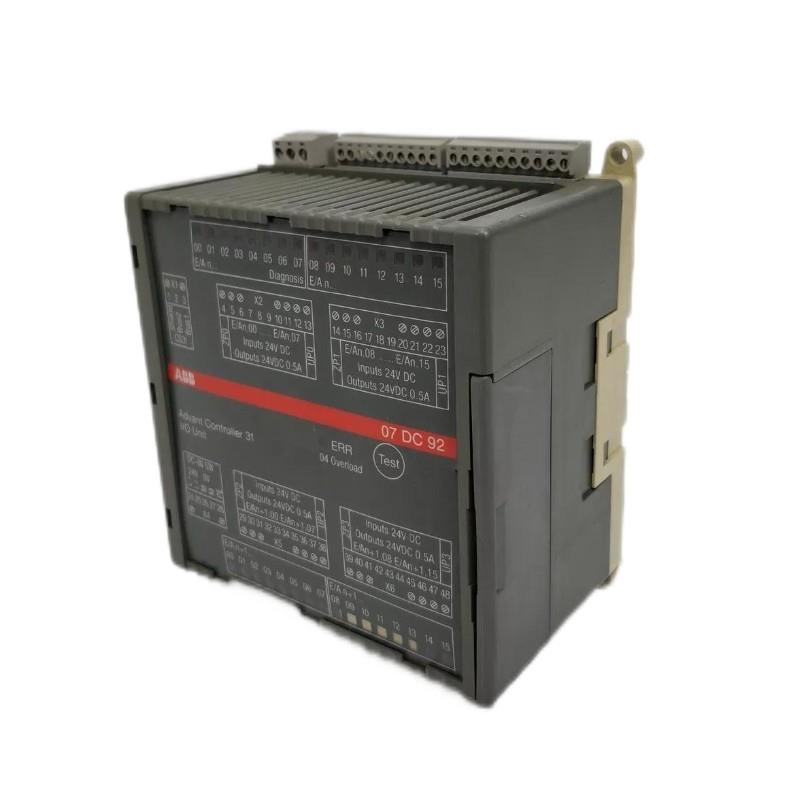

ABB 07DC92 GJR5252400R0101 Digital I/O Module Original

Frequently Asked Questions (FAQ)

How many channels can the ABB 07DC92 module handle?
The module supports 32 configurable digital channels, which can each be independently used as input, output, or re-readable output.

Are the input and output channels electrically isolated?
Yes, the channels are divided into 4 groups, and each group is electrically isolated from the others and from the rest of the module.

What is the maximum current that can be drawn from each output?
Each output channel can supply up to 0.5 A, with a total maximum of 4 A per group.

What kind of protection is provided against short circuits?
The module includes protection against short circuits and overloads, with automatic shutdown at >0.7 A and automatic reactivation after the fault is cleared.

How is diagnosis performed on the module?
Diagnosis is done using the built-in test button and LED indicators. Each channel can be tested individually, and overloads or errors are shown via the red LED and flashing yellow LEDs.

Can the module be mounted both horizontally and vertically?
No, the module should be mounted vertically, with connectors facing upward and downward, to ensure proper natural convection cooling.

What type of system bus is used for communication?
The 07DC92 module communicates via the CS31 system bus, based on the EIA RS-485 standard.

Does the module require manual reset after a short circuit is cleared?
No manual reset is needed. The module automatically resumes normal operation after the fault condition is corrected.
