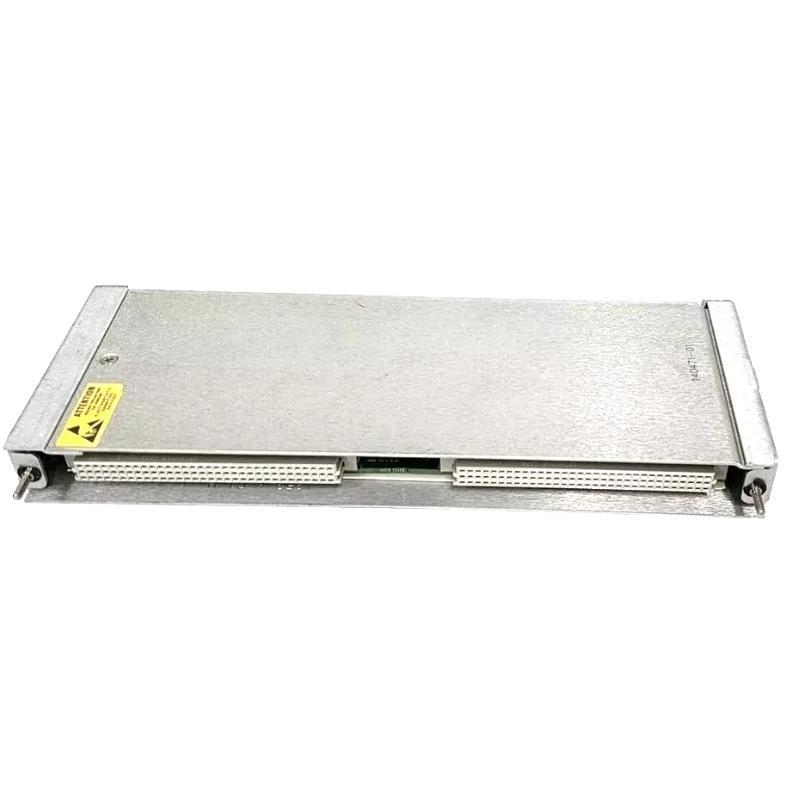

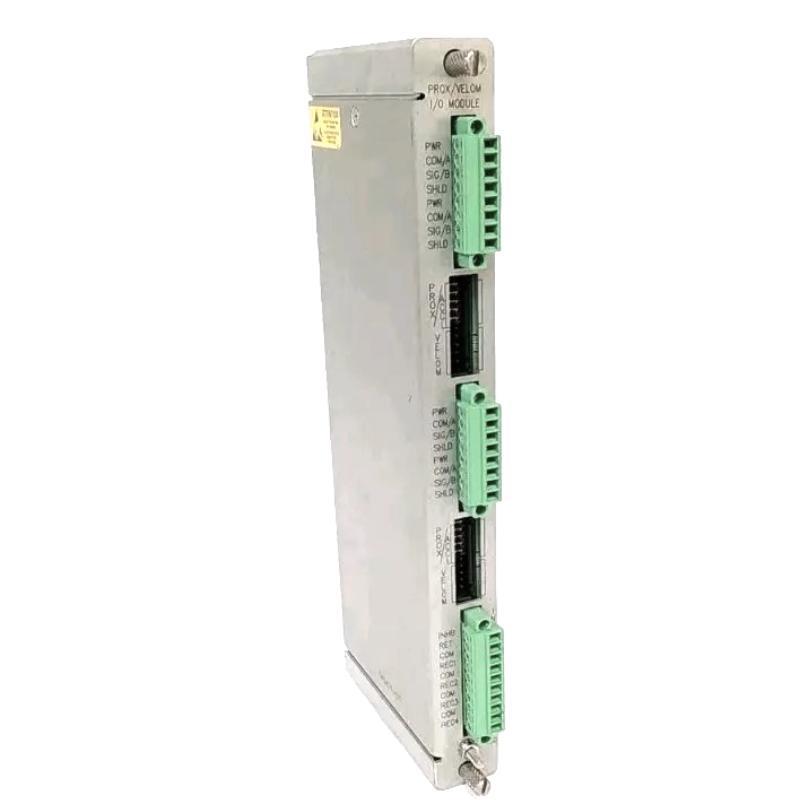

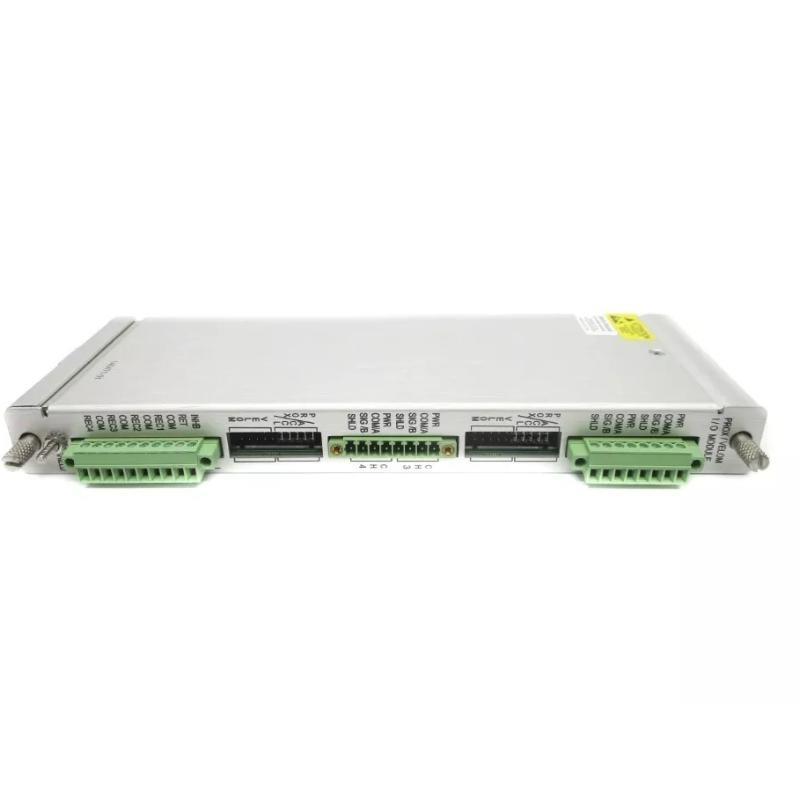

Bently Nevada 3500/72M 140471-01 Recip Rod Position Monitor I/O Module 100% New

Frequently Asked Questions (FAQ)

What is the primary function of the 3500/72M 140471-01 I/O Module?
It serves as the input/output interface for the Recip Rod Position Monitor, receiving proximity transducer signals and allowing the monitor to assess rod position, rod drop, or hyper-compressor data.

How many channels does the I/O module support?
It supports up to 4 input channels, configured in pairs, allowing simultaneous monitoring of different parameters.

What types of measurements can be made using this module?
Depending on the configuration, it can measure rod position, rod drop, average and instantaneous piston position, crank angle, and associated vibration amplitudes (1X, 2X, Not 1X).

Is this module suitable for use in hazardous environments?
Yes, the module is certified for use in Class I, Division 2 and Zone 2 hazardous environments, both with and without internal barriers.

What configuration software is required for setting up the module?
The module must be configured using the 3500 Rack Configuration Software version 3.20 or higher. Specific functions require version 6.0 or later.

What is the frequency response range for signal processing?
The primary filters operate in the 1 Hz to 600 Hz range. Additional notch and vector filters are applied for 1X, 2X, and Not 1X frequencies.

How are alarms managed within this module?
Alarms are set via software with thresholds configurable from 0% to 100% of full-scale. There are also programmable time delays for both Alert and Danger alarms.

Can this module be used with different I/O terminations?
Yes, it is available with internal terminations (model 140471-01), external terminations (model 140482-01), and internal barriers for hazardous area compliance (model 135489-01).
