Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

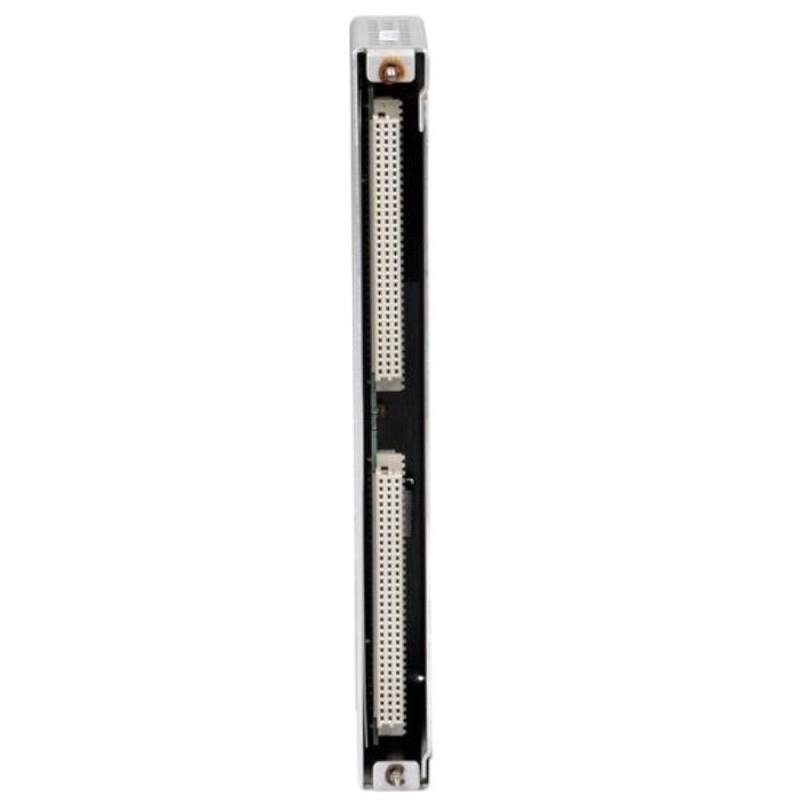

Bently Nevada 3500/22M 146031-01+288055-01 Transient Data Interface Module 12-Month Warranty

Brand：Bently Nevada

Item No.：3500/22M 146031-01+288055-01

Product Type：Transient Data Interface Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The product inventory is continuously updated, and the order demand is quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the function of the 3500/22M Transient Data Interface Module?
The 3500/22M TDI functions as the interface between the 3500 monitoring system and software such as System 1. It integrates rack communication and data acquisition capabilities in one module.

Can the TDI module replace the 3500/20 RIM in a rack?
Yes, the TDI replaces the RIM and enhances the rack with data capture and communication functions. However, the old RIM I/O module must be removed before installing the TDI to prevent damage.

How is the 3500/22M installed in the rack?

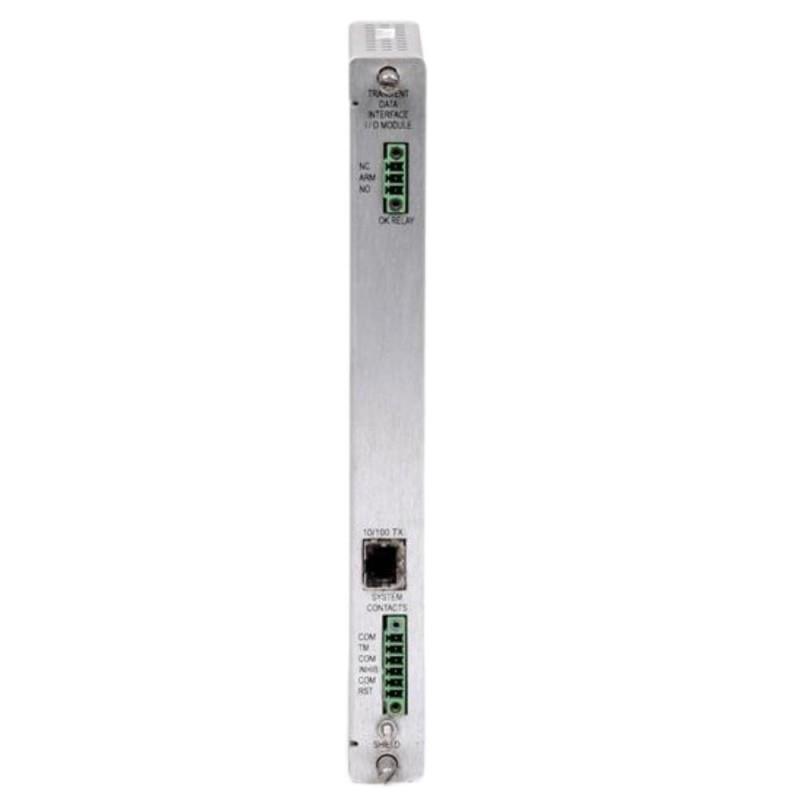

It is installed in Slot 1 of the rack, which is adjacent to the power supply. The corresponding I/O module is mounted at the rear of the same slot.

What are the data acquisition capabilities of this module?
It captures static, transient, and alarm data, and supports waveform sampling for up to 48 channels with both synchronous and asynchronous options.

How is configuration security maintained?

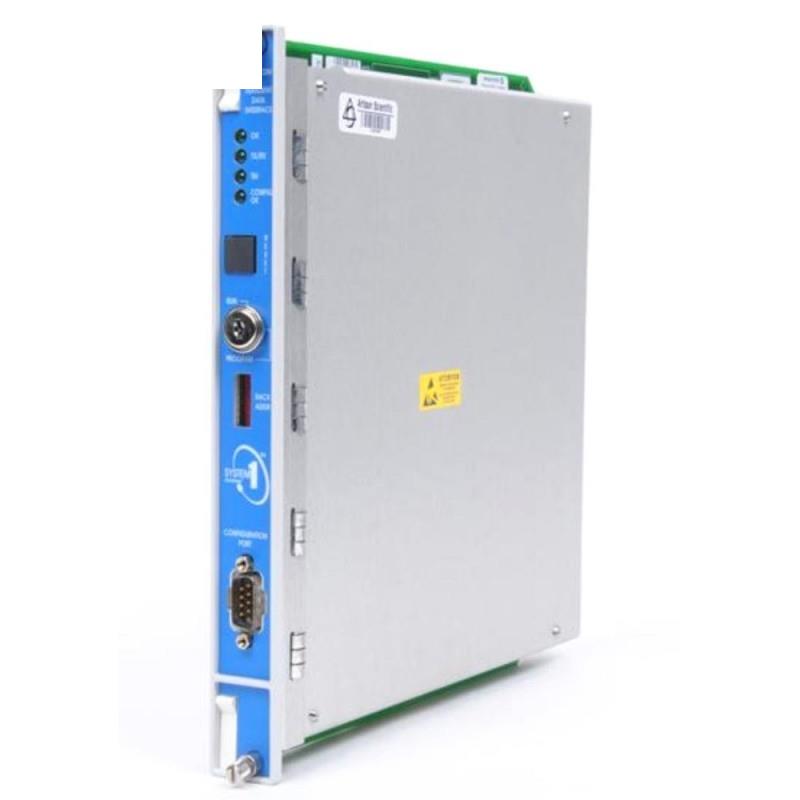

The front panel includes a configuration keylock that allows switching between RUN and PROGRAM modes. This ensures unauthorized configuration changes are prevented.

Does the module support fiber-optic communication?
Yes, the 100Base-FX option supports full-duplex multimode fiber-optic Ethernet with MT-RJ connectors, allowing up to 2000 meters of cable length.

What environmental conditions can the 3500/22M tolerate?
The module operates in temperatures ranging from -30°C to +65°C and can be stored from -40°C to +85°C with 95% non-condensing humidity tolerance.

Is special software required for the TDI?
Yes, it works with Bently Nevada’s System 1 software for condition monitoring and diagnostic purposes, and with 3500 Configuration Software for rack setup.
