Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

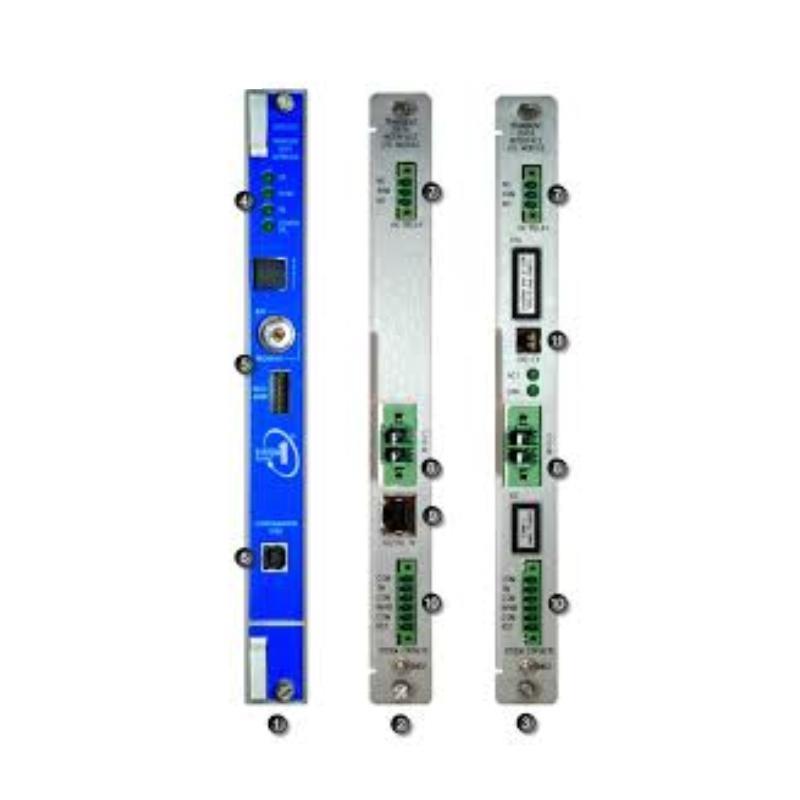

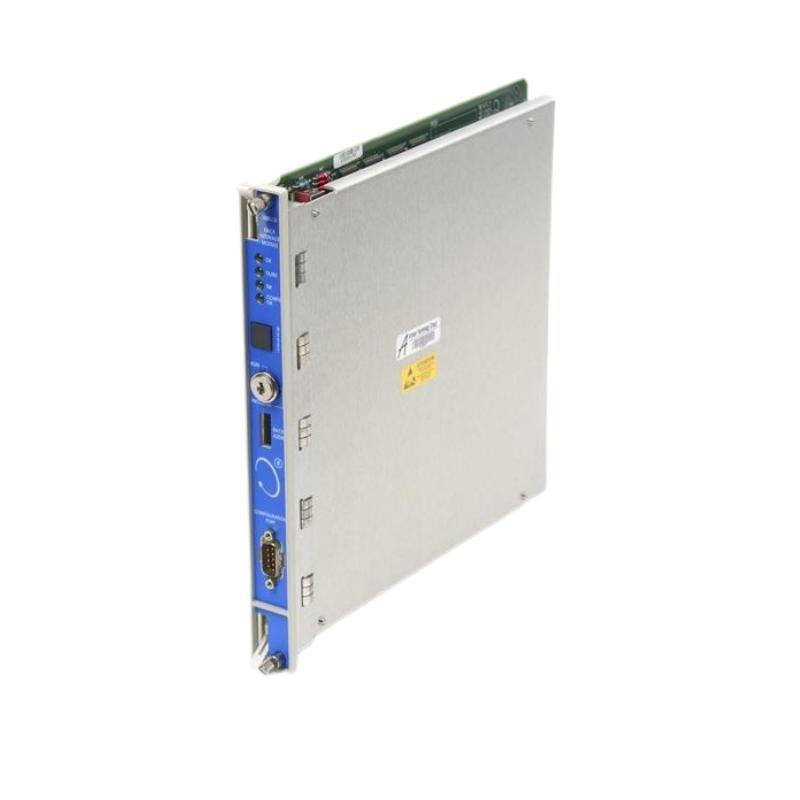

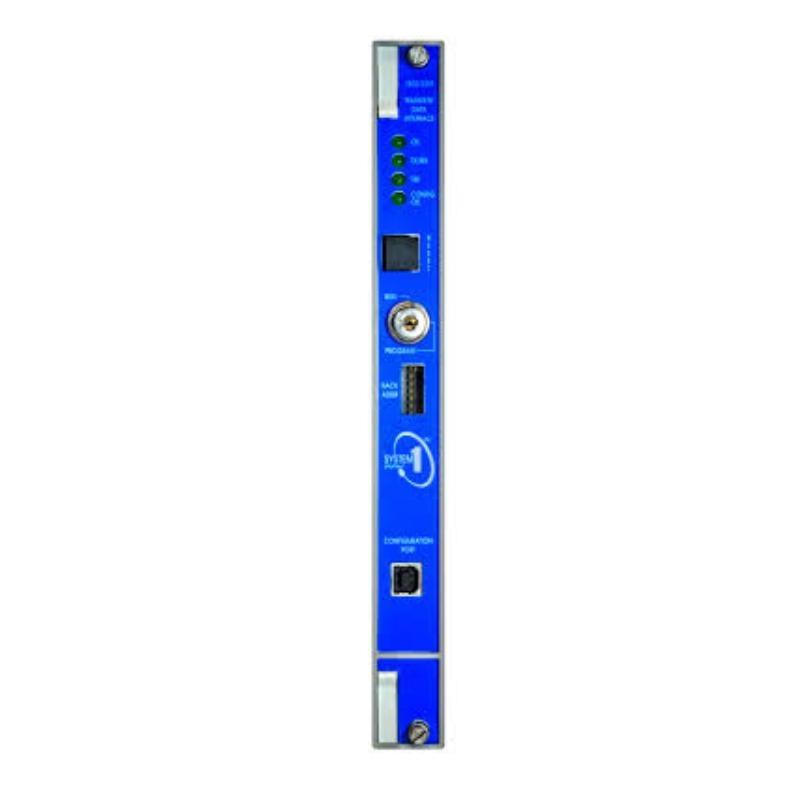

Bently Nevada 3500/22M 288055-02 Transient Data Interface Module Original

Brand：Bently Nevada

Item No.：3500/22M 288055-02

Product Type：Transient Data Interface Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary role of the 3500/22M TDI module in a 3500 system?
The 3500/22M TDI serves as the interface between the 3500 monitoring system and System 1 software, enabling both static and transient data acquisition and communication via Ethernet.

Can the 3500/22M module capture transient vibration events such as machine startups and shutdowns?
Yes, the TDI supports startup and coastdown data collection based on programmable speed/time intervals and trigger windows.

How many waveform channels can the TDI handle simultaneously?
The 3500/22M TDI can collect waveform data from up to 48 dynamic channels.

Is the TDI module part of the machinery protection path?
No, the TDI is not part of the critical protection path. It handles data collection and communication without affecting protection functions.

Does the 3500/22M support synchronous waveform sampling?
Yes, it offers multiple user-selectable synchronous sampling rates, ranging from 16 to 1024 samples per revolution.

What types of Ethernet connections are supported for data communication?
The module supports both copper (10Base-T/100Base-TX RJ-45) and fiber optic (100Base-FX MT-RJ) Ethernet connections.

Are there specific installation requirements when replacing a RIM with a TDI?
Yes, when upgrading from a RIM to a TDI, the RIM I/O must be removed before inserting the TDI I/O to avoid damaging the module.

What is the operational temperature range for the TDI?
The operating temperature range for the TDI is from -30°C to +65°C.
