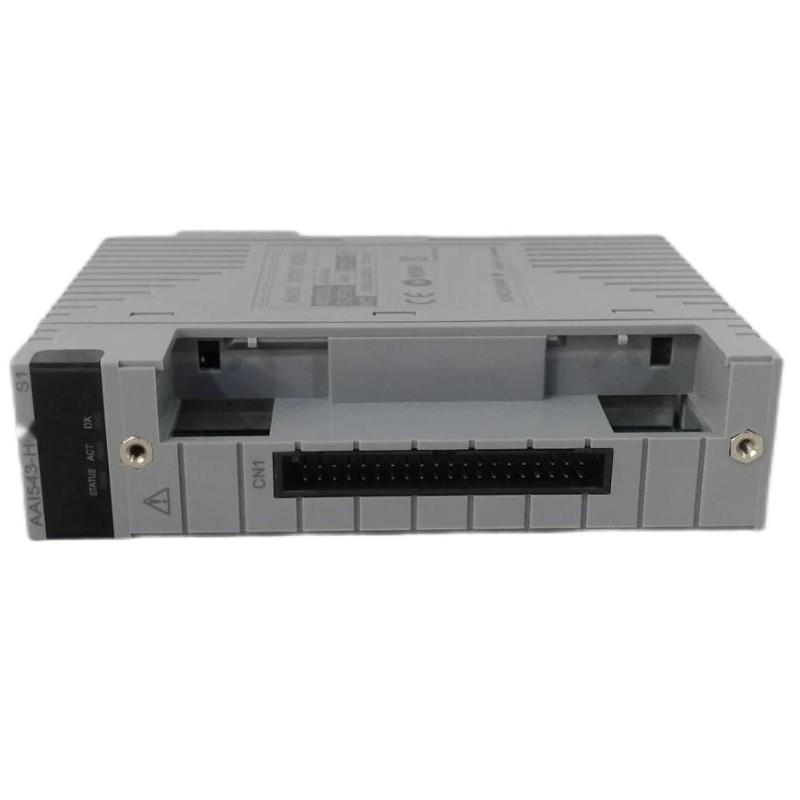

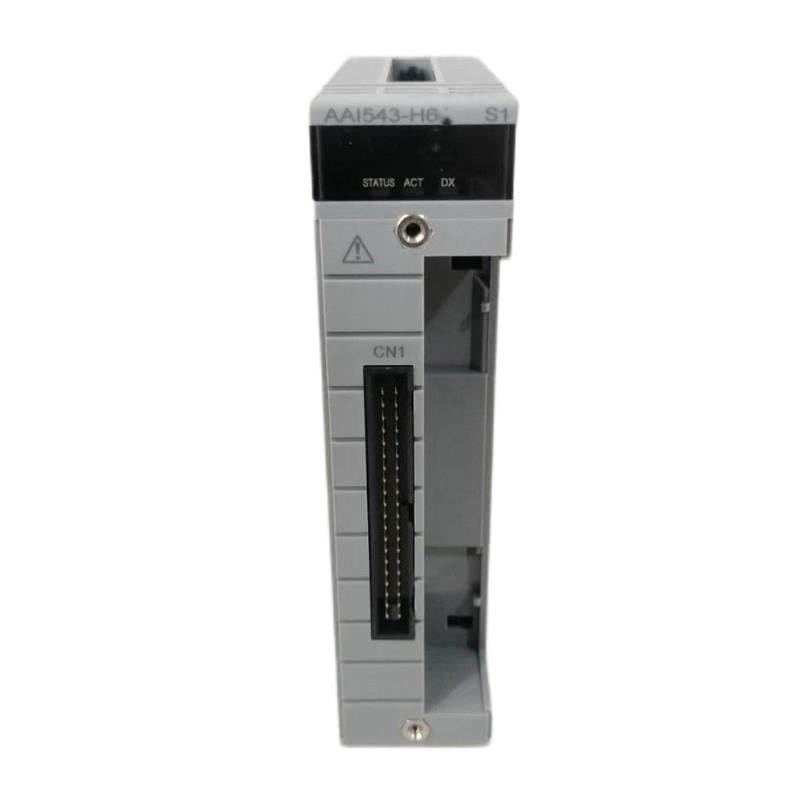

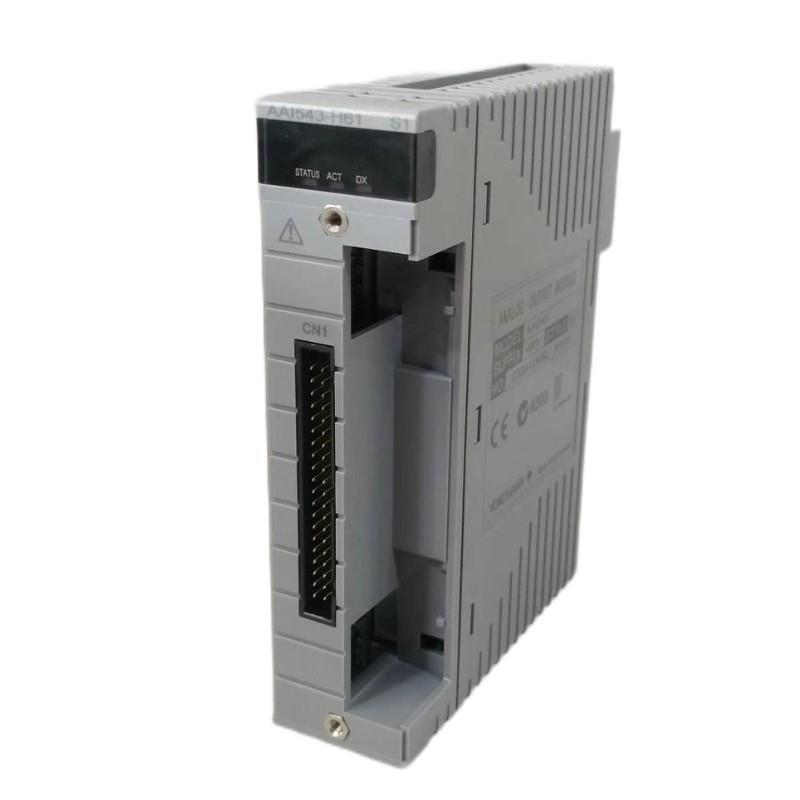

Name: Yokogawa AAI543-h60 Analog Output Module 30-Day Returns！
Brand: Yokogawa Electric
SKU: 7390
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa AAI543-h60 Analog Output Module 30-Day Returns！

Brand：Yokogawa

Item No.：AAI543-h60

Product Type：Analog Output Module

Product Origin：Japan

Dimensions：107.5 × 32.8 × 130 mm

Weight：0.4 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of the product is clear and reliable, support third-party testing, and perfect after-sales support

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the AAI543-H60 module?
The AAI543-H60 is a 16-channel isolated analog output module that converts digital output values from a controller into 4 to 20 mA analog current signals for field device actuation.

Can this module be used in redundant configurations?
Yes, it supports fast switch-over in dual-redundant configurations, minimizing output signal drop during module failover.

Is the AAI543-H60 compatible with HART communication?
Yes, it supports HART communication when installed in an ER bus node unit with EB401 firmware revision 2 or later.

What is the maximum permissible load resistance for the output channels?
Each channel supports a load resistance ranging from 0 to 750 Ω.

What type of isolation is provided by this module?
The outputs are electrically isolated from the system side, withstanding up to 1500 V AC for one minute.

How accurate is the output current signal?
The module offers an output accuracy of ±48 µA under standard operating conditions.

What happens to the output signal during a switch-over in a redundant setup?
In fast switch-over mode, the output signal may briefly drop below 4 mA for a maximum of 2 ms during a transition.

What are the supported methods for connecting this module to field wiring?
It supports pressure clamp terminals, MIL connectors, and dedicated KS1 cables for flexible installation.
