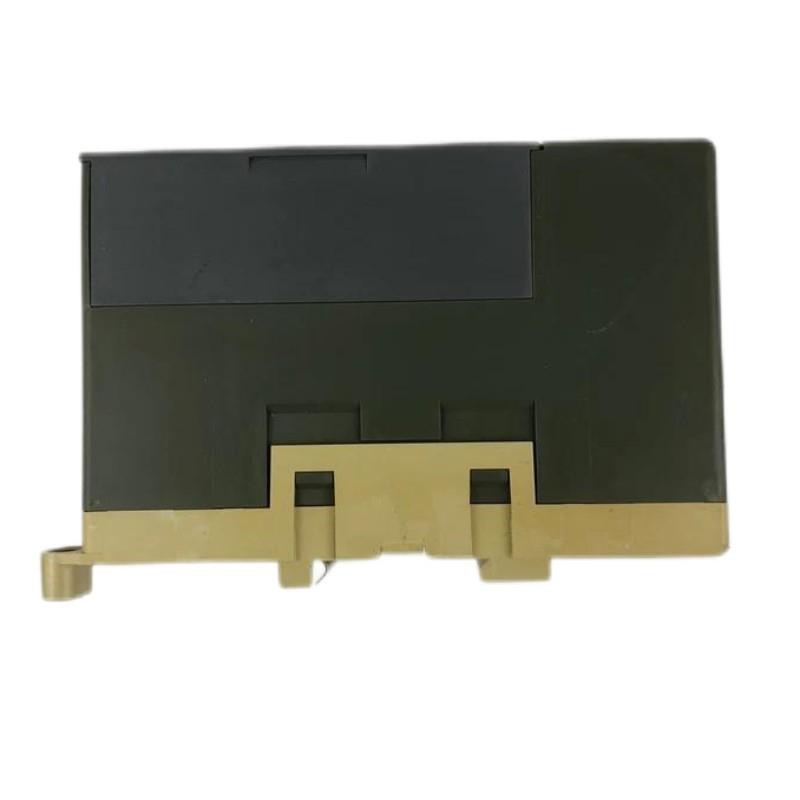

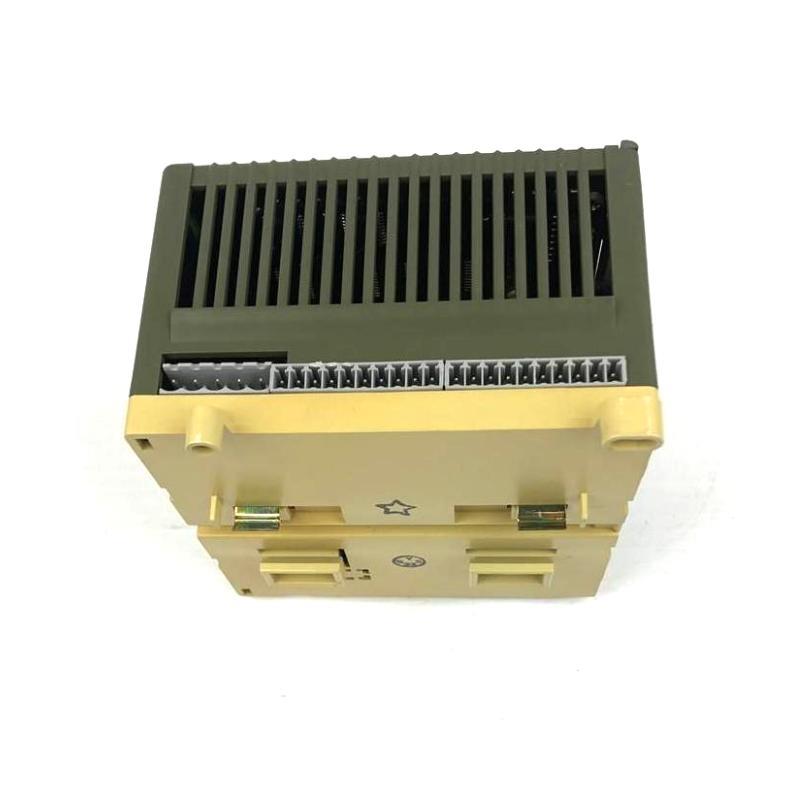

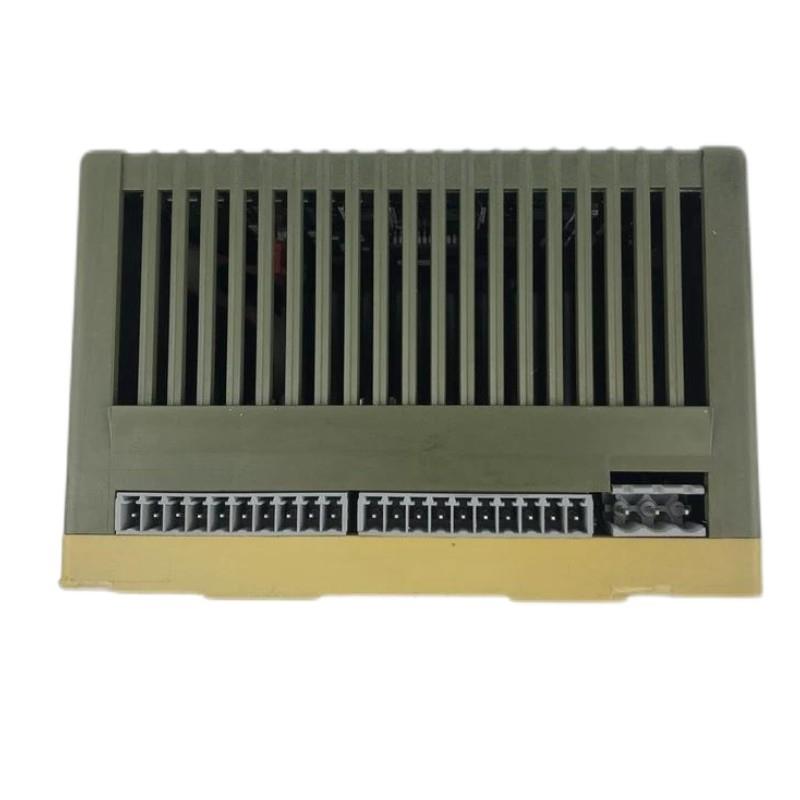

ABB 07DC92 GJR5522200R0101 Digital I/O Module 100% New

Frequently Asked Questions (FAQ)

Can all 32 channels be configured as either input or output?
Yes. Each of the 32 channels can be individually configured by the user program to operate as an input, an output, or a re-readable output.

How does the module protect against short-circuit or overload?
Outputs are protected by thermal shutdown and current limiting. If the current exceeds 0.7 A, the output is deactivated and the error is signaled by a flashing LED.

Is manual acknowledgment required after an output short-circuit?
No. Once the fault is corrected, the module automatically reactivates the output. However, the error message must be acknowledged.

What type of output does the 07DC92 module use?
The module uses transistor-type outputs designed to switch 24 V DC loads with up to 0.5 A per channel and 4 A per group.

Is the CS31 system bus connection galvanically isolated?
Yes. The CS31 bus interface is electrically isolated from the rest of the module to ensure signal integrity and safety.

How is the module addressed in a system?
The address is set using a DIL switch under the right-side slide cover. The module can occupy input/output or output-only addresses depending on switch configuration.

What diagnostic functions are available on this module?
The module includes LED indication per channel, a red error LED, and a test button to scroll through diagnostic states. Errors such as overloads and communication faults are reported.

Can the module be mounted in any orientation?
The recommended mounting is vertical, with connectors facing up and down, to ensure proper convection cooling within the control cabinet.
