Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

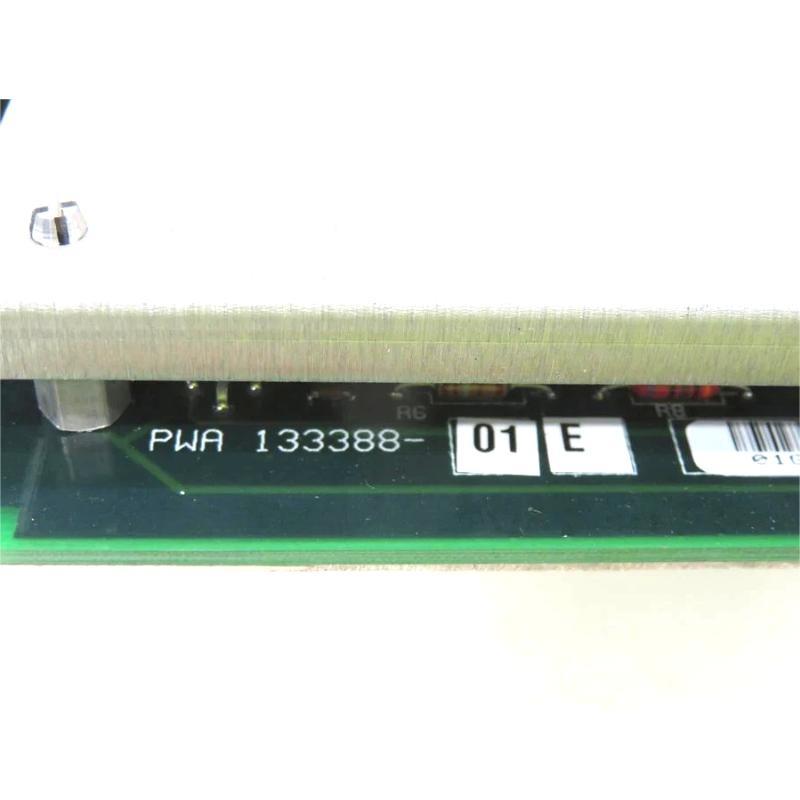

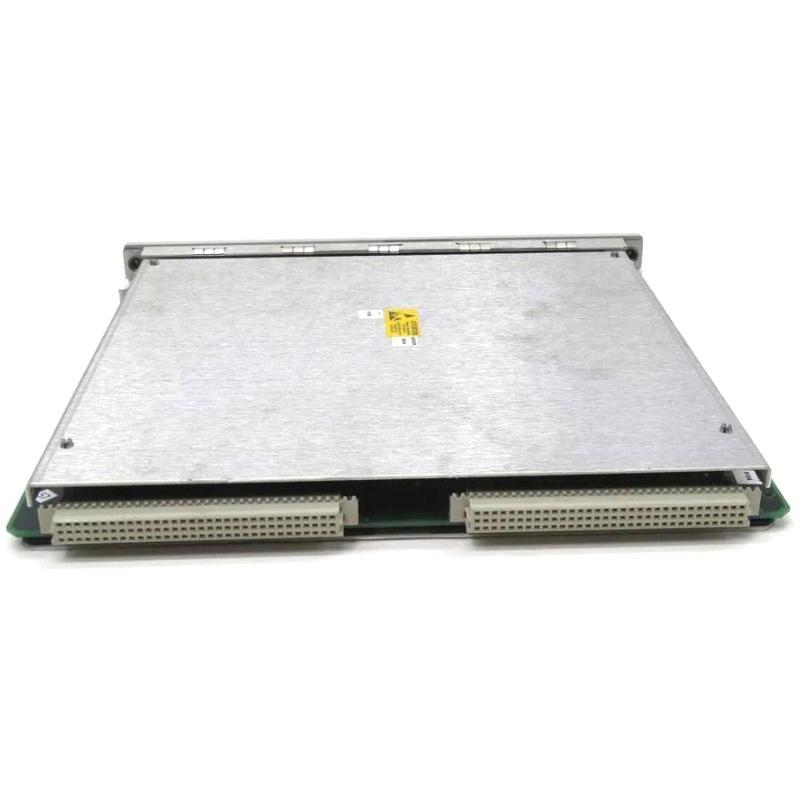

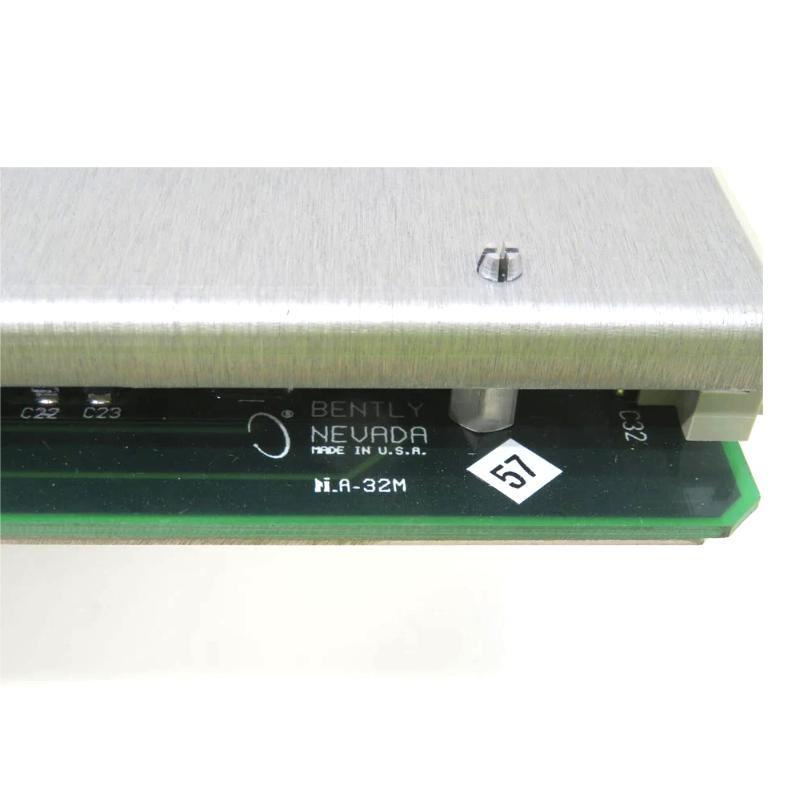

Bently Nevada 3500/53-02-00 133388-01 Electronic Overspeed Detection System 30-Day Returns！

Brand：Bently Nevada

Item No.：3500/53-02-00 133388-01

Product Type：Tachometer Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.82 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Standardized import process, support for testing, guaranteed after-sales

Ten thousand models in stock, quickly match needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What types of transducers are compatible with the 3500/53 Electronic Overspeed Detection System?
The system supports Bently Nevada 3300 series Proximitor® (5 mm to 16 mm), 3300 RAM, and magnetic pickup transducers.

What is the maximum frequency input that the module can handle?
The maximum input frequency is 20 kHz, with up to 255 events per revolution supported.

What is the RPM accuracy range of the 3500/53 module?
RPM accuracy is ±0.1 rpm for speeds under 100 rpm, ±1 rpm between 100 to 10,000 rpm, and ±0.01% above 10,000 rpm.

How many channels can be configured in this module?
The module can be configured as a 2-channel or a 3-channel system, typically in 2-out-of-2 or 2-out-of-3 voting logic.

What are the alarm capabilities of the module?
The system provides configurable Alert and Danger (Overspeed) setpoints with software-defined thresholds and <30 ms response time for frequencies above 300 Hz.

Does the module require redundant power supplies?
Yes, the use of redundant power supplies is required in a 3500 rack containing the 3500/53 module.

Can the module output data for external monitoring systems?
Yes, it provides 4–20 mA proportional outputs and buffered transducer outputs for external data acquisition.

What environmental conditions can the module operate in?
It operates from -30 °C to +65 °C, supports 95% non-condensing humidity, and is designed for use in Class I, Div 2 hazardous areas when certified.
