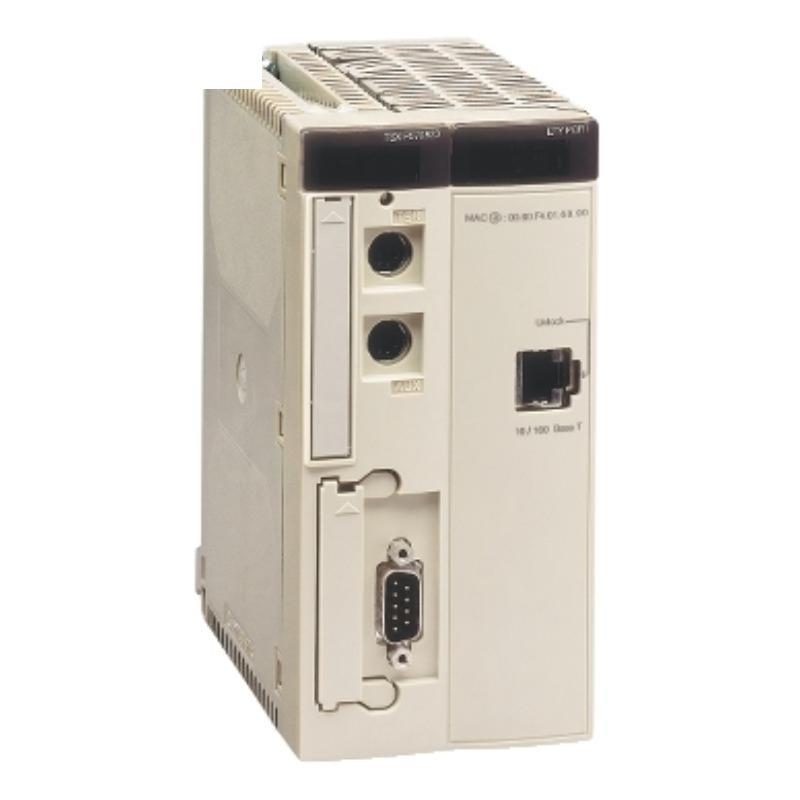

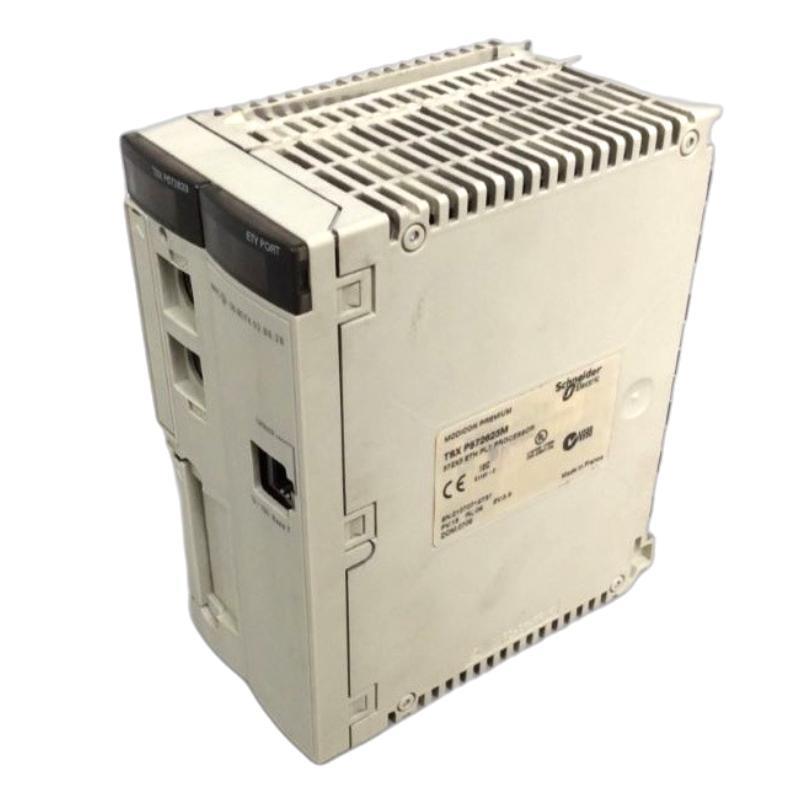

Schneider TSXP572623 Double Format PL7 Processor Original

Frequently Asked Questions (FAQ)

What is the main difference between using a PCMCIA card and not using one in the TSXP572623?
Without the PCMCIA card, the processor uses internal RAM for both program and data (48 Kwords). With the card, the internal RAM is used only for data, while the PCMCIA provides extended memory for programs (160 Kwords) and additional data storage (up to 2688 Kwords).

How many discrete and analog I/Os does this processor support?
The TSXP572623 supports up to 1024 discrete I/O points and 80 analog I/O points.

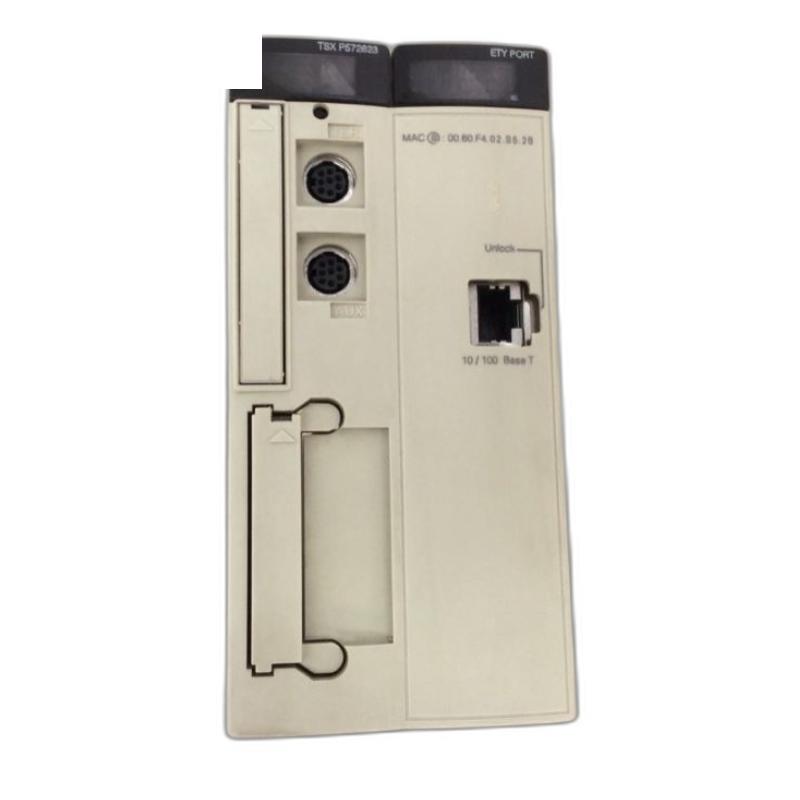

What is the purpose of the dual Mini-DIN connectors on the front panel?
These connectors provide serial communication interfaces for connecting programming terminals or peripheral devices, operating at 19.2 kbit/s.

Can this module be used with Ethernet networks?
Yes, it includes an RJ45 port supporting Ethernet TCP/IP at 10/100 Mbps and provides diagnostic LEDs for Ethernet status.

What types of communication modules are supported?
The processor can support one fieldbus module (none if CANopen is used), up to four AS-Interface modules, or one CANopen module.

How many event tasks can be managed by the application structure?
The processor supports up to 64 event tasks in addition to 1 master task and 1 fast task.

What are the execution speeds for Boolean and arithmetic operations?
Boolean operations execute in 0.19 µs (no card) or 0.21 µs (with card), while fixed-point arithmetic operations take 0.25 µs (no card) or 0.42 µs (with card). Floating-point operations take 2.6 µs regardless of card usage.

What certifications does the TSXP572623 hold for industrial applications?
It is certified by UL, CSA, CE, DNV, BV, ABS, GL, LR, RMRS, and RINA, ensuring compliance with international industrial standards.
