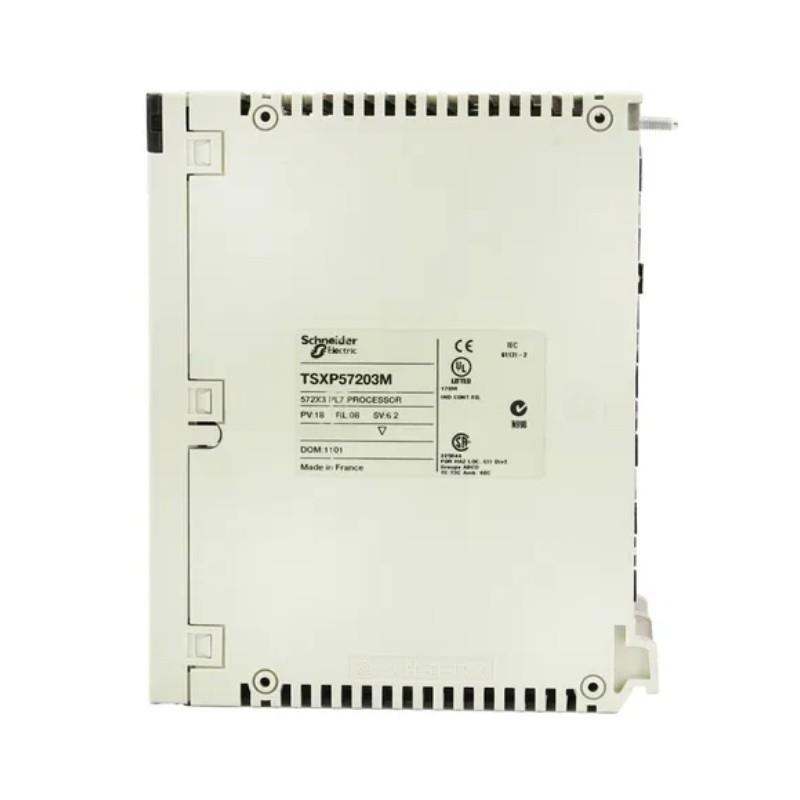

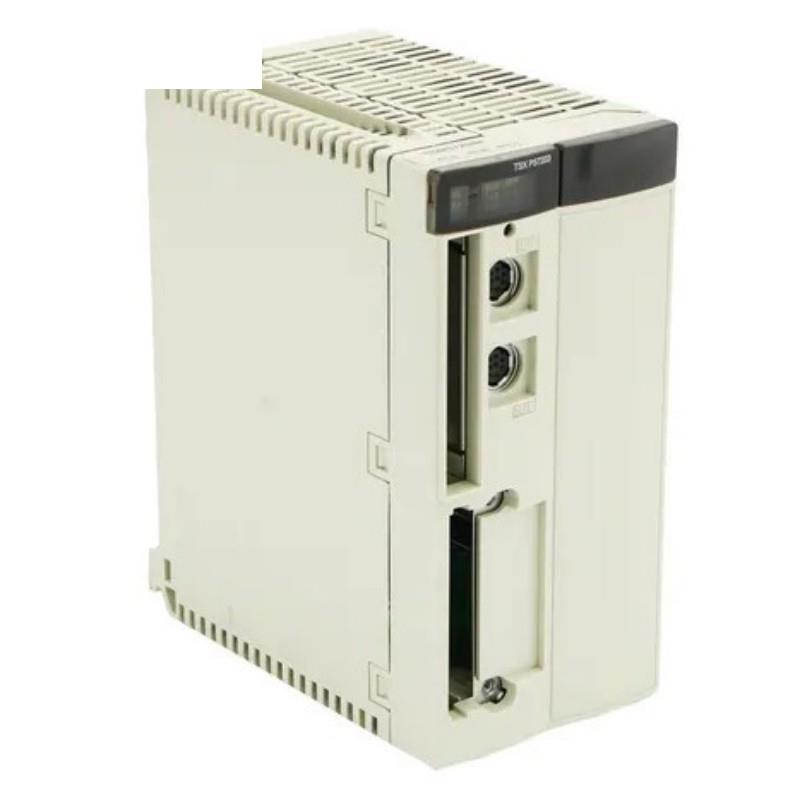

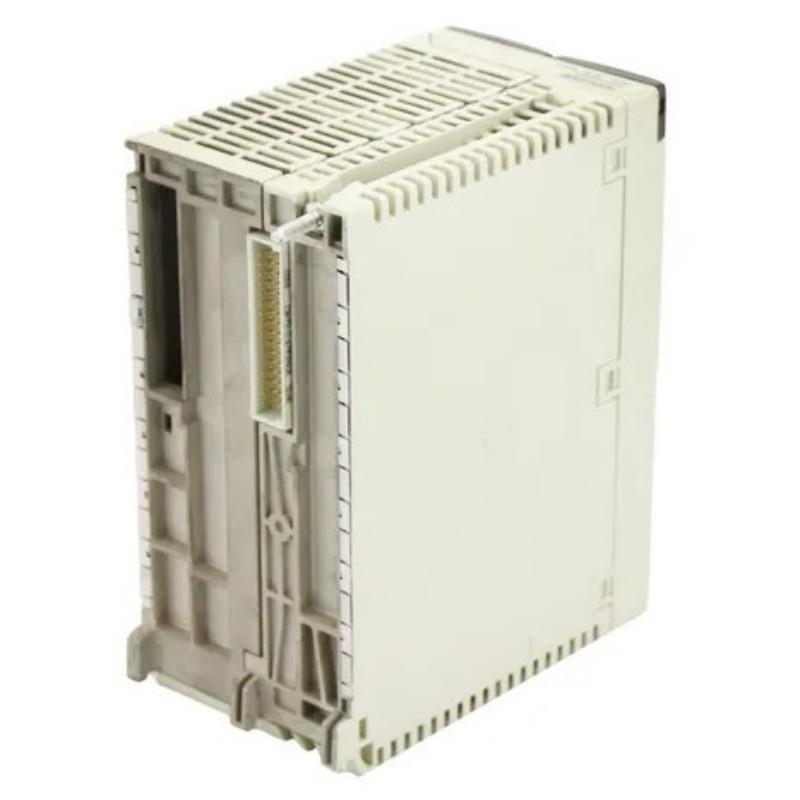

Schneider TSXP57203M Double Format PL7 processor 12-Month Warranty

Frequently Asked Questions (FAQ)

What is the primary application of the TSXP57203M processor module?
The TSXP57203M is primarily used in large-scale industrial automation systems for managing I/O, executing logic control, and communicating with distributed field devices through multiple communication interfaces.

Can I use both PCMCIA slots simultaneously for memory and communication?
Yes, one slot is intended for memory extension and the other for either a communication card or an SRAM memory card, allowing for flexible configuration.

What is the maximum number of discrete and analog I/O this processor can handle?
The processor supports up to 1024 discrete I/O and 80 analog I/O channels.

What are the key differences in execution performance with and without a PCMCIA card?
Without the PCMCIA card, Boolean execution is faster (0.19 µs vs 0.21 µs), and the instruction throughput increases (up to 4.76 Kinst/ms for 100% Boolean instructions).

Does the processor include built-in communication interfaces?
Yes, it includes two non-isolated serial ports (female mini-DIN) and supports additional communication via PCMCIA slots and modules like CANopen and AS-Interface.

Is the TSXP57203M certified for use in hazardous environments?
Yes, it complies with CSA C22.2 No 213 for Class I, Division 2, Groups A to D, making it suitable for hazardous locations.

What kind of diagnostic indicators are provided on the front panel?
The processor includes LEDs for RUN (green), I/O fault (red), processor/system fault (red), and terminal port activity (yellow) for quick diagnostics.

What environmental conditions must be met for operation and storage?
The operating temperature must be between 0–60 °C, and storage temperature between -25–70 °C. Relative humidity must not exceed 95% non-condensing.
