Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

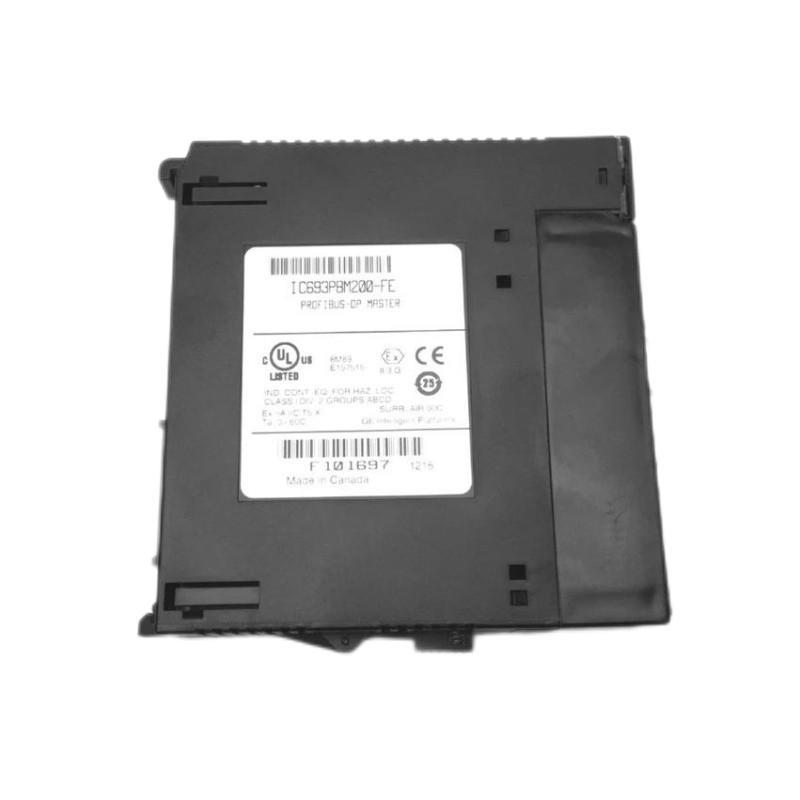

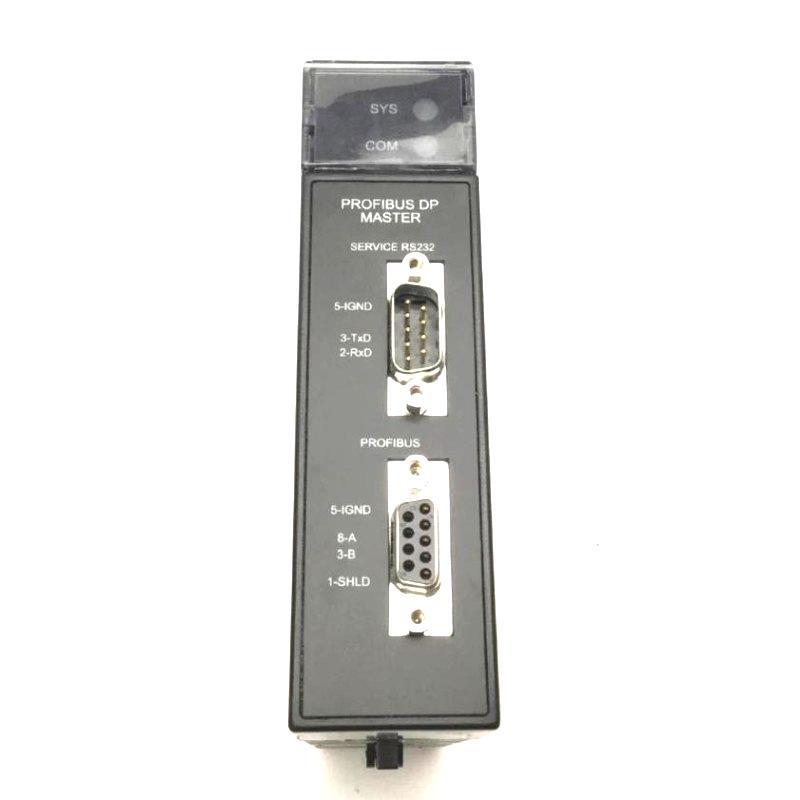

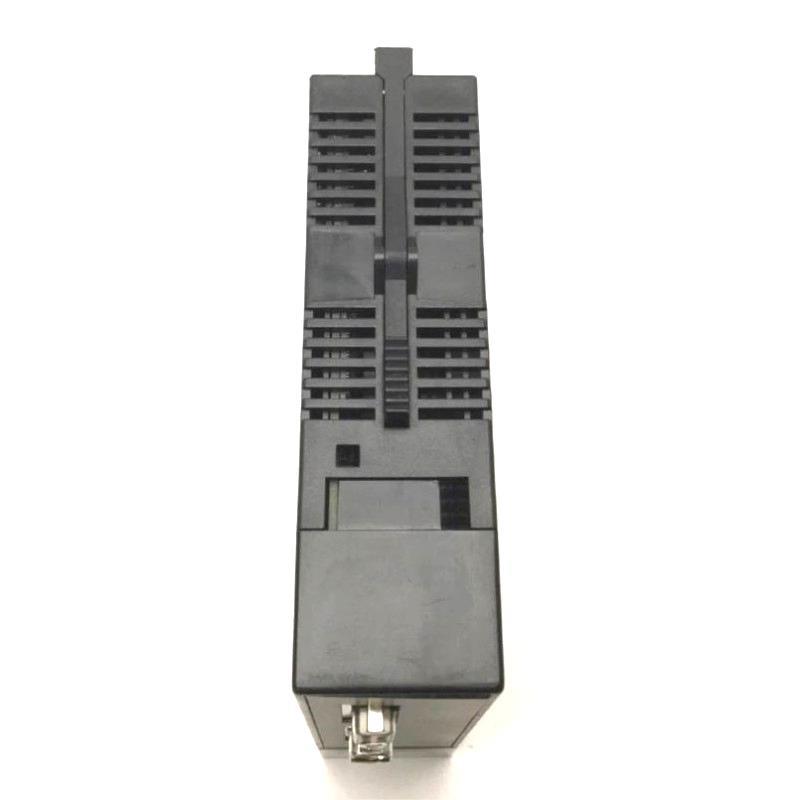

GE IC693PBM200-FE Series 90-30 PROFIBUS Master Module Unbelievable Prices!

Brand：GE Fanuc

Item No.：IC693PBM200-FE

Product Type：PROFIBUS Master Module

Product Origin：USA

Dimensions：140 x 140 x 35mm

Weight：0.2 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Standardized import process, support for testing, guaranteed after-sales

Ten thousand models in stock, quickly match needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What CPUs are compatible with the IC693PBM200-FE module?
The module is compatible with GE Series 90-30 CPUs. CPU firmware version 8.00 or higher is required, and version 10.60 or later is recommended for large network configurations.

How many PROFIBUS DP slave devices can be connected to this module?
The IC693PBM200-FE supports up to 125 PROFIBUS DP slave devices.

Can the module be configured using a Hand-Held Programmer (HHP)?
No, the IC693PBM200-FE does not support configuration using the IC693PRG300 Hand-Held Programmer.

What is the maximum amount of data that can be exchanged between the CPU and this module?
The module supports up to 3,972 bytes of input data and 3,972 bytes of output data between the CPU and the module.

What is the behavior of the module when the PLC is not scanning its I/O?
When the PLC is not scanning I/O, the IC693PBM200-FE enters Clear Mode and sends zeroed data to all configured slaves.

Are firmware updates supported on this module?
Yes, firmware updates are supported via a service port located on the module.

Does this module support Sync and Freeze functions?
Yes, it supports both Sync and Freeze modes; however, sync/freeze control bits are optional and fewer in number compared to older models.

What development software and system are required to configure this module?
ME Logic Developer PLC software version 3.0 or later is required. Supported operating systems include Windows NT 4.0 (SP4+), Windows 2000 Professional, Windows XP, and Windows 98 SE.
