Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

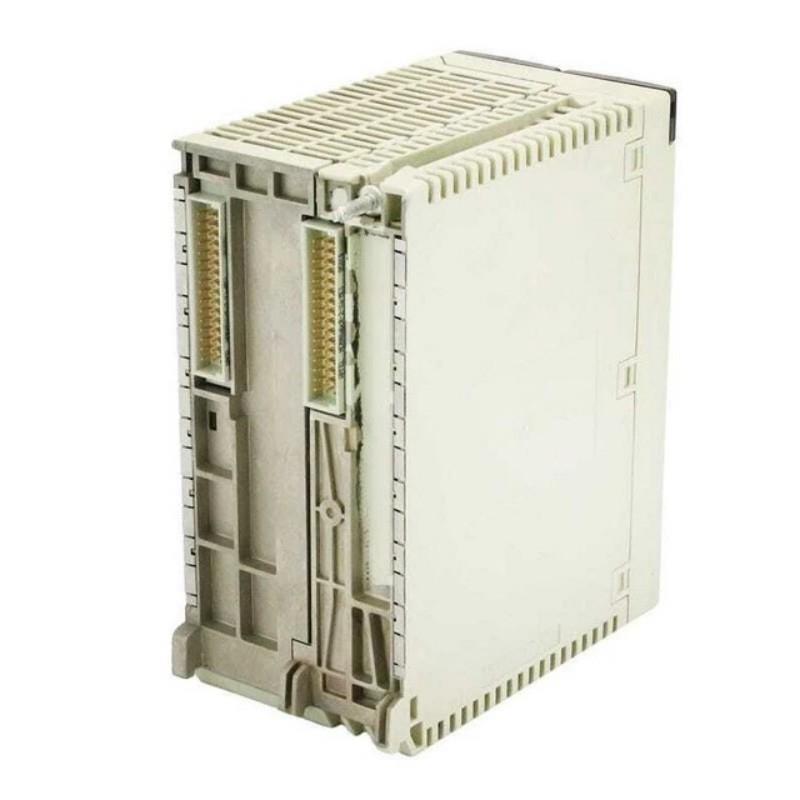

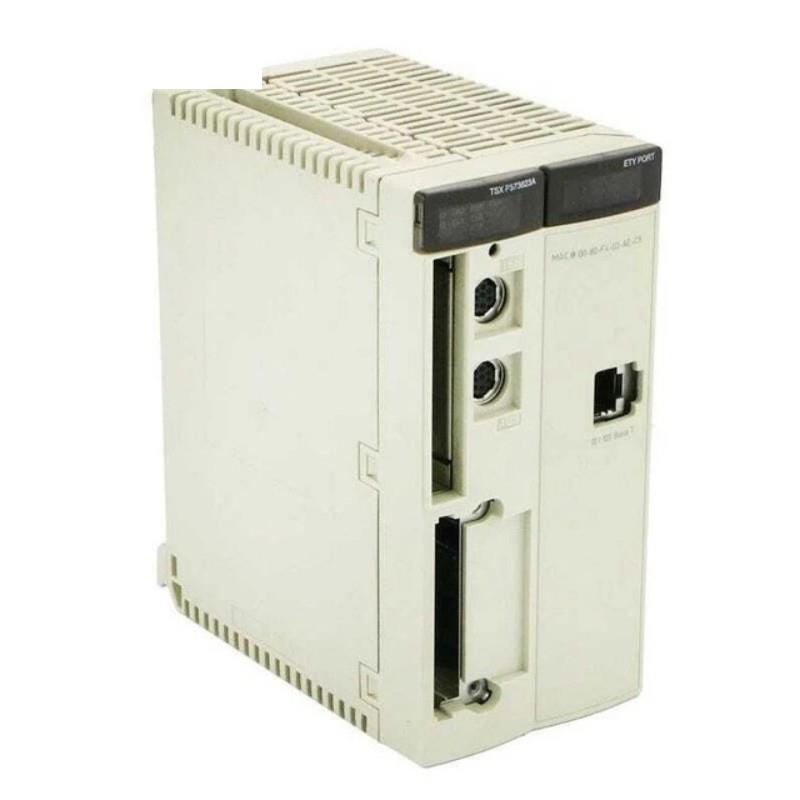

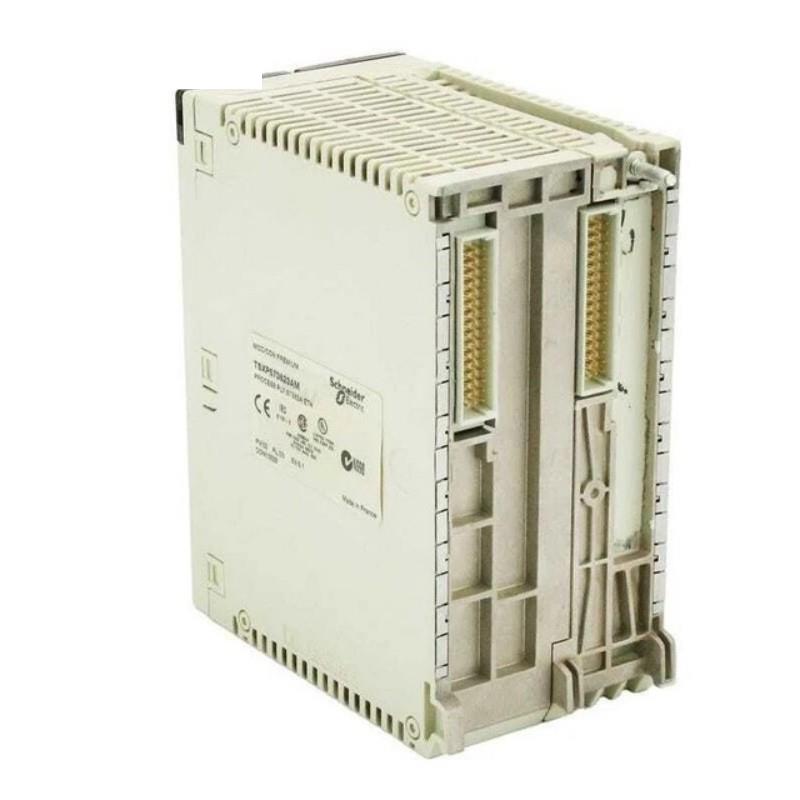

Schneider TSXP573623 Double Format PL7 Processor 30-Day Returns！

Brand：Schneider

Item No.：TSXP573623

Product Type：Double Format PL7 Processor

Product Origin：France

Dimensions：95 x 180 x 260 mm

Weight：0.76 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular supply, testing instructions can be coordinated, and after-sales service continues to follow up

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of memory expansion is available for the TSXP573623 processor?
The processor supports PCMCIA memory expansion with up to 384 Kwords for programs and 2688 Kwords for additional data storage.

How many discrete and analog I/O points does the TSXP573623 support?
It supports up to 1024 discrete I/O points and 128 analog I/O points.

What communication interfaces are integrated into the TSXP573623?
It includes Ethernet TCP/IP via RJ45 (10/100 Mbps) and two non-isolated serial mini-DIN ports (19.2–115 kbps).

What is the maximum number of slots and racks supported?
The processor can handle up to 128 slots across multiple racks (up to 16 racks with 4/6/8 slots and 8 racks with 12 slots).

What is the Boolean execution time without and with the PCMCIA card?
Without the card, Boolean instructions execute in 0.12 µs; with the card, execution time is 0.17 µs.

Does this model support event-based task execution?
Yes, the TSXP573623 supports up to 64 event tasks in addition to 1 master task and 1 fast task.

What is the operating temperature range for the TSXP573623 processor?
The processor operates within a temperature range of 0 to 60 °C (32 to 140 °F).

What are the key certifications for marine or industrial use?
The unit is certified by ABS, BV, DNV, GL, LR, RINA, and RMRS, making it suitable for marine and industrial applications.
