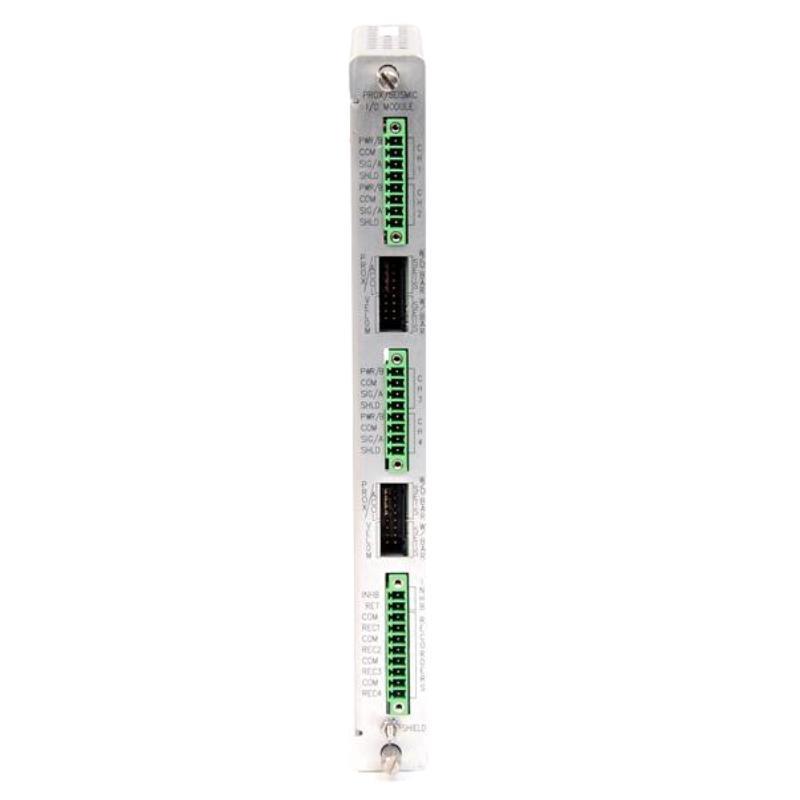

Bently Nevada 3500/42-01-00 176449-02+128229-01 Proximitor Seismic Monitor 12-Month Warranty

Frequently Asked Questions (FAQ)

What types of sensors are compatible with the 3500/42-01-00 module?
The monitor supports proximity probes, velocity transducers (Velomitor), and acceleration transducers (Seismoprobe).

How many channels does this monitor support simultaneously?
It supports up to four channels, which can be configured in pairs to perform different monitoring functions.

What kind of outputs does the module provide for data logging?
The module provides +4 to +20 mA proportional recorder outputs for each channel and coaxial buffered outputs.

What is the sensitivity range for velocity measurements?
Velocity sensitivity can be configured as 20 mV/(mm/s), 5.8 mV/(mm/s), or 4 mV/(mm/s) peak.

What alarm configurations are supported by the monitor?
The system supports programmable alert and danger alarm setpoints for each static value, with configurable delay times.

Can I use the monitor in hazardous environments?
Yes, it has ATEX, IECEx, and CSA certifications for use in Class I Division 2 and Zone 2 hazardous areas.

What environmental conditions can the module withstand?
The operating range is -30°C to +65°C (with standard I/O), and it can be stored between -40°C and +85°C.

Is the monitor affected by short circuits in output wiring?
No, the recorder and buffered outputs are short-circuit protected and do not affect normal operation.
