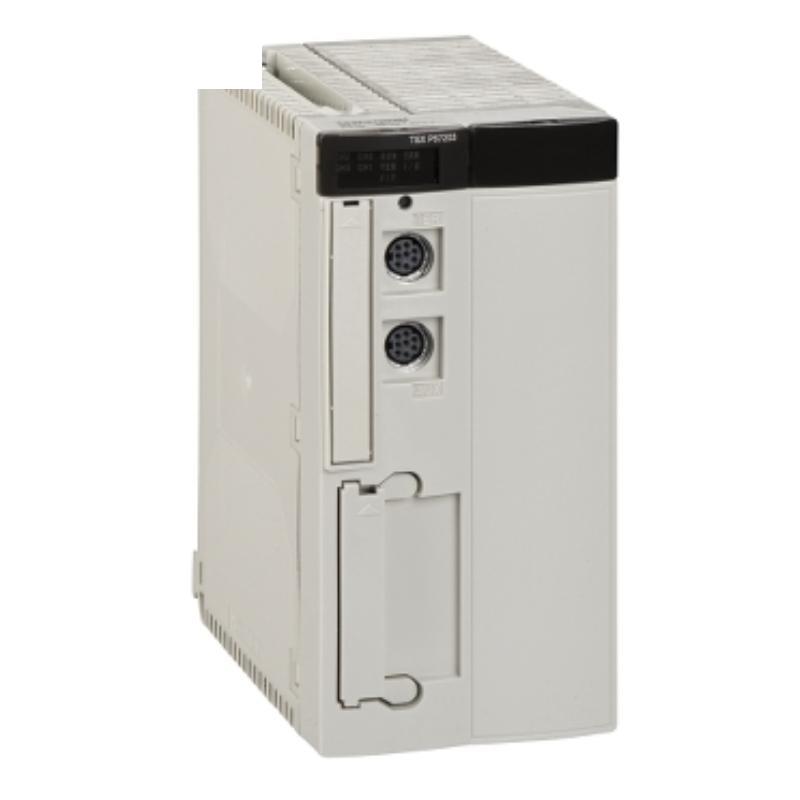

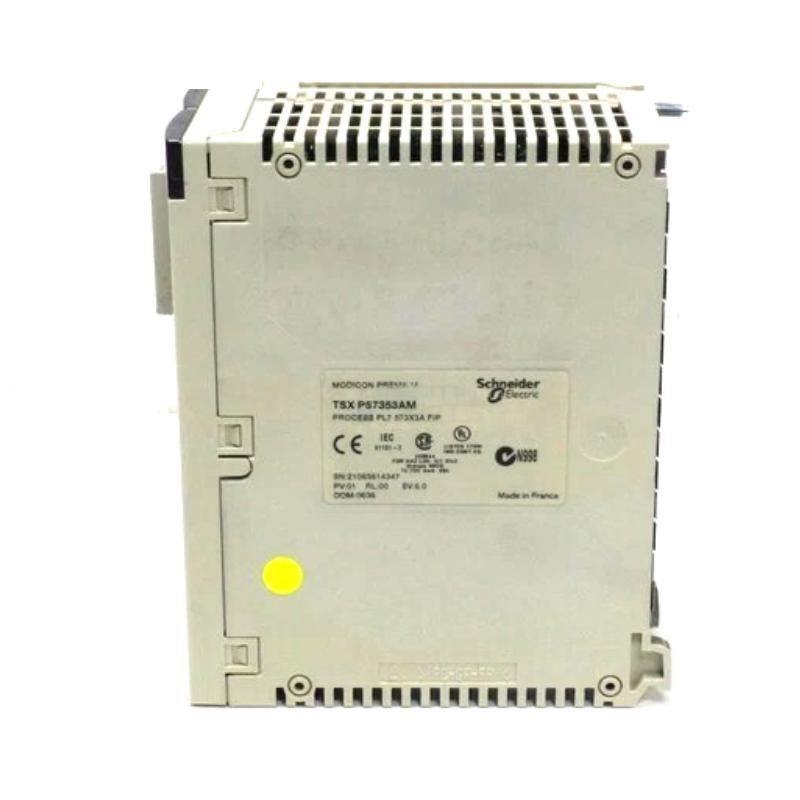

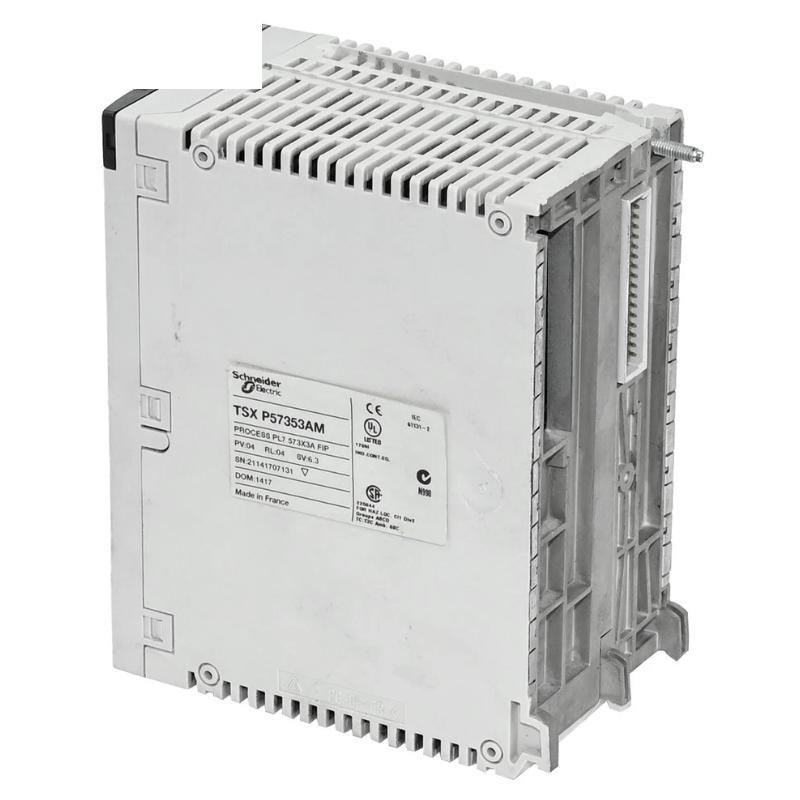

Schneider TSXP57353AM Double Format PL7 Processor New In Stock

Frequently Asked Questions (FAQs)

What is the main difference between using the processor with and without a PCMCIA card?
Using a PCMCIA card provides additional program and data memory, improving floating-point instruction execution times and increasing total storage capacity.

How many I/O points can the TSXP57353AM processor handle?
It can handle up to 1024 discrete I/O points and 128 analog I/O points.

What types of fieldbus communication modules are supported?
The processor supports 2 fieldbus modules (1 if CANopen is used), 8 AS-Interface bus modules, and 1 CANopen module.

Does the TSXP57353AM support event-driven tasks?
Yes, it supports up to 64 event tasks in addition to 1 master and 1 fast task.

What are the system overhead values for fast and master tasks?
The system overhead is 0.29 ms for the fast task and 1.15 ms for the master task.

What are the maximum object areas for internal and constant data?
The processor supports 16384 internal bits (%Mi), 30.5 internal words (%MWi), and 32 constant words (%KWi).

What kind of environment is this processor rated for?
It operates from 0 to 60 °C with 10–95% relative humidity (non-condensing) and up to 2000 m altitude. It’s also rated for IP20 protection with pollution degree 2.

Is the TSXP57353AM certified for marine or hazardous location applications?
Yes, it holds certifications from DNV, LR, BV, GL, RMRS, ABS, and RINA, and complies with CSA Class I Division 2 hazardous location standards.
