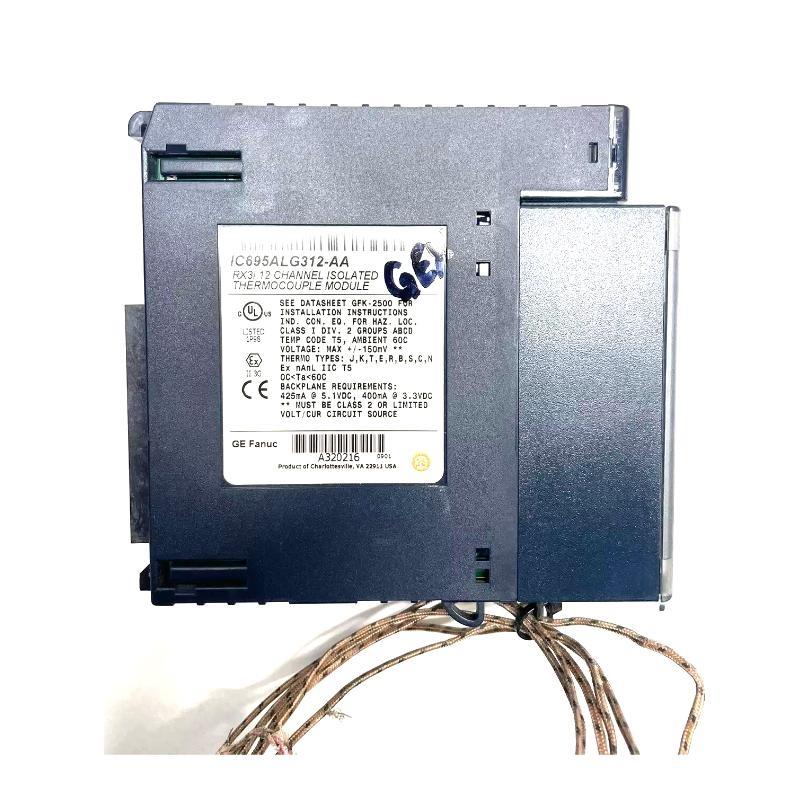

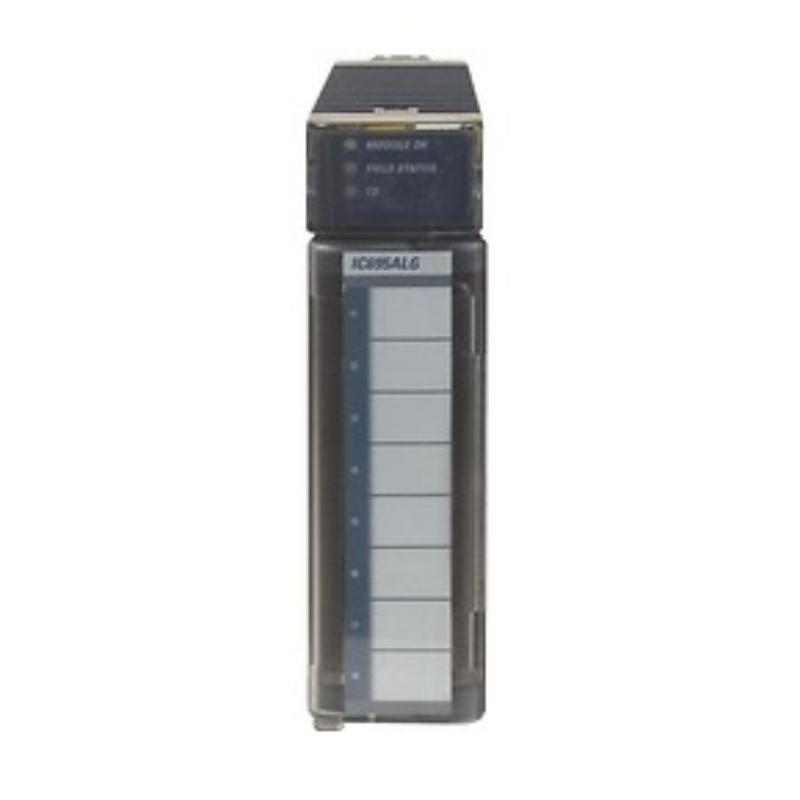

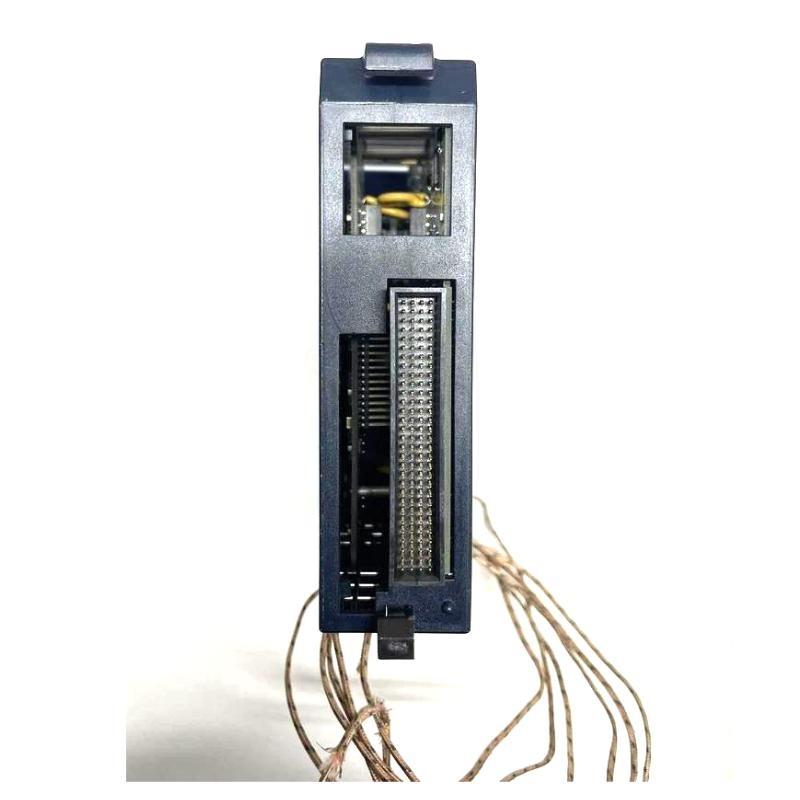

Name: GE IC695ALG312 PACSystems RX3i Isolated Thermocouple Input Module 100% New
Brand: GE Fanuc PLC
SKU: 7438
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IC695ALG312 PACSystems RX3i Isolated Thermocouple Input Module 100% New

Brand：GE Fanuc

Item No.：IC695ALG312

Product Type：Isolated Thermocouple Input Module

Product Origin：USA

Dimensions：34 x 145 x 140 mm

Weight：0.41 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What types of thermocouples are supported by the IC695ALG312?
The module supports J, K, T, E, R, S, B, N, and C type thermocouples.

Can I configure individual channels with different thermocouple types?
Yes, each of the 12 channels can be individually configured with a specific thermocouple type or voltage input.

Is the module hot-swappable during operation?
Yes, the IC695ALG312 supports Removal and Insertion Under Power (RIUP), allowing hot-swapping.

What is the resolution range for this module?
Resolution varies based on filter settings and input type, ranging from 11.5 to 16 effective bits.

How does the module perform cold junction compensation?
It uses external CJC sensors (IC695ACC600) installed on the terminal block. You can configure compensation from none, CJC1, CJC2, or both.

What happens if a thermocouple wire breaks or disconnects?
The module detects open wire conditions and can report the fault via diagnostics and fault tables.

Are there onboard filters to reduce signal noise?
Yes, the module supports programmable notch filters with selectable frequencies (2.3 Hz to 28 Hz).

Does the module support diagnostic or alarm signaling to the CPU?
Yes, it provides configurable diagnostics, fault logging, and even interrupts to handle alarm events per channel.
