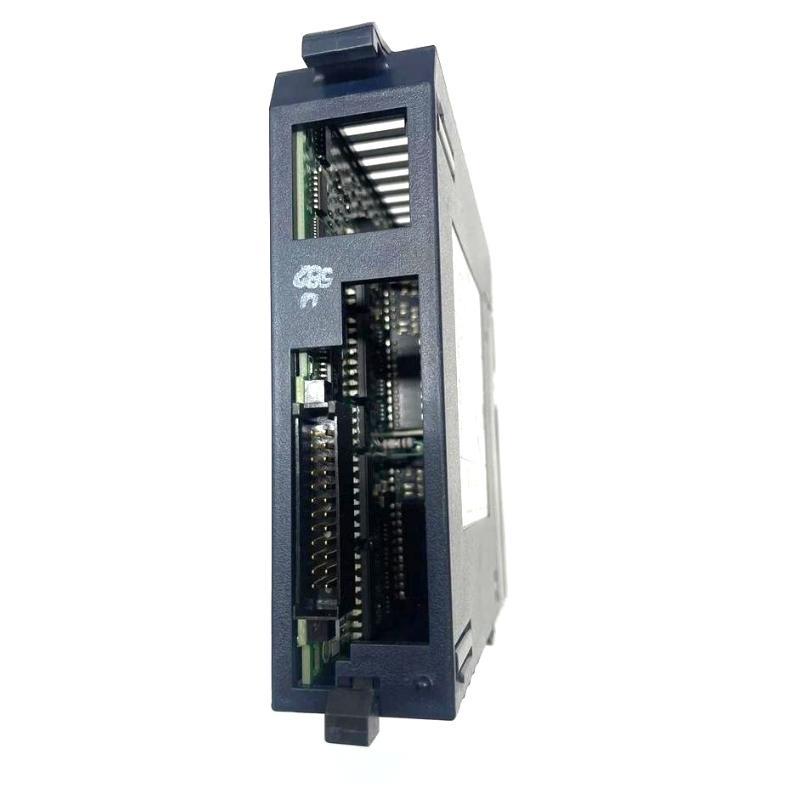

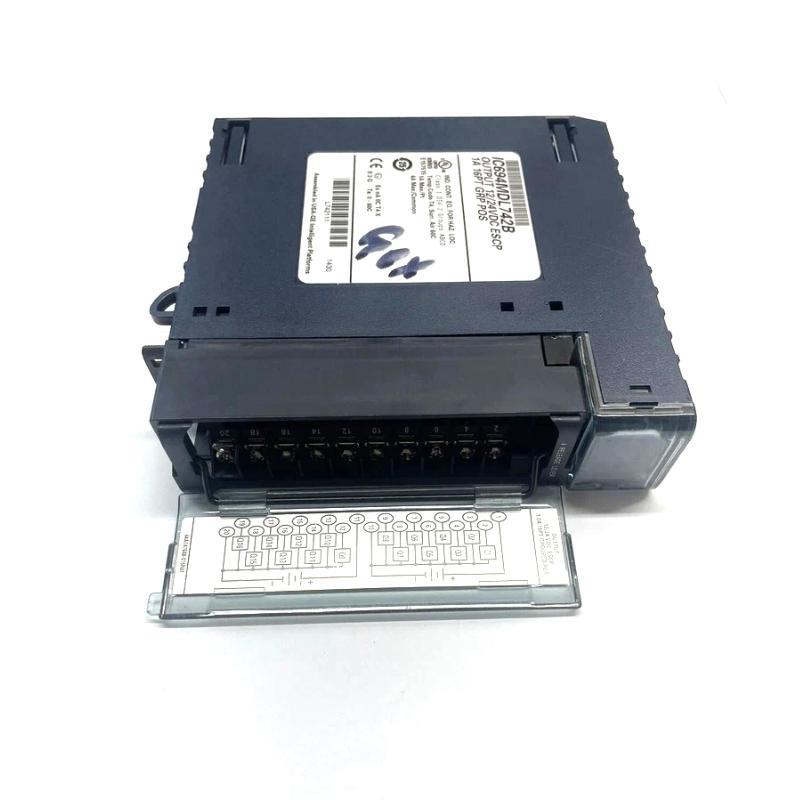

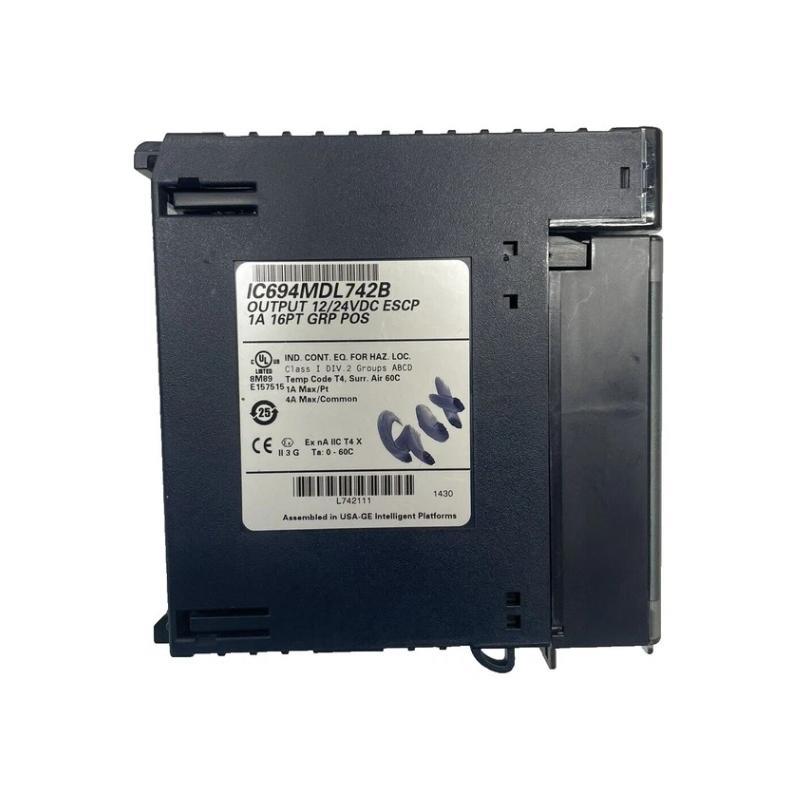

Name: GE IC694MDL742B RX3i PACSystems DC Voltage Output Module 12-Month Warranty
Brand: GE Fanuc PLC
SKU: 7445
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IC694MDL742B RX3i PACSystems DC Voltage Output Module 12-Month Warranty

Brand：GE Fanuc

Item No.：IC694MDL742B

Product Type：DC Voltage Output Module

Product Origin：USA

Dimensions：34 x 145 x 140 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Import process is standardized, testing is supported, and after-sales service is guaranteed

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What type of loads is the IC694MDL742B suitable for?
The module supports loads such as motor starters, solenoids, and indicator lamps that require current-sourcing 12/24VDC outputs.

How is overcurrent protection achieved in this module?
The module includes two internal Electronic Short Circuit Protection circuits that disable the output group upon detecting a short.

Can the module operate with both 12V and 24V DC systems?
Yes, the module supports a voltage range of 12 to 24 VDC with tolerance from +20% to -15%.

How is an ESCP fault indicated?
When ESCP trips, a red LED labeled “F” on the module turns ON; individual point LEDs remain unaffected.

How do I reset a short circuit fault on this module?
Reset the ESCP fault by cycling the 12/24VDC user power supplied to the module.

Is the module isolated from the backplane and other components?
Yes, it features 250 VAC continuous (1500 VAC for 1 minute) isolation between the field and backplane/frame ground and between output groups.

What happens if total current per group exceeds the temperature-limited maximum?
Exceeding the maximum load per group (4A @ 50°C or 3A @ 60°C) may cause ESCP to activate or degrade performance.

Can this module be installed in any RX3i slot?
Yes, it is designed to be compatible with any standard I/O slot in an RX3i PACSystems rack.
