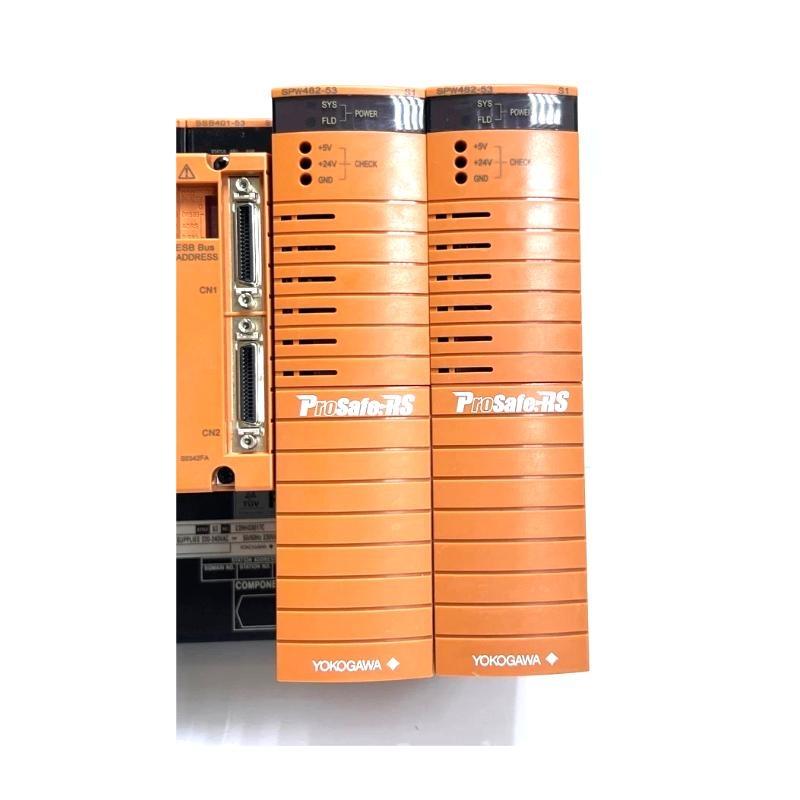

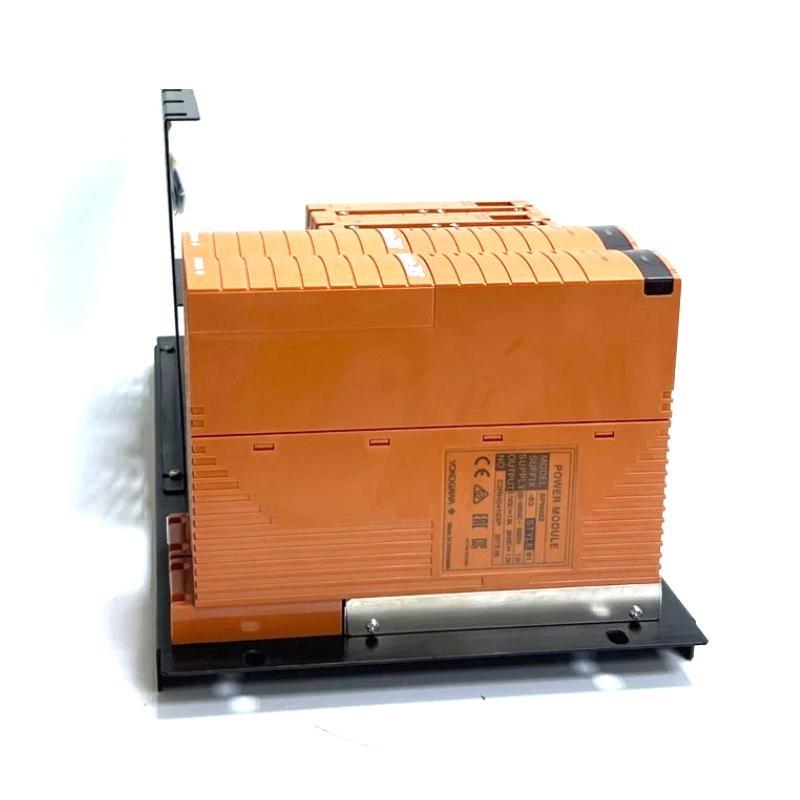

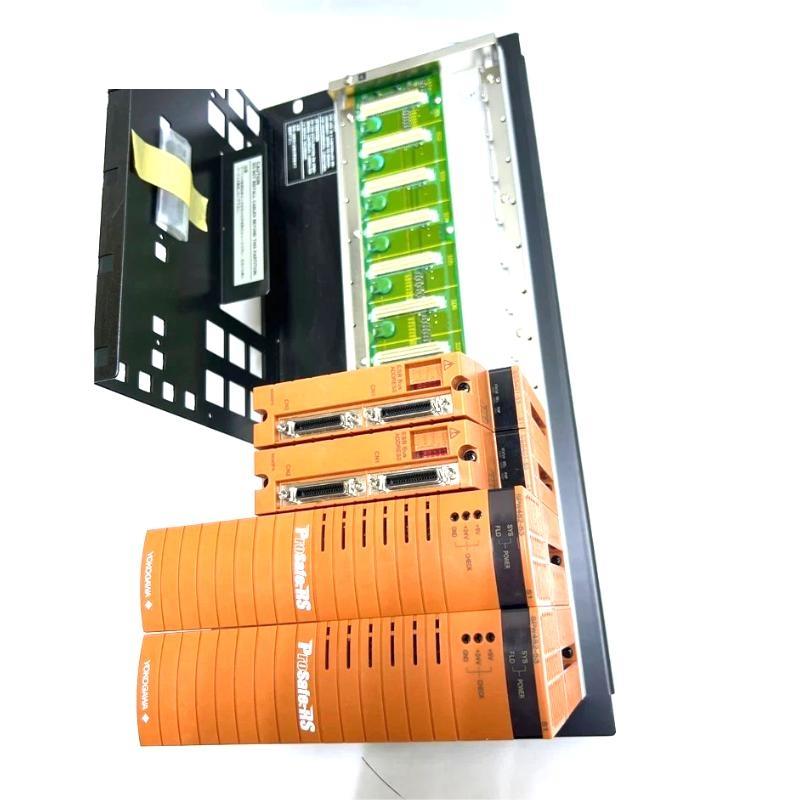

Name: Yokogawa SNB10D-225/CU2T Safety Node Unit (Rack Mountable Type) Trusted supplier
Brand: Yokogawa Electric
SKU: 7448
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa SNB10D-225/CU2T Safety Node Unit (Rack Mountable Type) Trusted supplier

Brand：Yokogawa

Item No.：SNB10D-225/CU2T

Product Type： E-mail [email protected] Mobile +8613950166376 Whatsapp +8613950166376 WeChat 13950166376

Manufacturer： Yokogawa

Product Origin：Japan

Dimensions：482.6 x 221.5 x 205 mm

Weight：5.9 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channels, complete test instructions, responsive service

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the main function of the SNB10D-225/CU2T Safety Node Unit?
The SNB10D-225/CU2T acts as an interface for transmitting analog and contact signals from the field to the safety control unit via the ESB bus, and also supplies power to the I/O modules.

What is the difference between the /CU2N and /CU2T options?
The /CU2T option includes a terminator for the ESB bus, while the /CU2N does not. /CU2T is typically used for terminating the bus at the end of the communication line.

How many SNB10D units can be connected to one safety control unit?
Up to 13 SNB10D units can be connected when using the SEC402 ESB bus coupler module, or up to 9 units when using the SEC401.

What are the installation requirements for this unit?
The SNB10D-225/CU2T must be rack mounted using four M5 screws and insulating bushings. It should be installed in a keyed metallic cabinet to comply with safety, EMC, and explosion protection standards.

What is the operating temperature range of the SNB10D-225/CU2T?
The operating temperature range is from -20°C to +70°C, complying with ISA Standard G3.

What kind of power supply does this model support?
This model supports 220 to 240 V AC power supply with dual-redundant power configuration.

Is a dummy cover required for unused I/O slots?
Yes, any unused I/O module slots must be covered using the SDCV01 dummy cover to ensure proper operation and protection.

What is the total weight and physical size of the unit?
The SNB10D-225/CU2T weighs approximately 5.9 kg and has dimensions of 482.6 mm (W) × 221.5 mm (H) × 205 mm (D).
