Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

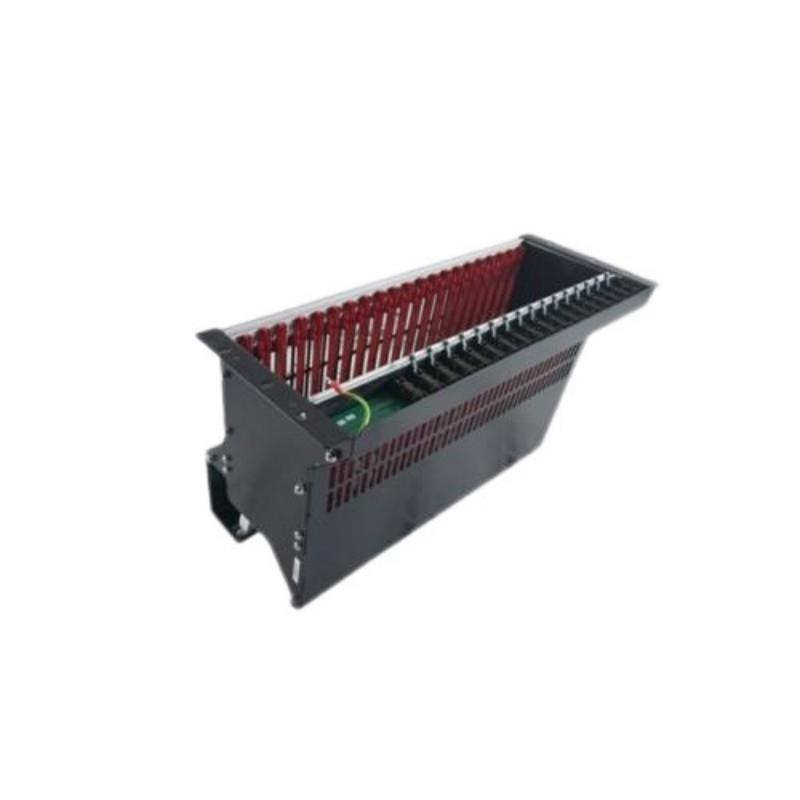

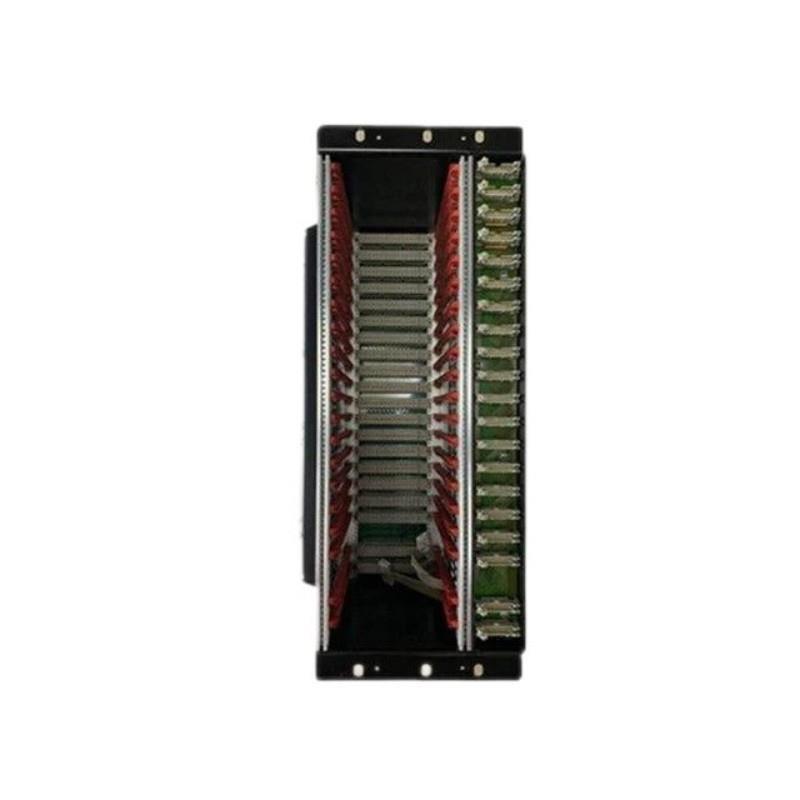

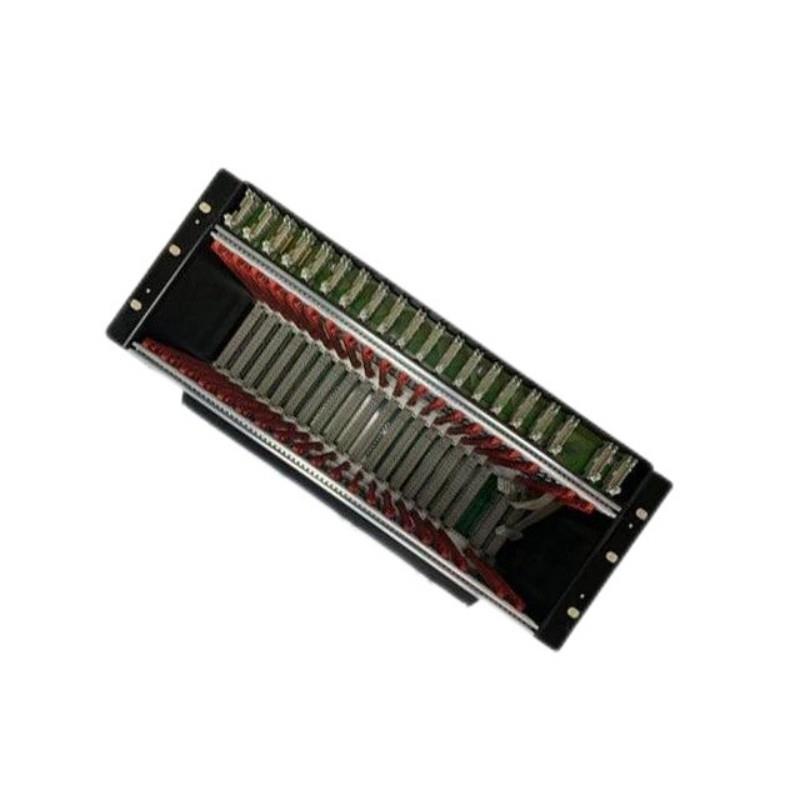

Honeywell FC-IOCHAS-0002R A.R.T. Chassis for Redundant I/O CC 12-Month Warranty

Brand：Honeywell

Item No.：FC-IOCHAS-0002R

Product Type：A.R.T. Chassis for Redundant I/O CC

Product Origin：USA

Dimensions：222.4 x 482.6 x 280 mm

Weight：8.7 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original source of goods, data supports testing content, and after-sales processing is efficient

The inventory covers multiple brands and series, and supports fast delivery. Welcome to call for negotiation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary purpose of the FC-IOCHAS-0002R chassis?
It is used to house up to 9 pairs of redundant I/O modules within Honeywell Safety Manager systems.

How many slots are available in the chassis and how are they utilized?
The chassis contains 21 slots. Slots 1–18 are used for I/O modules (in pairs), slot 19 houses the I/O bus board, and slots 20–21 hold the IO-0002 extenders.

Is the chassis compatible with all Honeywell Safety Manager modules?
It supports IO modules designed for the Safety Manager A.R.T. system using the IO-0002 extender interface.

What power configurations are supported by the chassis?
Both internal and external power connections are supported via the PDC-IOSET cable system.

Can this chassis be used in hazardous environments?
Yes, it is certified by CE, UL, CSA, TUV, and FM for industrial use, including safety-critical applications.

How is the address of the chassis defined?
Addressing is set using jumpers CA0 through CA3 located on the backplane.

Is the cover plate removable for maintenance access?
Yes, the front cover can be swung upward after unlocking the side slides; the rear cover can be removed by turning a half-turn locking screw.

What is the difference between IOCHAS-0002R and IOCHAS-0002S?
IOCHAS-0002R supports redundant I/O modules, while IOCHAS-0002S is for non-redundant configurations.
