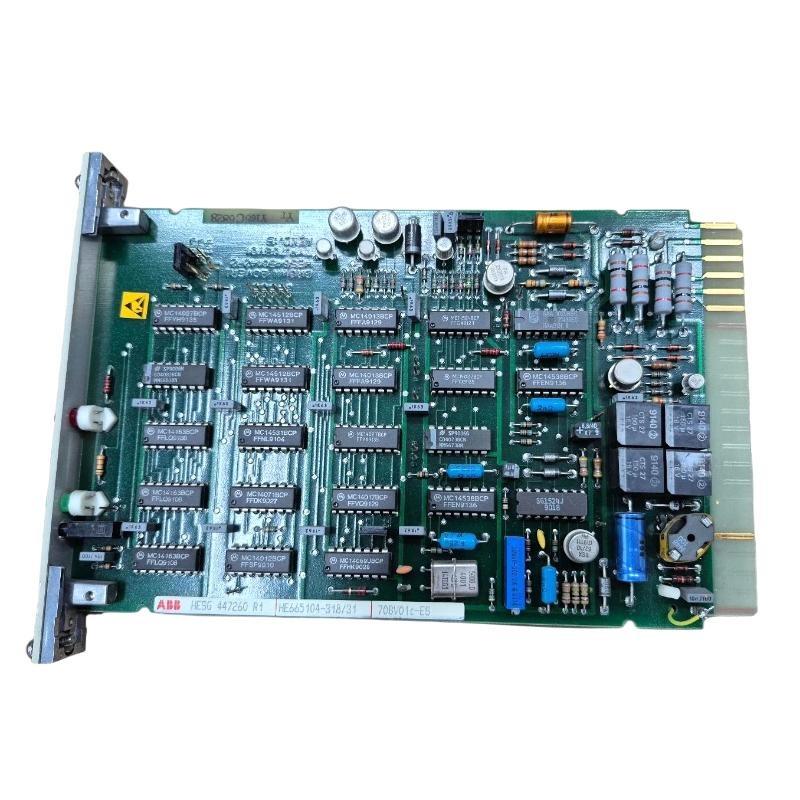

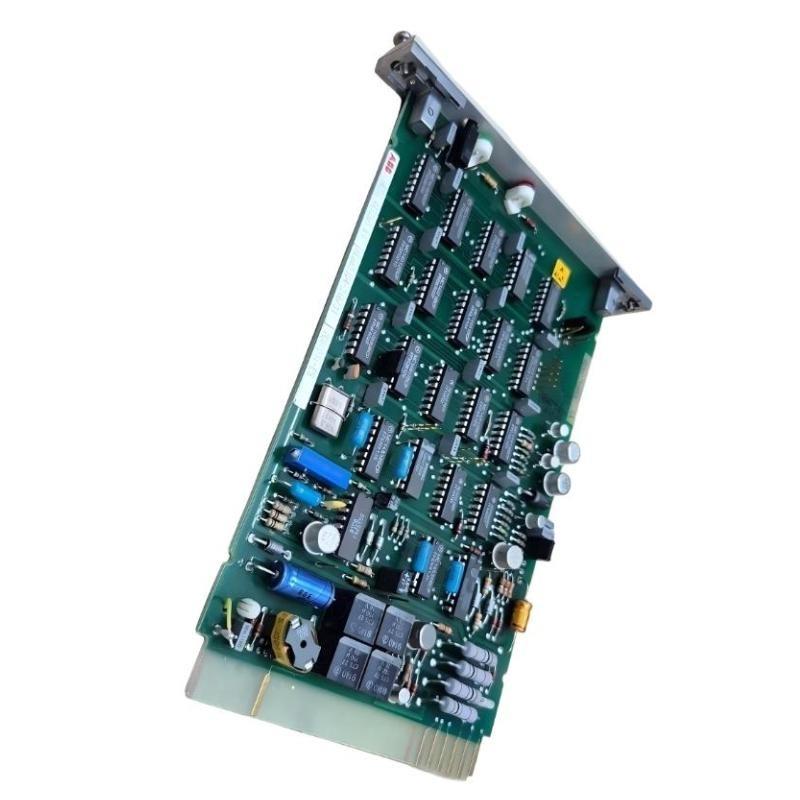

ABB 70BV01C-ES HESG447260R1 Bus Traffic Director Circuit Board Original

FAQ

What role does the Bus Traffic Director Circuit Board perform in the system?
It controls data flow across the backplane to ensure all modules communicate without conflict.

Does this board manage bus priorities between different modules?
Yes, it assigns priorities and manages traffic scheduling to prevent data collisions.

Is additional configuration required after installation?
No user configuration is required; the board operates automatically once installed.

How does the module improve system stability?
It actively monitors communication timing and regulates access to the bus to avoid congestion.

Can this board detect abnormal bus conditions?
Yes, built-in diagnostics monitor bus status and can signal error conditions.

What happens if the board fails while running?
The system will show communication faults, allowing quick identification of the issue.

Is the board sensitive to electrical interference?
It is designed with protection circuits to maintain reliable operation in noisy environments.

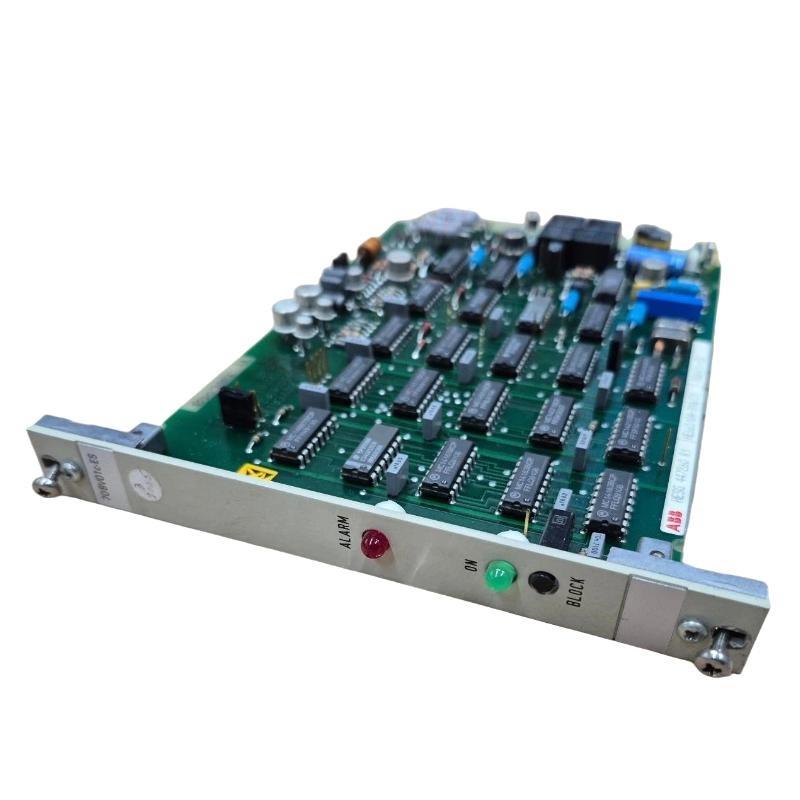

How can technicians verify correct operation on-site?
Status LEDs and system diagnostics indicate whether the board is functioning normally.
