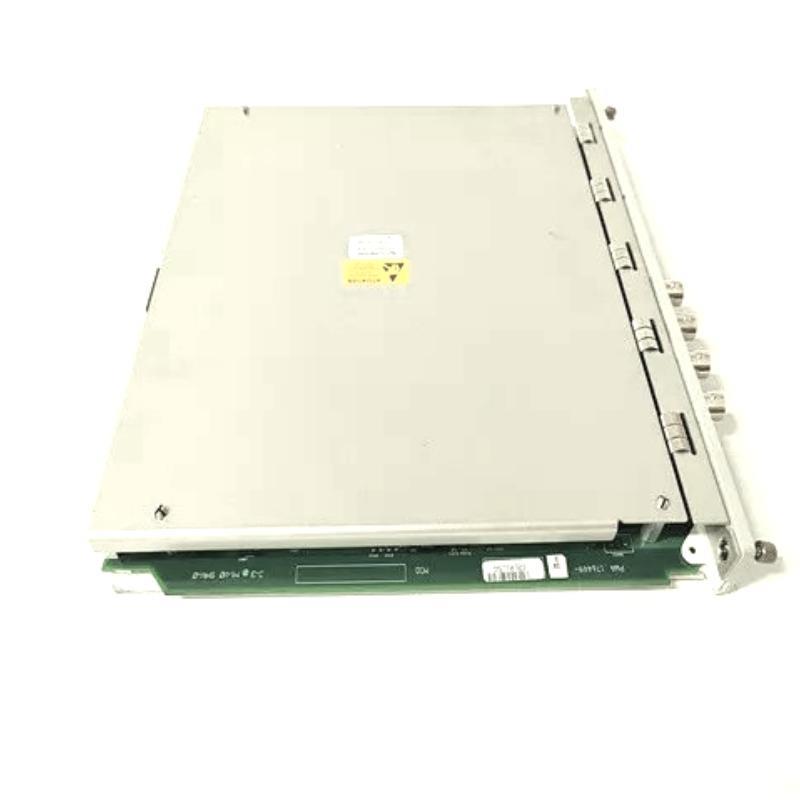

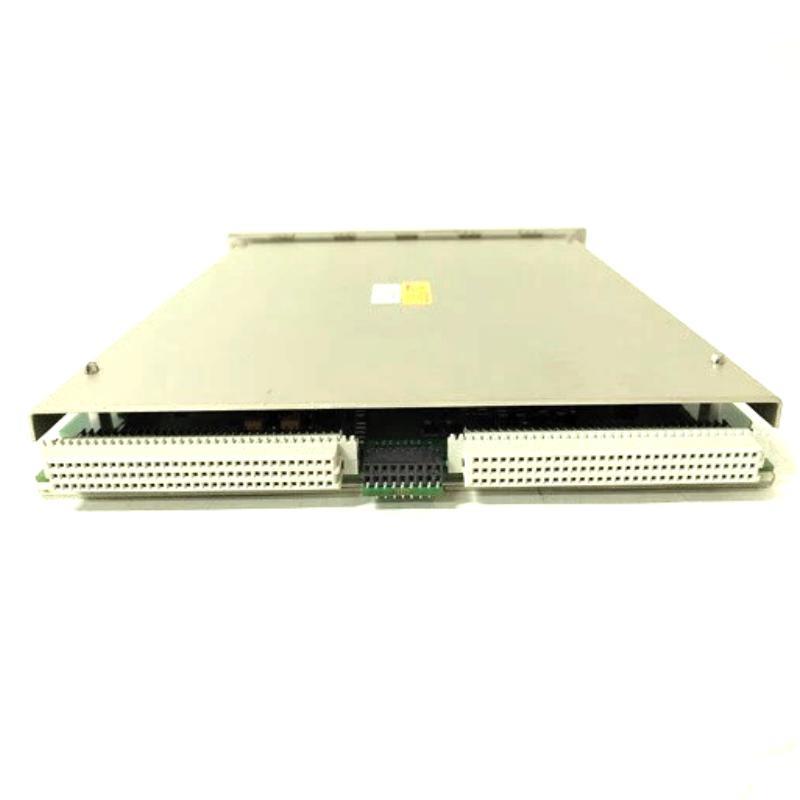

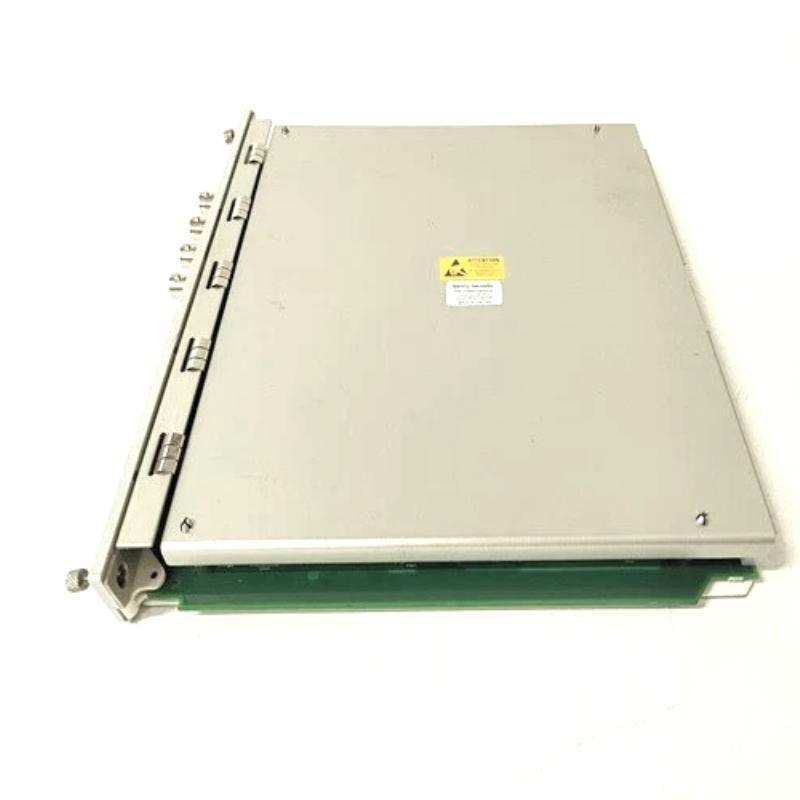

Bently Nevada 3500/45-01-00 176449-04 Position Monitor 100% New

Frequently Asked Questions (FAQ)

What is the primary function of the 3500/45 Position Monitor?
It monitors position-related parameters like thrust, differential expansion, and valve position to protect rotating machinery.

Can the 3500/45 work with both AC and DC LVDTs?
Yes, it supports both AC and DC Linear Variable Differential Transformers for case and valve position measurements.

How many channels does the 3500/45 module have?
It has 4 channels, organized into two configurable channel pairs.

What kind of alarms can be set on the 3500/45?
Alert and danger setpoints can be configured independently for each measured variable with programmable time delays.

What output signal does the monitor provide for external recording?
It provides isolated 4–20 mA analog outputs for each active channel (excluding ramp and CIDE measurements).

Is the 3500/45 certified for hazardous area installations?
Yes, it holds ATEX, IECEx, cNRTLus, and marine certifications, including Class I Division 2 and Zone 2 ratings.

Can the monitor operate in extreme temperature environments?
Yes, it operates between -30°C and +65°C and can be stored between -40°C and +85°C.

How is the module configured for different transducer inputs?
Configuration is done using 3500 Rack Configuration Software, specifying the input type and measurement function for each channel.
