Product Introduction

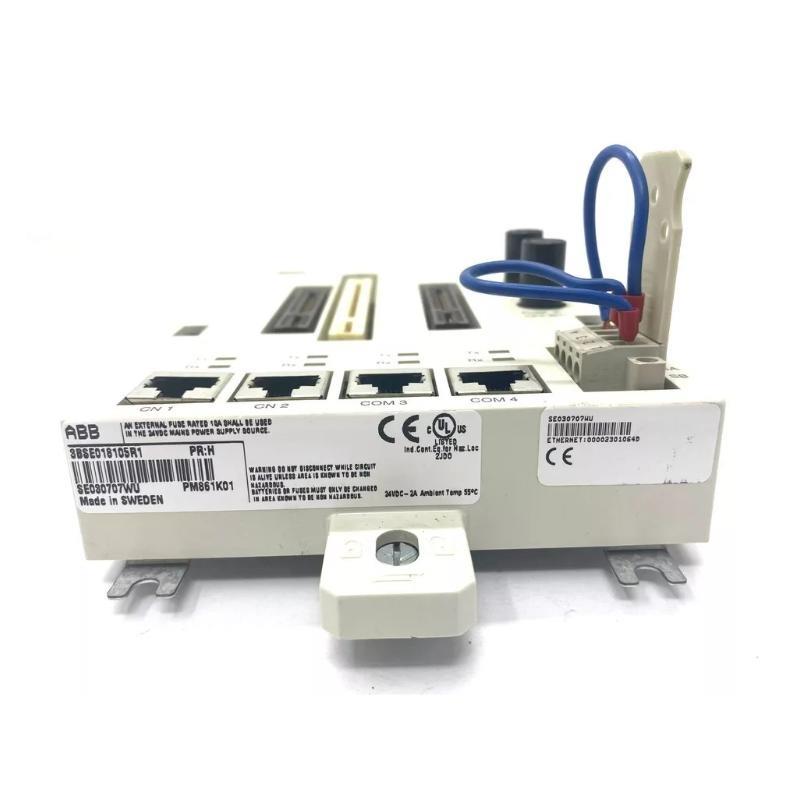

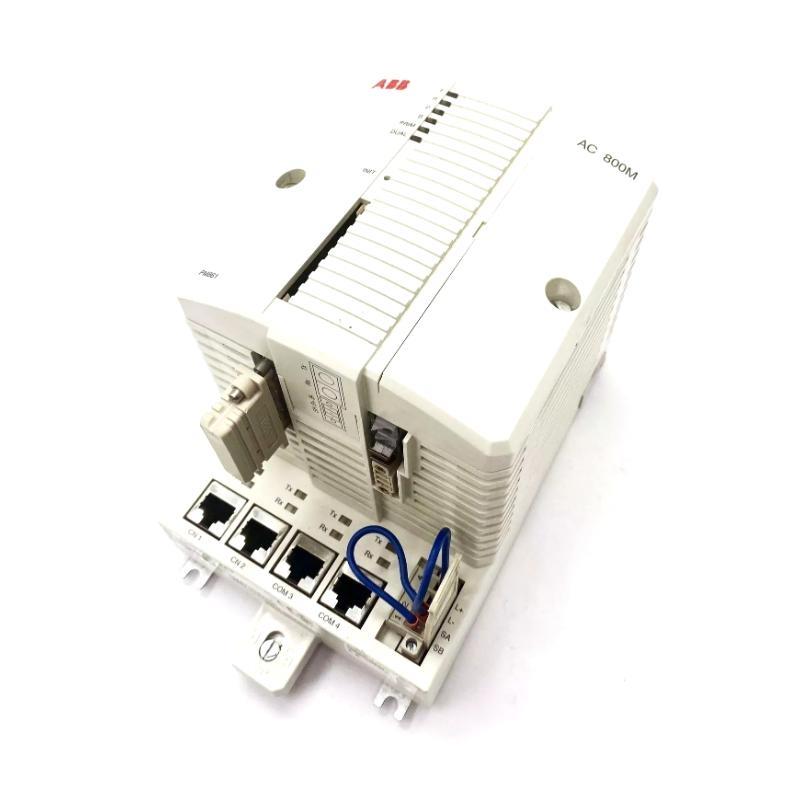

ABB PM861K01 3BSE018105R1 System 800xA Processor Unit Kit New In Stock

Brand：ABB

Item No.：PM861K01 3BSE018105R1

Product Type：Processor Unit Kit

Product Origin：Sweden (SE)

Dimensions：203 × 157 × 135 mm

Weight：1.14 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the purpose of the TB850, TB807, and TB852 terminators in the PM861K01 kit?
These terminators are used for proper electrical termination of the CEX-Bus, ModuleBus, and RCU-Link to ensure signal integrity and reliable communication.

Can the PM861K01 operate in a redundant CPU configuration?
Yes, it fully supports redundancy via the RCU-Link. Two PM861 units can operate in a primary-backup mode with automatic switchover.

Is the PM861K01 suitable for safety-critical applications?
The PM861 itself is not SIL-certified. For safety-critical (SIL2/SIL3) applications, use PM865 or PM865/SM810 combination.

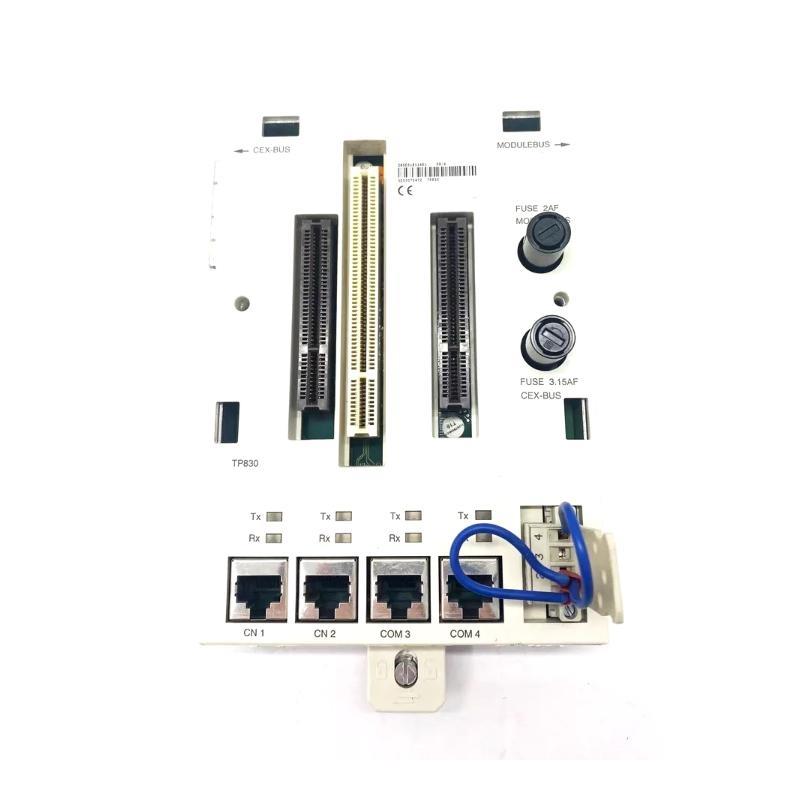

Can the included TP830 baseplate be used for other CPU types?
Yes, TP830 is compatible with other PM8xx series CPUs, including PM860, PM864, and PM865.

How do I connect S800 I/O modules to the PM861K01?
Connect S800 I/O modules directly to the Electrical ModuleBus on the TP830 baseplate using a ModuleBus cable with TB820 modems if needed.

What types of communication modules are supported on the CEX-Bus?
The CEX-Bus supports modules such as CI854 (PROFIBUS), CI860 (FF HSE), CI867 (Modbus TCP), and others.

What is the function of the INIT push button on the PM861?
The INIT button is used to reset the processor or initiate firmware download and recovery operations.

How is memory backed up in the PM861K01 system?
The system includes internal memory backup supported by an external battery via the TP830 baseplate to maintain RAM and RTC data during power loss.
