Name: ABB Bailey NTDI02 Infi 90 Digital I/O Termination Unit Original
Brand: ABB PLC
SKU: 7469
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

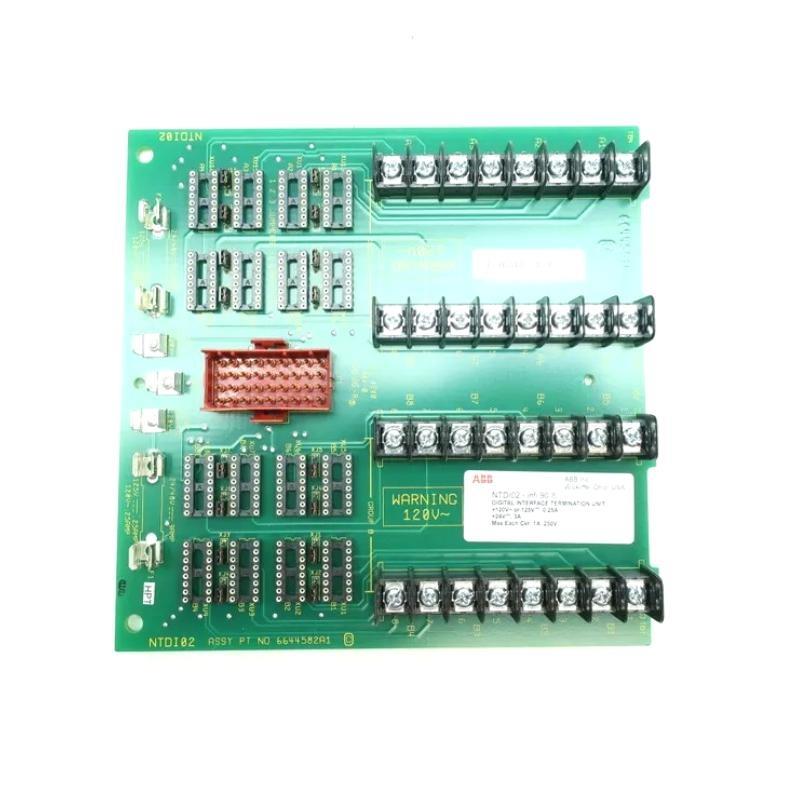

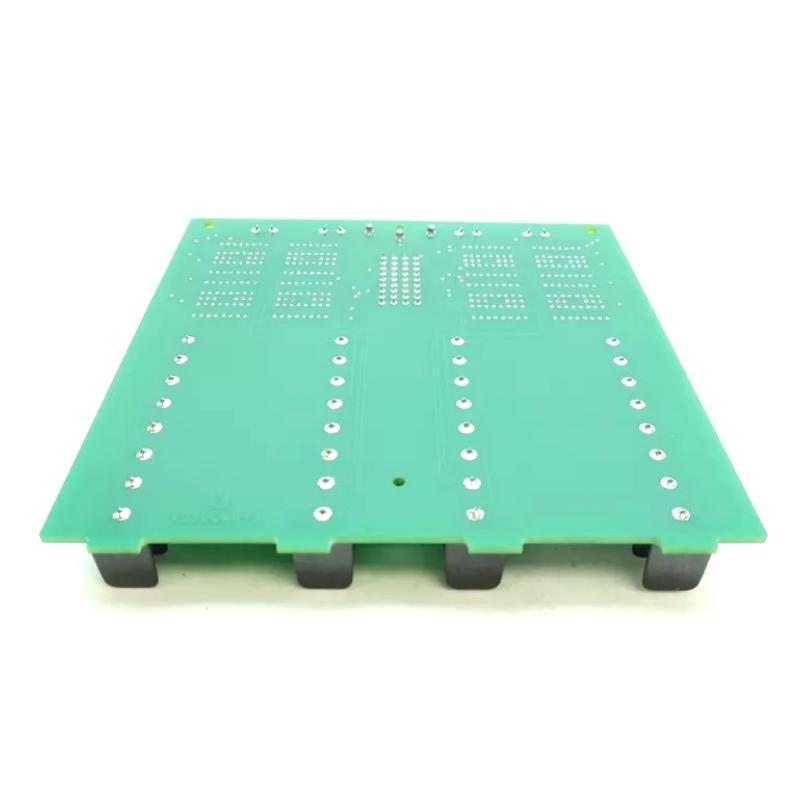

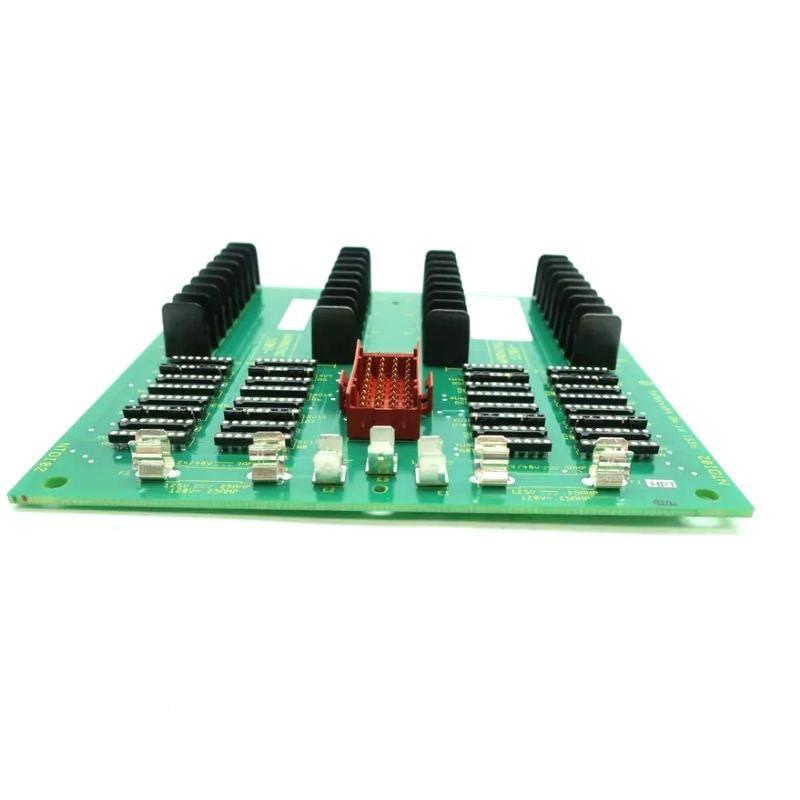

ABB Bailey NTDI02 Infi 90 Digital I/O Termination Unit Original

Brand：ABB Bailey

Item No.：NTDI02

Product Type：Digital I/O Termination Unit

Product Origin：Sweden (SE)

Dimensions：330 x 180 x 50 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The import process is standardized, testing is supported, and after-sales service is guaranteed

The stock volume is large, the series is diverse, and it is suitable for different working conditions. Please consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQs)

What is the maximum voltage the NTDI02 can handle?
The NTDI02 can handle a maximum voltage of 250 Vac.

How many input signals can the NTDI02 support?
The NTDI02 supports up to 16 input signals for various I/O modules.

What are the recommended power wiring configurations for NTDI02?
Power can be connected through E1 and E2 Faston connectors, with 12-14 AWG wire recommended.

How should the NTDI02 be mounted?
The NTDI02 mounts on a standard ABB field termination panel, securing with two screws.

Can the NTDI02 be used with older ABB systems?
Yes, the NTDI02 is compatible with INFI 90® OPEN and Symphony™ systems, providing backward compatibility.

What maintenance is required for the NTDI02?
Regular preventive maintenance, including cleaning and checking connections, is recommended every 12 months.

How do I replace a fuse in the NTDI02?
If a fuse blows, replace it with an equivalent rated fuse. Ensure power is turned off before replacing fuses.

Is the NTDI02 certified for use in hazardous environments?
It is certified for non-hazardous locations, with pending approval for use in hazardous locations (Class I; Division 2).
