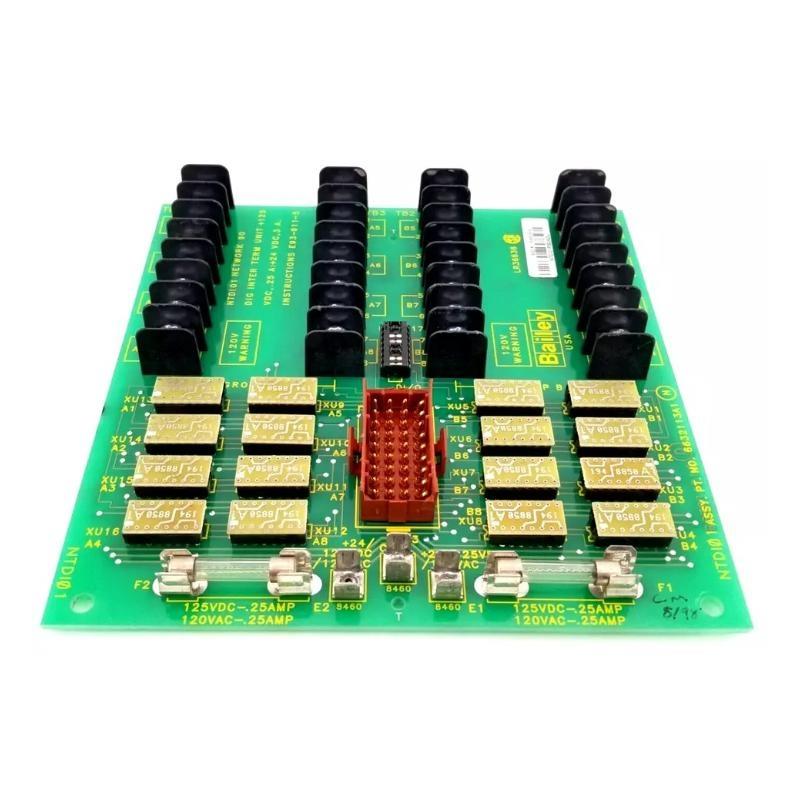

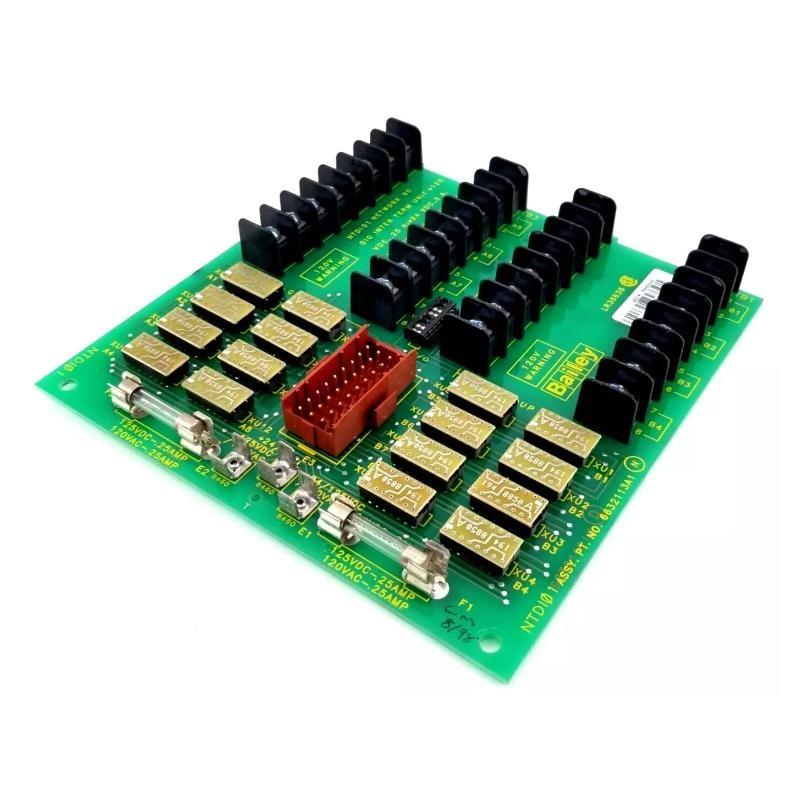

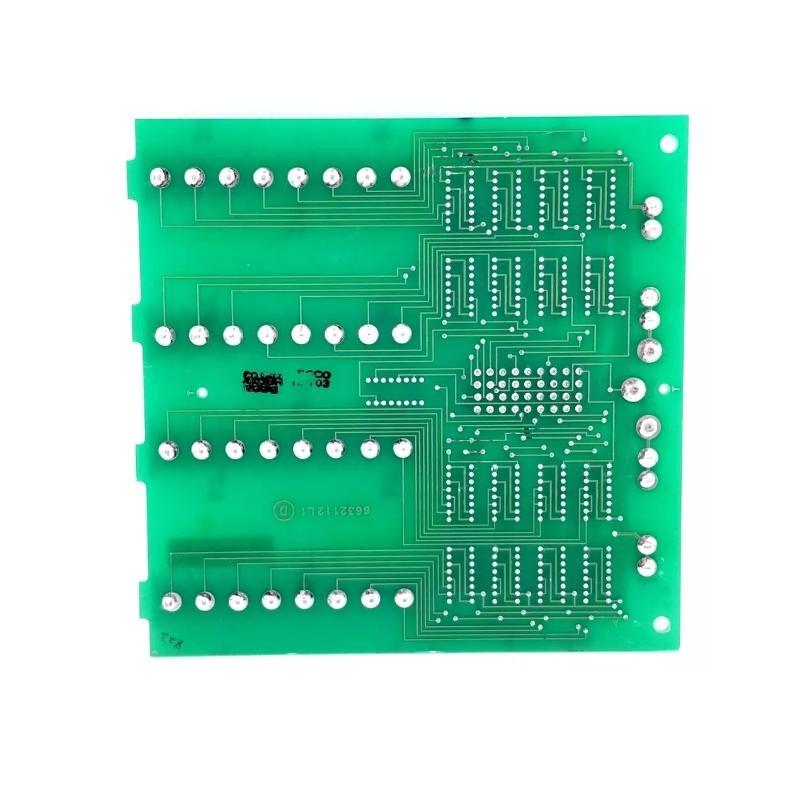

Name: ABB Bailey NTDI01 6632113A1 Infi 90 Digital I/O Termination Unit 30-Day Returns！
Brand: ABB PLC
SKU: 7473
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

ABB Bailey NTDI01 6632113A1 Infi 90 Digital I/O Termination Unit 30-Day Returns！

Brand：ABB Bailey

Item No.：NTDI01 6632113A1

Product Type：Digital I/O Termination Unit

Product Origin：Sweden (SE)

Dimensions：78.74 x 233.68 x 213.36 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular supply, testing instructions can be coordinated, and after-sales service continues to follow up

Ten thousand models are in stock, spot fast delivery, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the NTDI01 module?
The NTDI01 serves as a termination interface between field wiring and INFI 90 process I/O modules, allowing for digital or analog signal configuration.

How many I/O points can NTDI01 handle?
The NTDI01 supports up to 16 individual I/O signal connections, each configurable via dipshunt sockets.

Does NTDI01 contain active components?
No, it is a passive termination unit without active electronics, reducing failure risks.

Which cables are used to connect NTDI01 to the system?
The NTDI01 connects to INFI 90 master/slave modules using the NKTU01 termination cable via socket P1.

What types of signals are supported?
It supports both digital and analog I/O signals, including AC/DC voltage and current configurations depending on the connected module.

What fuse ratings are used for protection?
For 24VDC, a 3A fuse (P/N 194776A13001) is used; for 125VDC or 120VAC, a 0.25A fuse (P/N 194776A12500) is applied.

Is the NTDI01 compatible with analog modules like IMASO01?
Yes, it is compatible with multiple analog modules including IMASO01, and supports both current and voltage analog signals.

Can the NTDI01 operate in harsh environments?
The NTDI01 is designed for industrial environments with non-corrosive air, and can operate at altitudes up to 3000 meters with humidity up to 95% (non-condensing).
