Product Introduction

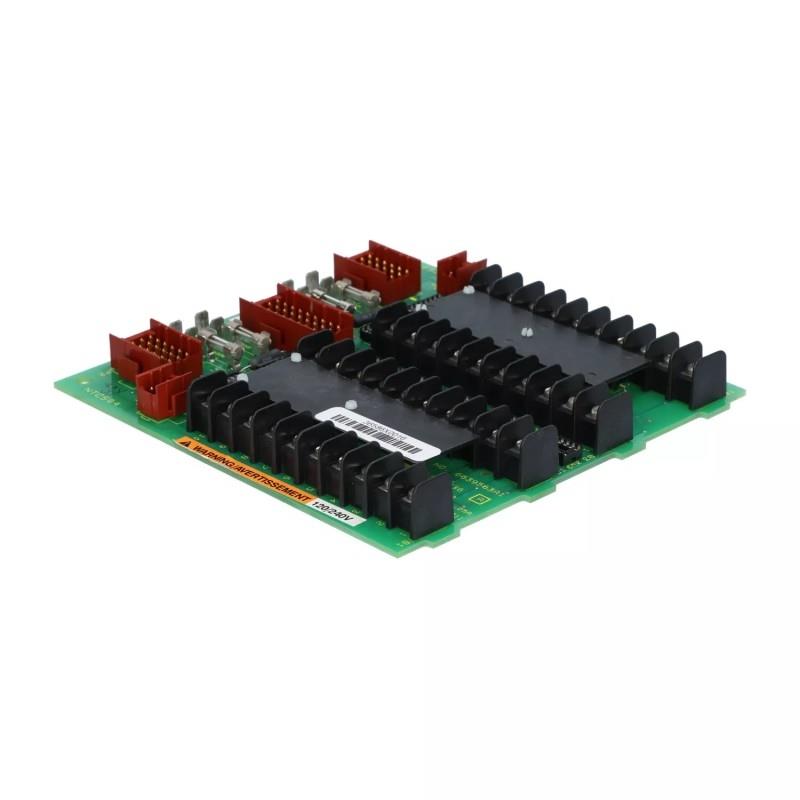

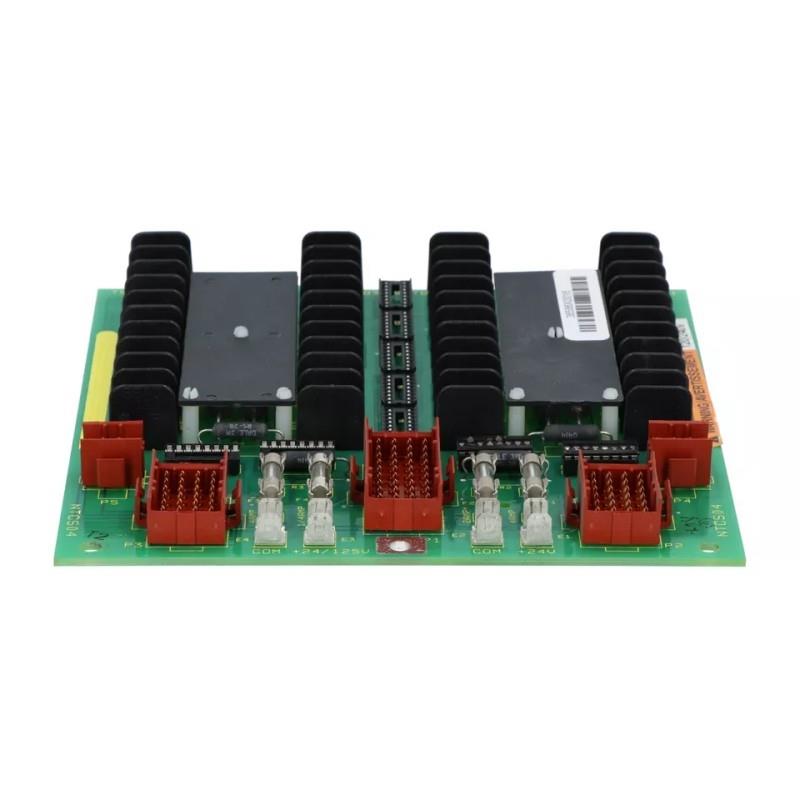

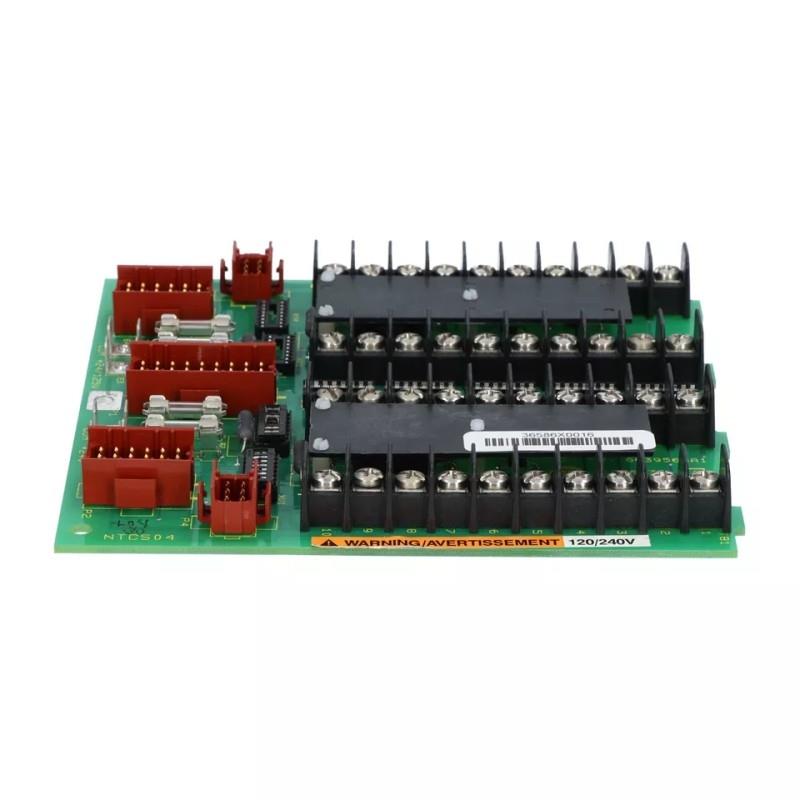

ABB Bailey NTCS04 Infi 90 Control I/O Termination Unit Trusted supplier

Brand：ABB Bailey

Item No.：NTCS04

Product Type：Control I/O Termination Unit

Product Origin：Sweden (SE)

Dimensions：233.68 x 78.74 x 213.36 mm

Weight：0.499 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary function of the NTCS04 unit?
It acts as a termination point for field I/O signals and facilitates connection to INFI 90 control modules and stations.

How many analog and digital signals can the NTCS04 handle?
It supports 4 analog inputs, 3 digital inputs, 2 analog outputs, and 4 digital outputs.

What types of analog signal configurations are supported?
The NTCS04 supports both single-ended and differential 1–5 VDC signals, and 4–20 mADC current inputs, either system or externally powered.

What are the DIPSHUNT sockets used for?
DIPSHUNT sockets are used to configure the input/output types, power modes, and default output behaviors.

Is the NTCS04 hot-swappable?
No, it is strongly advised to power down the cabinet before making changes to avoid damage or hazards.

What environment is suitable for the NTCS04?
The unit operates between 0°C and 70°C, with up to 95% non-condensing humidity, and requires a noncorrosive atmosphere.

Can the NTCS04 be daisy-chained with other termination units?
Yes, it supports daisy-chaining with NTCS02/04 and NTRL series units through serial connectors P4 and P5.

Does the unit include built-in surge protection?
Yes, it is designed to meet the IEEE-472-1974 Surge Withstand Capability Test.
