Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

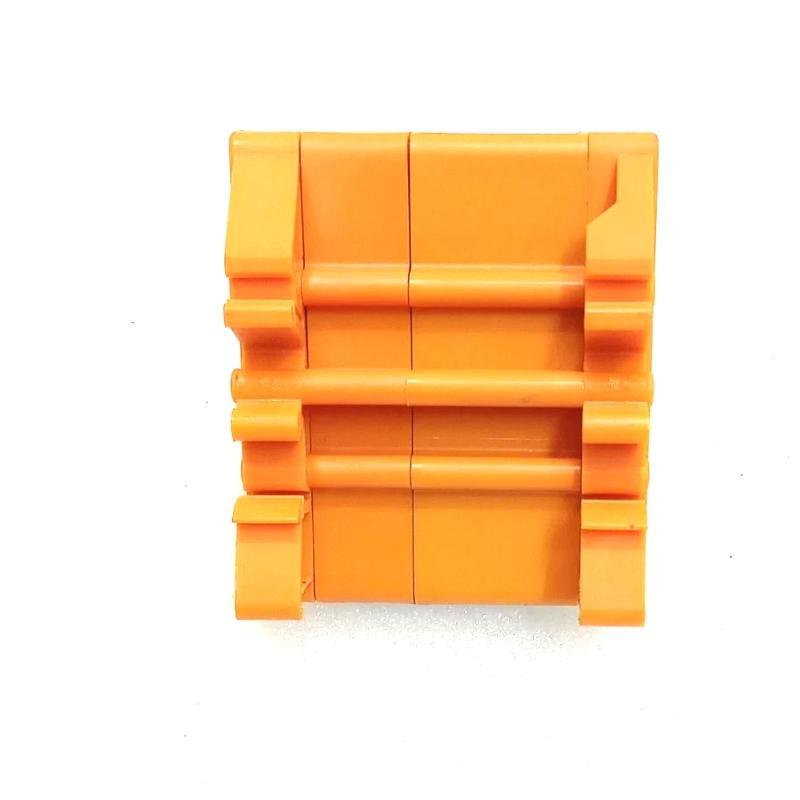

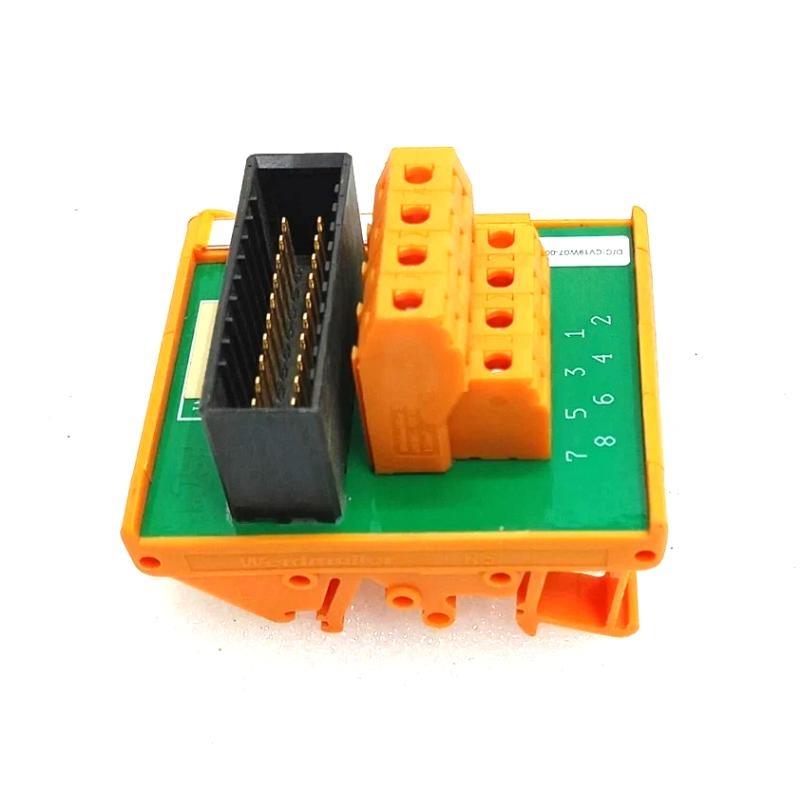

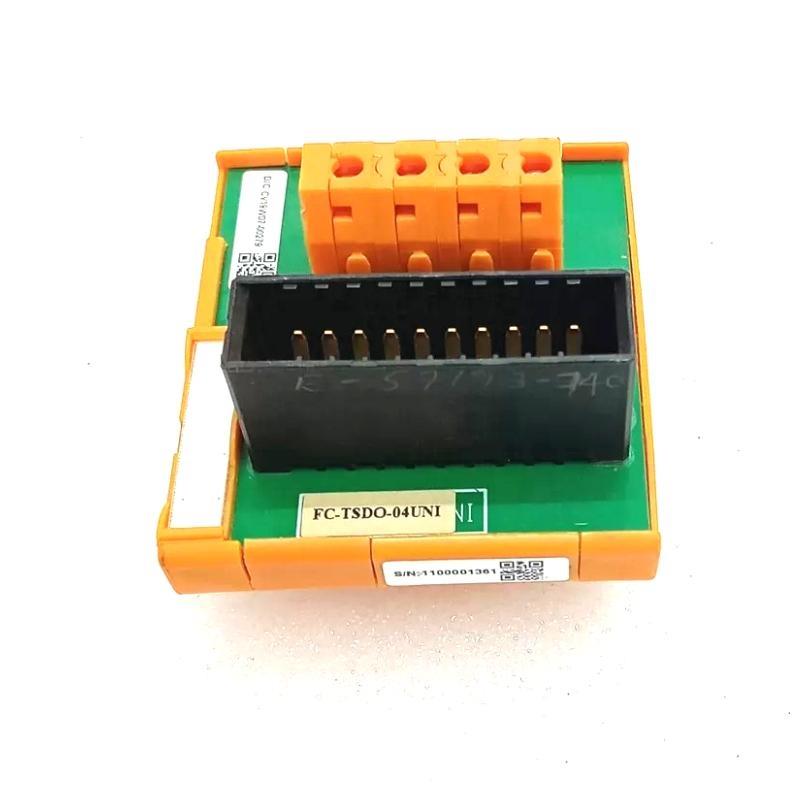

Honeywell FC-TSDO-04UNI Safety Manager System Module Unbelievable Prices!

Brand：Honeywell

Item No.：FC-TSDO-04UNI

Product Type：Safety Manager System Module

Product Origin：USA

Dimensions：60 × 70 × 54 mm

Weight：0.23 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Please contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many output channels are available on the FC-TSDO-04UNI module?
The FC-TSDO-04UNI module provides 4 digital output channels.

What is the maximum voltage rating for this module?
The module supports up to 50 VDC under IEC 1010 overvoltage category 3 and up to 150 VDC under category 2.

What is the continuous current capacity for each channel?
Each channel can carry up to 2 A continuously. The actual maximum current is determined by the output module connected.

What type of rail mounting is supported?
The module is designed for DIN EN rail mounting, compatible with TS32 and TS35 × 7.5 profiles.

What is the standard wire size and termination specification for field wiring?
The screw terminals accept wires up to 2.5 mm² (AWG 14), with a required strip length of 7 mm and tightening torque of 0.5 Nm.

Is the FC-TSDO-04UNI module certified for safety standards?
Yes, it carries certifications from CE, TUV, UL, CSA, and FM.

What are the physical dimensions and weight of the module?
The dimensions are 60 mm (L) × 70 mm (W) × 54 mm (H), and the module weighs approximately 0.23 kg.

Can this module interface directly with Safety Manager output modules?
Yes, it connects via system interconnection cable SICC-0001/Lx to output modules like SDO-04x or SDOL-04x.
