Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

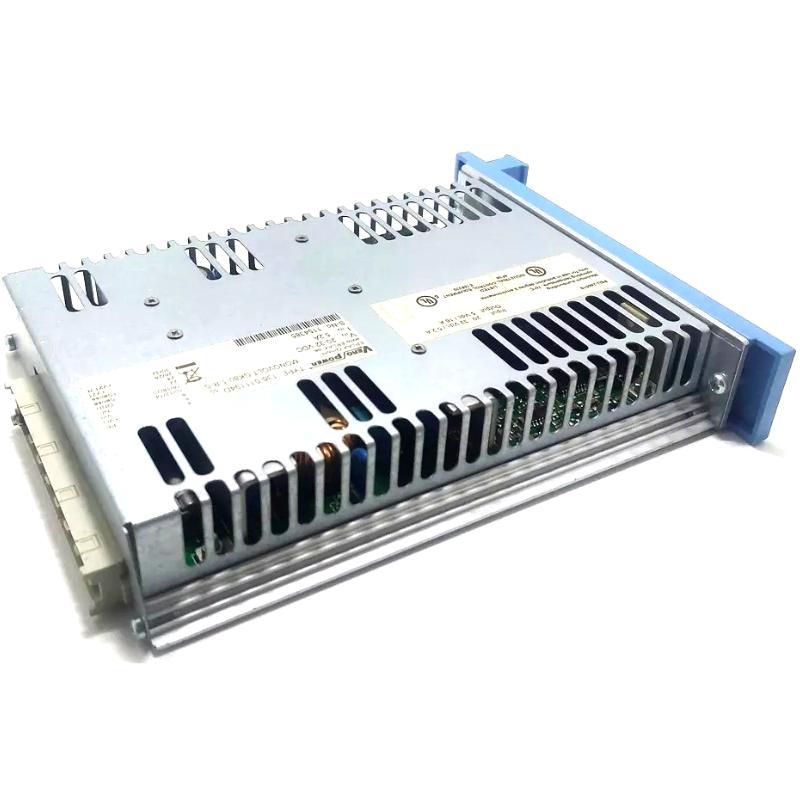

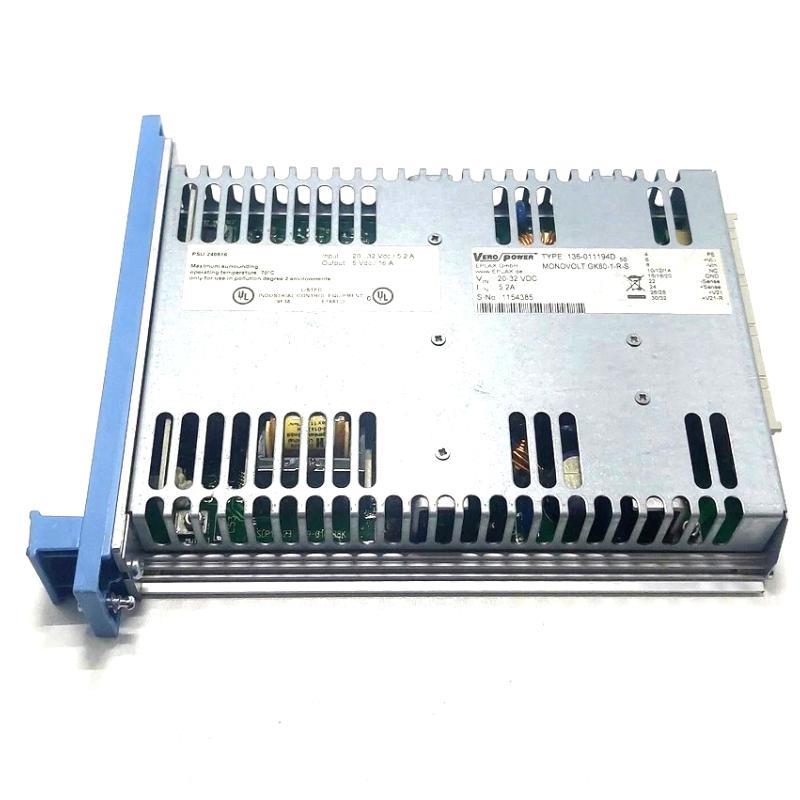

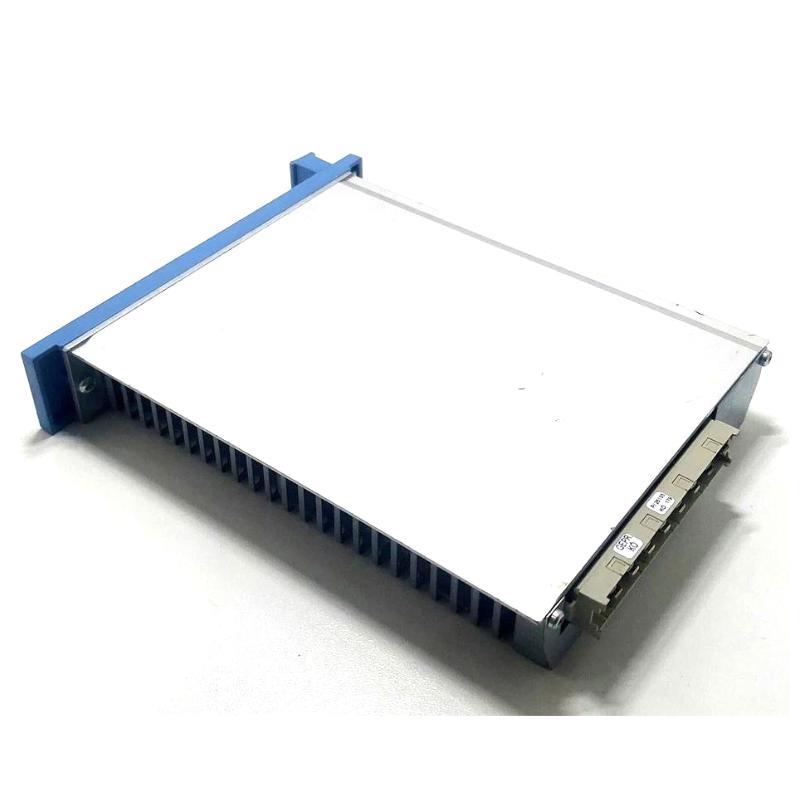

Honeywell FC-PSU-240516 136-011194D Power Supply Module 100% New

Brand：Honeywell

Item No.：FC-PSU-240516 136-011194D

Product Type：Power Supply Module

Product Origin：USA

Dimensions：176 × 35.2 × 212 mm

Weight：0.85 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original import channel source, support for testing instructions, worry-free after-sales

A wide range of spot models supports fast docking of procurement needs, welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the input voltage requirement for the FC-PSU-240516 module?
The module requires a 24 V DC input with an operating range from -15% to +30%.

How many output channels does the module provide, and what are they used for?
It provides two independent 5 V DC outputs—5Vx (local) and 5VR (redundant)—for powering control processors and I/O modules.

What is the electrical isolation rating of the module?
The module offers ≥2.5 kVdc isolation between input and output, ≥1.0 kVdc between input and ground, and ≥1.5 kVdc between output and ground.

What do the LED indicators on the module signify?
Green indicates normal output, Red indicates a low 5 V output, and Off means no input power or undervoltage.

Is the module designed for maintenance-free operation?
Yes, it includes dual overvoltage protection circuits and is suitable for safety applications with minimal maintenance needs.

Where is this power module typically installed?
It is mounted in controller chassis systems such as CPCHAS-0001, CPCHAS-0002, or CPCHAS-0003.

What is the operational temperature range for this unit?
The operational temperature is -5°C to +70°C, with a storage temperature range of -40°C to +85°C.

Has the FC-PSU-240516 been certified for industrial use?
Yes, it is certified under CE, TUV, UL, CSA, and FM standards for industrial-grade safety and reliability.
