Schneider TSXASY800 Analog Output Module 12-Month Warranty

0.0
Points

  • 100% Original and Authentic.
  • 100% Brand New, Ready to ship.
  • Support Refund, 7X24h Service.
  • 1-Year Warranty on All Products.
Today's Discount: 90% 00 : 00 : 00
Low stock: 82 left
55%

Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

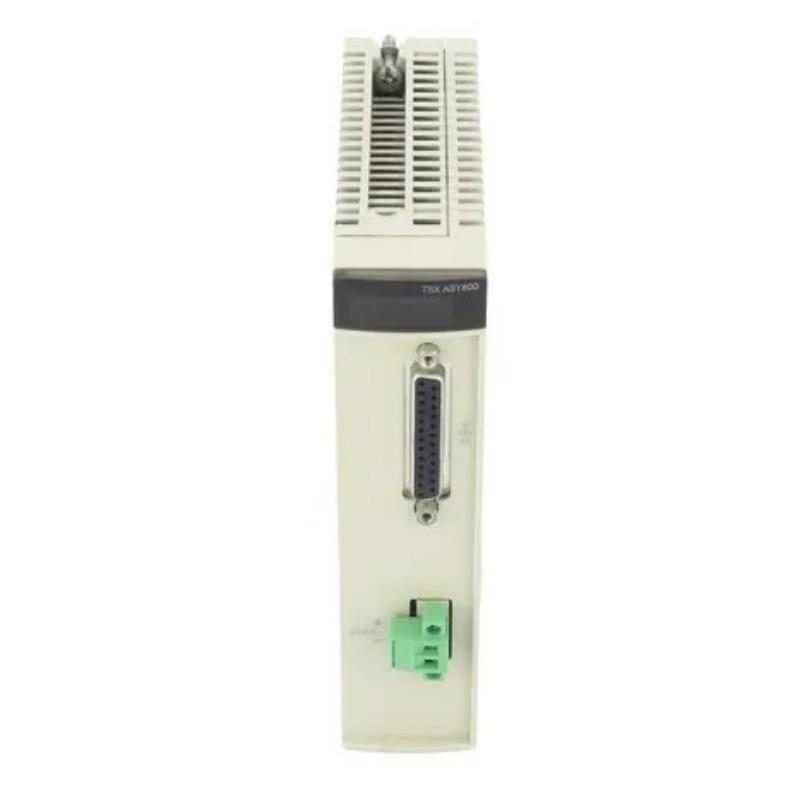

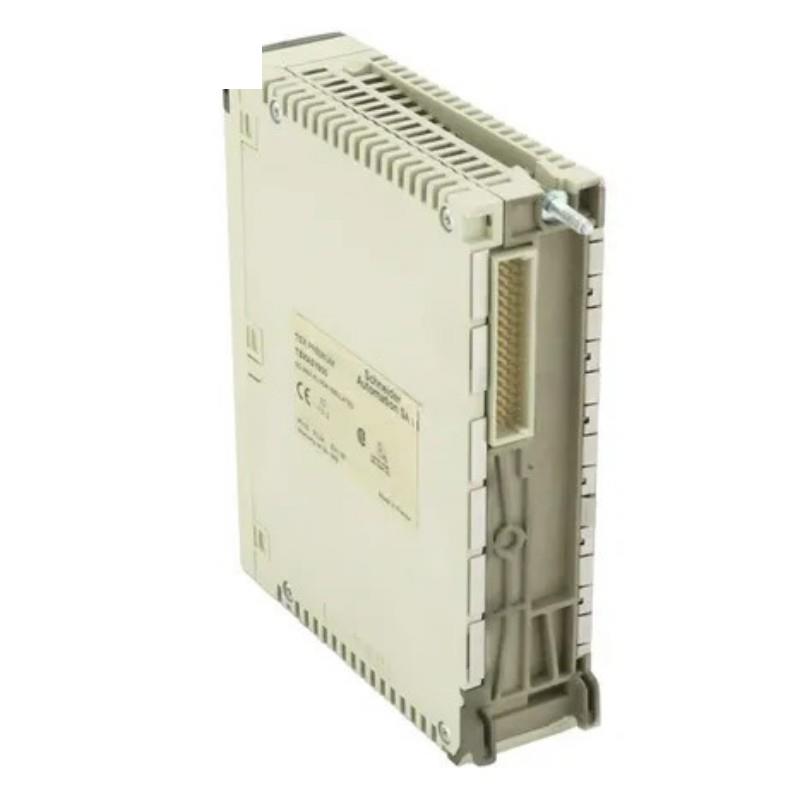

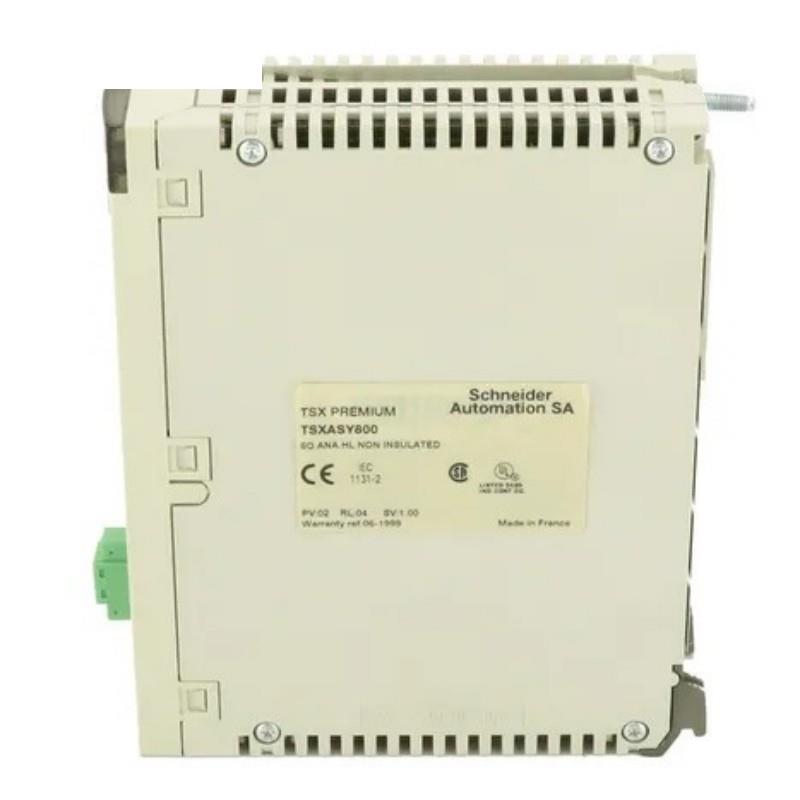

Schneider TSXASY800 Analog Output Module 12-Month Warranty

Brand:Schneider

Item No.:TSXASY800

Product Type:Analog Output Module

Product Origin:France

Dimensions:55 x 180 x 260 mm

Weight:0.46 kg

Payment:T/T, Western Union, Credit Card

Shipping Port:Xiamen, China

Lead Time:1-3 Days

Condition:Brand New And Original

Warranty:1 Year

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Company Information

E-mail: [email protected]

Mobile:+8613043043316

Whatsapp:+8613043043316

Add: Alishan Building, 2 Lvling Rd, Siming District, Xiamen, Fujian, China, 361006

Our services

We are specialized in providing industrial automation parts with a one-year warranty. Our industrial automation parts are sold all over the world

We can provide equipment and spare parts from different countries and manufacturers, solve your worries or quality problems in many places, and have a great price advantage.

Welcome to call for more product details.

The product information is complete, the quotation structure is reasonable, the outbound response is fast, and bargaining communication is welcome for large quantities.

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

– Frequently Asked Questions (FAQ)

What signal types does the TSXASY800 support?
It supports ±10 V, 0–20 mA, and 4–20 mA signal types on all 8 output channels.

Is each output channel isolated?
Yes, each output is isolated with 1000 Vrms isolation from ground and from the bus.

Can the TSXASY800 be used in marine environments?
Yes, it is certified by marine classification societies including DNV, ABS, GL, and RINA.

What connector type is used for wiring the module?
It uses a 25-pin Sub-D connector for all output channels.

What is the module’s output resolution?
It offers 13-bit resolution for current and 13-bit + sign resolution for voltage outputs.

What type of load can be connected on current outputs?
For current outputs (0–20 mA, 4–20 mA), the maximum load impedance is 600 Ohms.

How is the module protected against electrical faults?
The TSXASY800 includes short-circuit and overload protection on all output channels.

Does the module require external power?
Yes, it draws 300 mA from a 24 V DC external power source and 200 mA from 5 V DC bus supply.
