Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

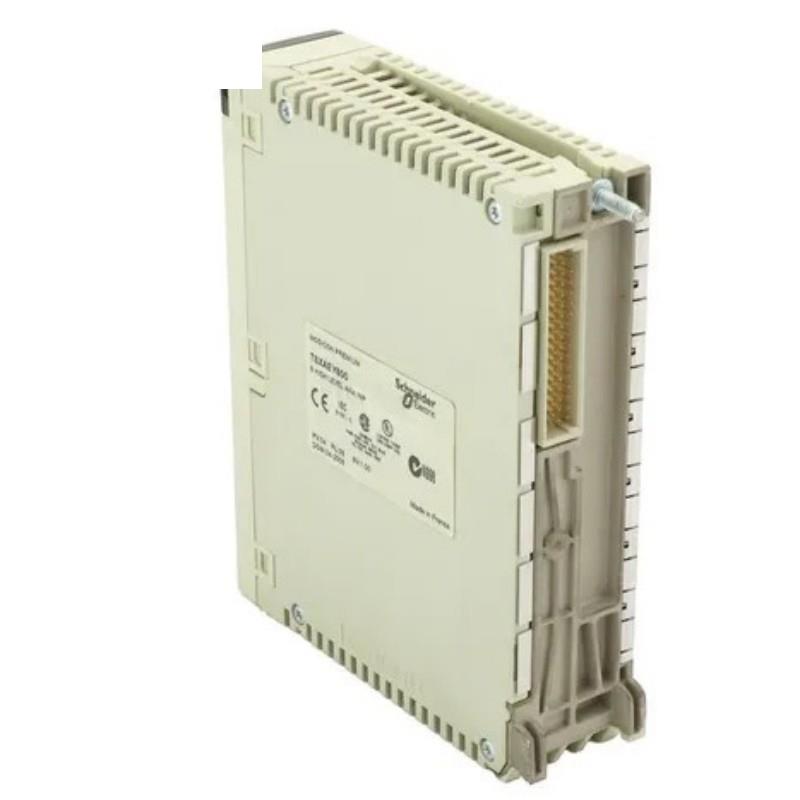

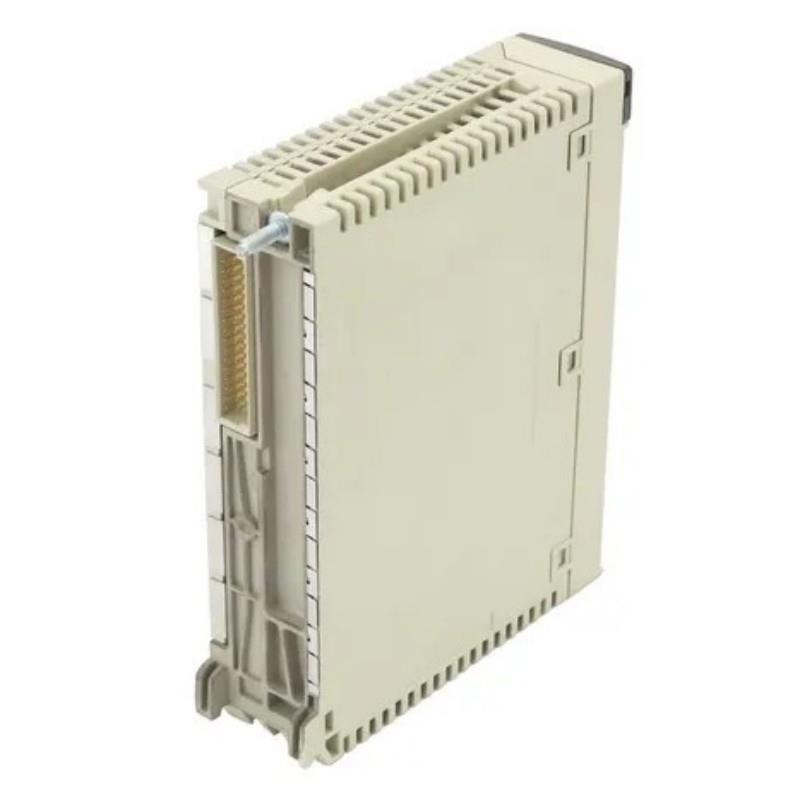

Schneider TSXAEY800 Modicon Analog Input Module 30-Day Returns！

Brand：Schneider

Item No.：TSXAEY800

Product Type：Modicon Analog Input Module

Product Origin：France

Dimensions：55 x 180 x 260 mm

Weight：0.31 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Clear and reliable product source, support for third-party testing, complete after-sales support

Rich spot models, support for quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

– Frequently Asked Questions (FAQ)

What types of signals can the TSXAEY800 module handle?
It supports analog voltage inputs (0–5 V, 1–5 V, 0–10 V, ±10 V) and current inputs (0–20 mA, 4–20 mA).

Can TSXAEY800 be used with both 2-wire and 4-wire sensors?
Yes, with appropriate wiring configurations and external shunt resistors if needed.

What is the accuracy level of the module?
At 25 °C, the accuracy ranges from ±0.15% to ±0.25% depending on input type.

Does the module support channel isolation?
Yes, each channel is isolated at 1000 Vrms from the bus and ground.

What type of connector is used for signal input?

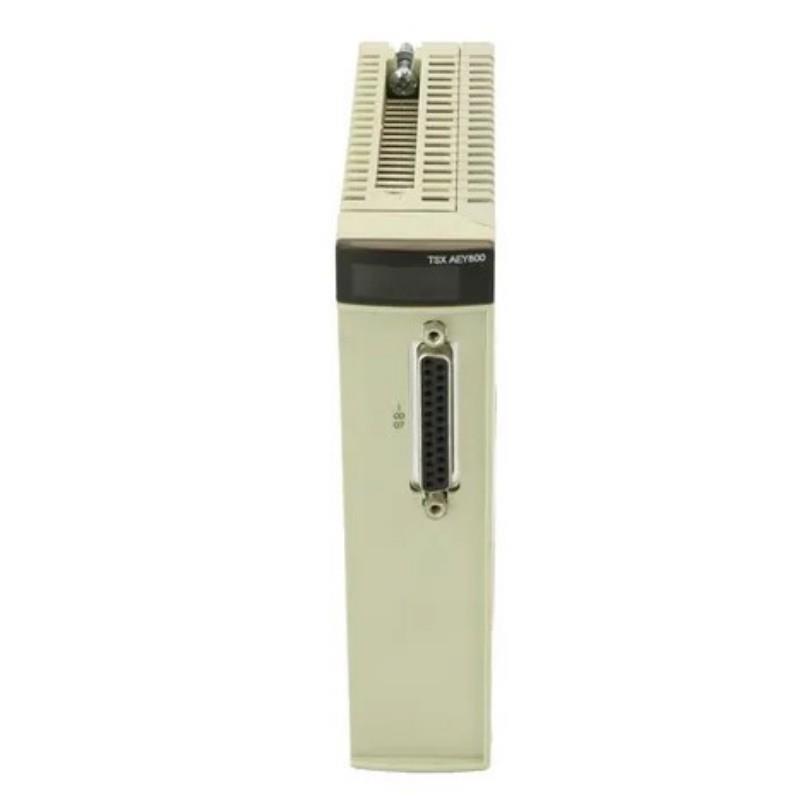

A 25-pin SUB-D connector is used for channel signal wiring.

Is the module compatible with EcoStruxure Control Expert?
Yes, it is designed for use within the EcoStruxure Control Expert environment.

Can the TSXAEY800 be installed in any slot of the rack?
It can be installed in any slot except the first two (reserved for power supply and processor).

What protective measures are built into the module?
The module includes overvoltage and overcurrent protection and complies with EMC and industrial safety standards.
