Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

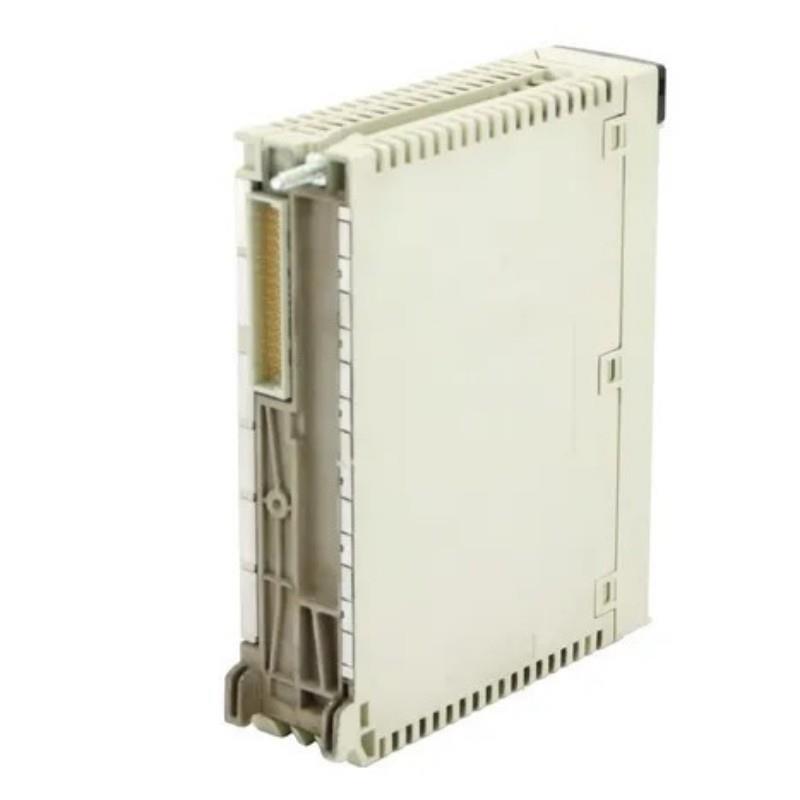

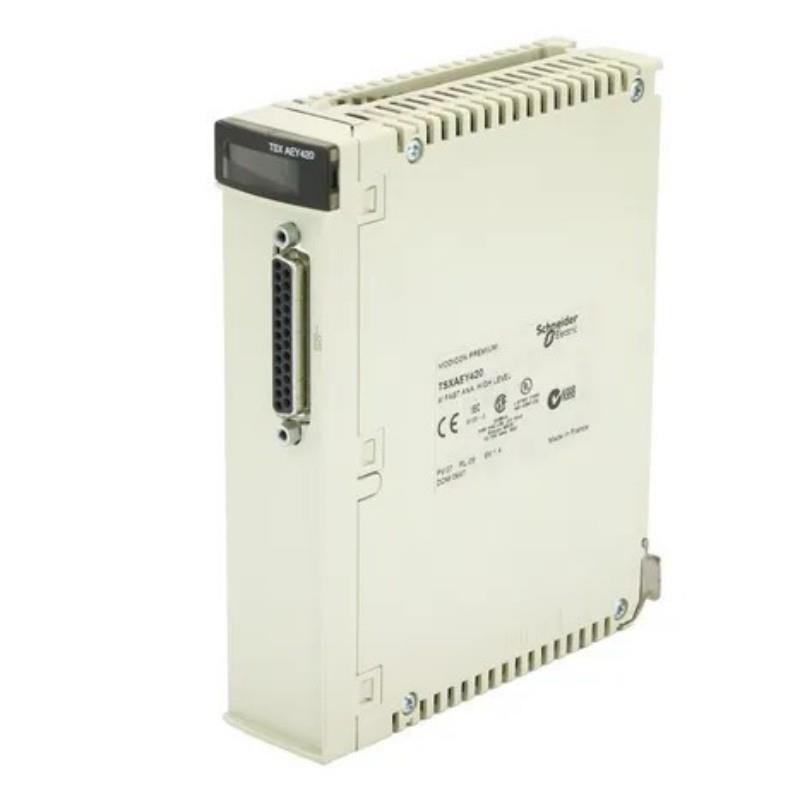

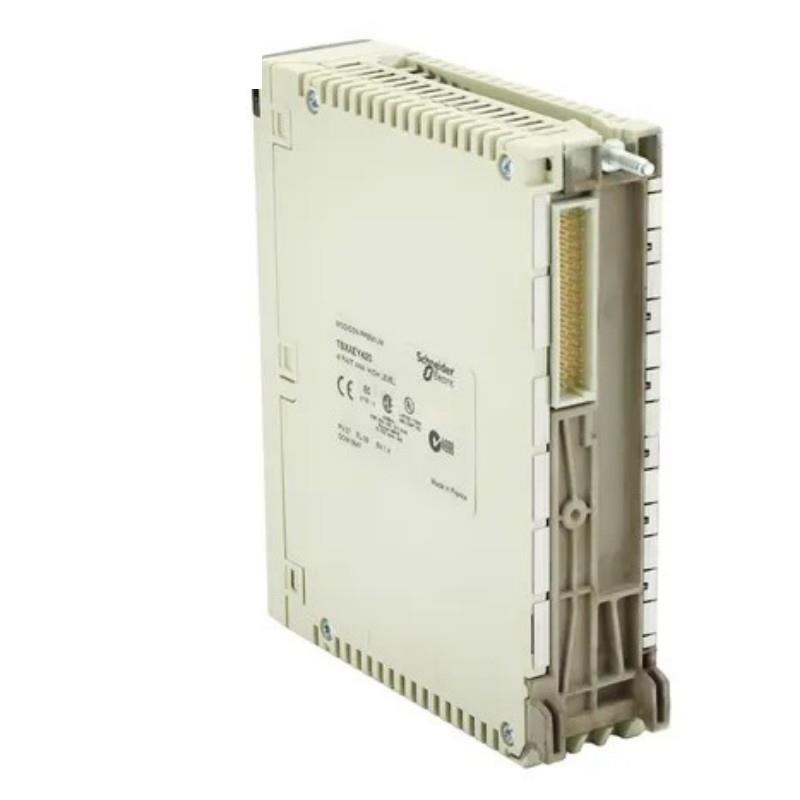

Schneider TSXAEY420 Modicon Analog Input Module Trusted supplier

Brand：Schneider

Item No.：TSXAEY420

Product Type：Modicon Analog Input Module

Product Origin：France

Dimensions：55 x 180 x 260 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance and explanation support, stable and reliable service

Flexible stocking of various models, support for quick response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What signal types are compatible with TSXAEY420?
It supports ±10 V, 0–10 V, 0–5 V, 1–5 V, 0–20 mA, and 4–20 mA input types.

What is the resolution of the analog-to-digital conversion?
The module provides 16-bit resolution for precise signal acquisition.

How many analog input channels does the module provide?
The TSXAEY420 offers 4 high-level analog input channels.

What is the nominal cycle time for input readings?
The nominal read cycle time is 1 millisecond.

What type of electrical isolation is included?
The module features 1000 Vrms isolation between channels and both the bus and ground.

What is the operating temperature range?
The module operates within a range of 0 to 60 °C (32 to 140 °F).

How is the module connected electrically?
It connects via a single SUB-D 25-pin connector.

What are the dimensions and weight of the TSXAEY420?
It measures 55 x 180 x 260 mm and weighs 0.33 kg (0.73 lb).
