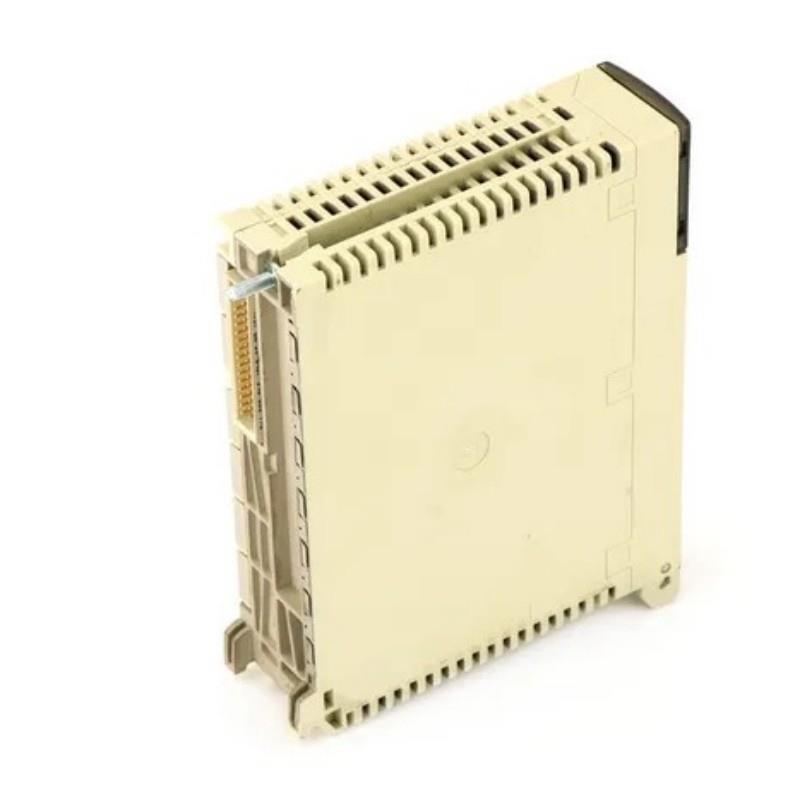

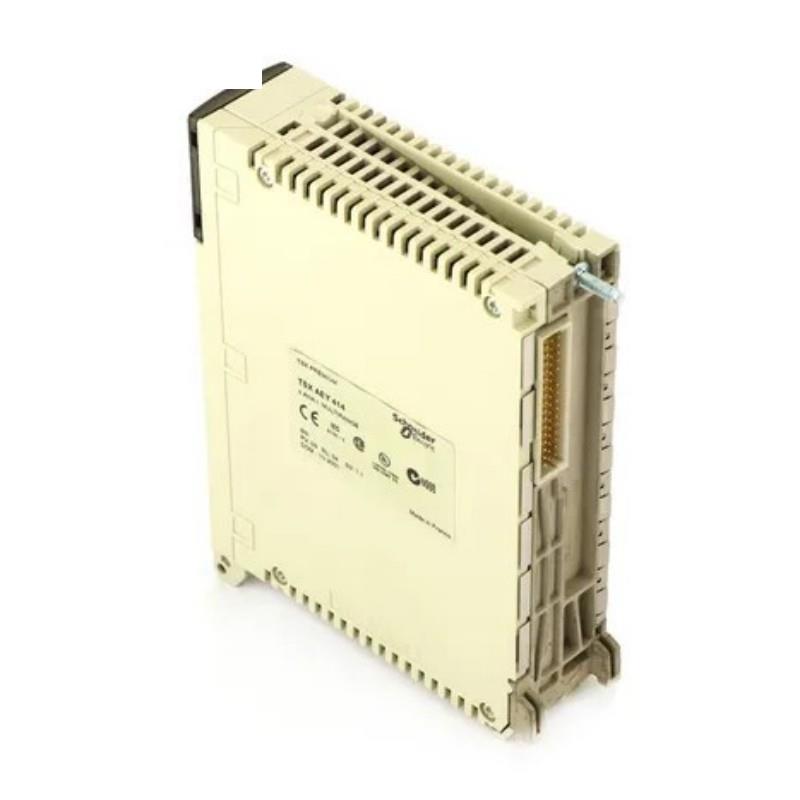

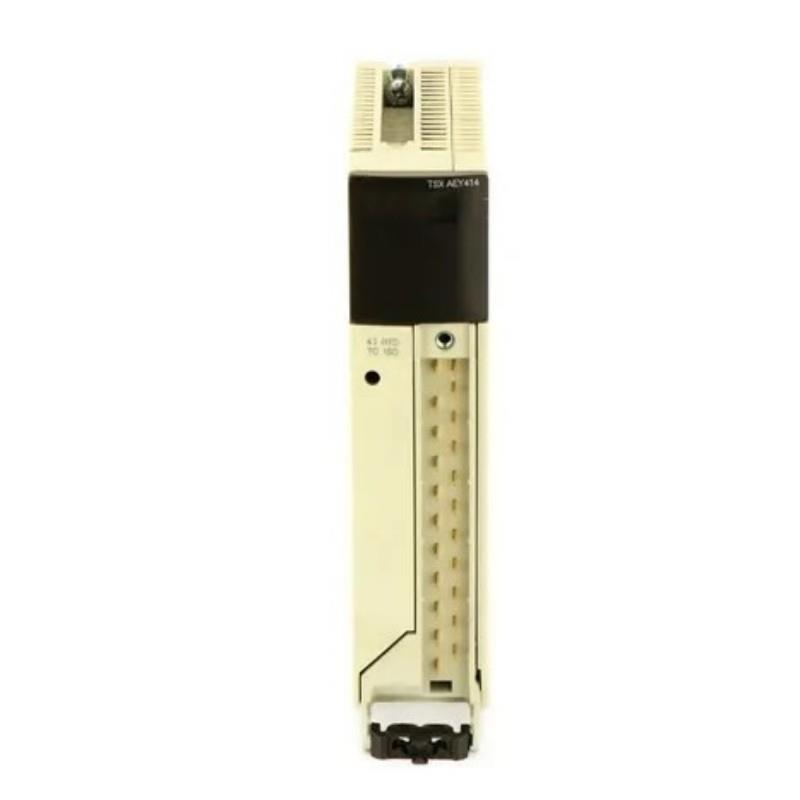

Schneider TSXAEY414 Modicon Analog Input Module Original

Frequently Asked Questions (FAQs)

What types of input signals does the TSXAEY414 support?
It supports voltage (±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V), current (0–20 mA, 4–20 mA with external shunt), thermocouples (B, E, J, K, L, N, R, S, T, U), resistance (0–400 Ω, 0–3850 Ω), and thermoprobes (Pt100, Pt1000, Ni1000).

Are the input channels electrically isolated from each other?
Yes. Each of the four channels is fully isolated with 2830 Vrms channel-to-channel isolation.

Does the TSXAEY414 include cold junction compensation?
Yes, both internal and external cold junction compensation are supported. External compensation requires a Pt100 sensor on channel 0.

Can I use this module in high-temperature environments?
Yes. It operates within 0 to 60 °C and can be stored at -25 to 70 °C.

What is the resolution of the analog-to-digital conversion?
The module uses a 16-bit A/D converter offering 0 to 65535 counts resolution.

What terminal block is used for wiring?
The TSX BLY 01 screw terminal block is used for sensor connections.

How often does the module update input data?
The complete cycle for all four channels is 550 ms.

What standards and certifications does this module comply with?
It complies with IEC 584, IEC 751, DIN 43710, NFC 42-330, and carries CE, DNV, BV, ABS, RMRS, RINA, GL, and LR certifications.
