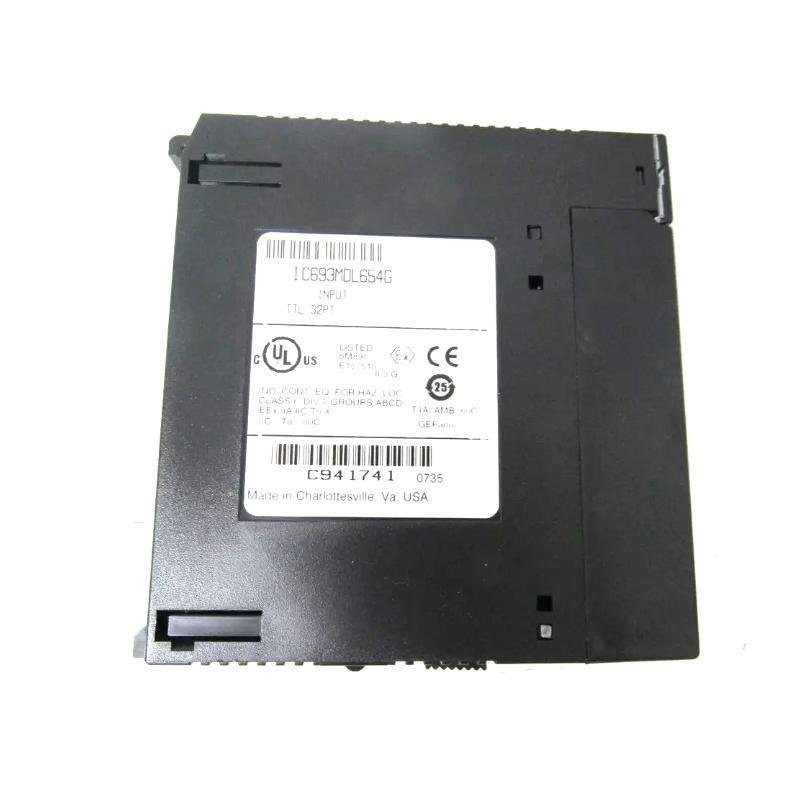

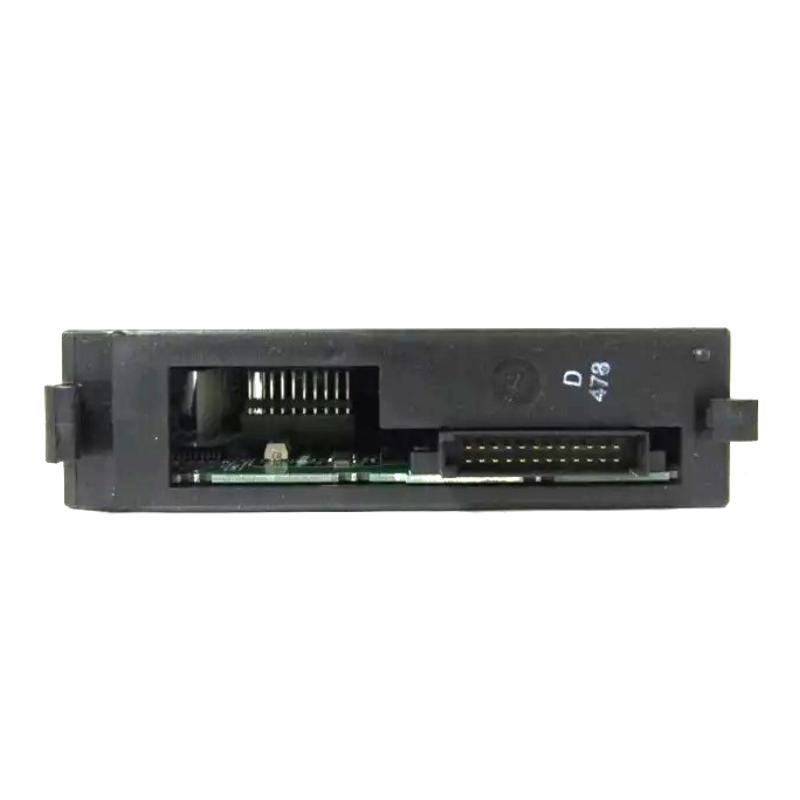

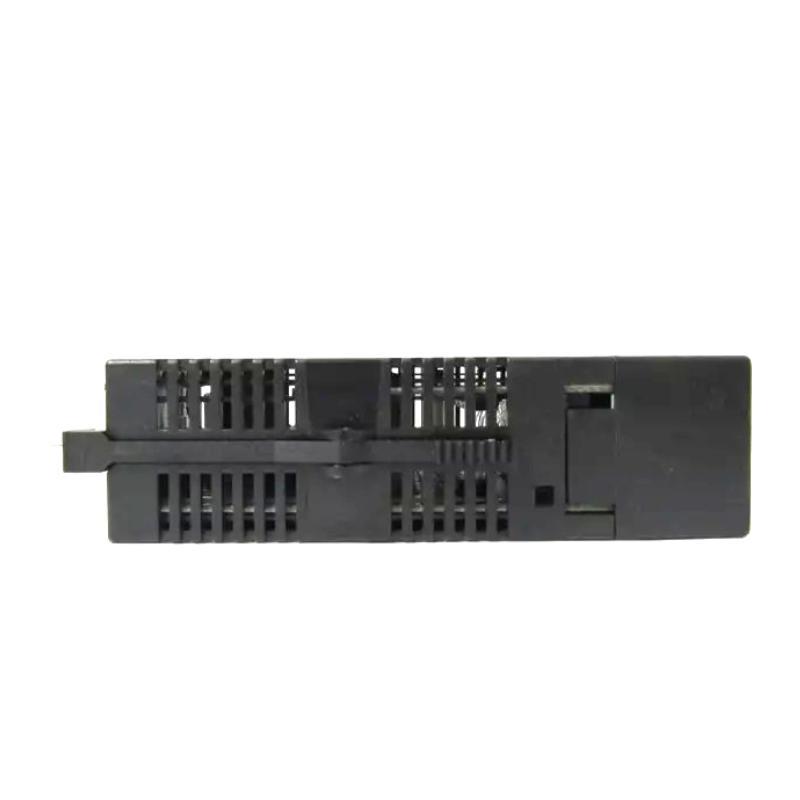

Name: GE IC693MDL654G Series 90-30 PLC Positive/Negative Logic Input Module 12-Month Warranty
Brand: GE Fanuc PLC
SKU: 7526
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IC693MDL654G Series 90-30 PLC Positive/Negative Logic Input Module 12-Month Warranty

Brand：GE Fanuc

Item No.：IC693MDL654G

Product Type：Positive/Negative Logic Input Module

Product Origin：USA

Dimensions：142 x 30 x 130 mm

Weight：0.58 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Import process is standardized, testing is supported, and after-sales service is guaranteed

Ten thousand models are in stock, quickly matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What logic type is supported by the IC693MDL654G module?
The module supports both positive and negative TTL logic input types.

Can the internal +5V supply be used to power the field inputs?
Yes, the internal supply can be used by jumper configuration, but this adds load to the backplane power.

What kind of electrical isolation does the module provide?
The module provides 1500V isolation between the logic and field side, and 250V between groups.

How many input groups are included and are they isolated?
There are 4 groups of 8 inputs each, and they are isolated from each other.

What is the maximum input current supported by this module?
Typical ON current is 3.0 mA at 5 VDC and 8.5 mA at 12 VDC.

Is there any visual indicator for each input point?
Yes, each input point has a dedicated LED indicator for ON/OFF status.

Where can this module be installed within the PLC system?
It can be installed in any I/O slot of a 5 or 10-slot baseplate in the Series 90-30 system.

Are any special diagnostics or alarms reported by this module?
No special fault or alarm diagnostics are supported; visual LEDs indicate input status.
