Product Details

HIMA provide full solution, including hardware, software, engineering, to ensure safe production processes.

HIMA H41q/H51q Series——MS/HS/HRS(AK6/SIL3)

HIMA Himatrix Series——F20/F30/F31/F35/F60(AK6/SIL3)

Product Introduction

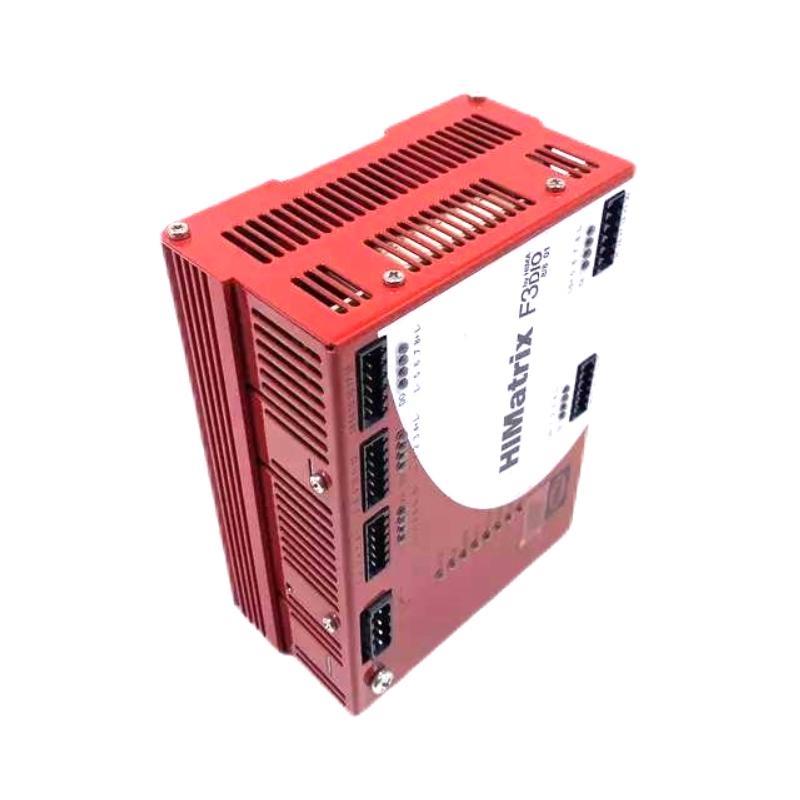

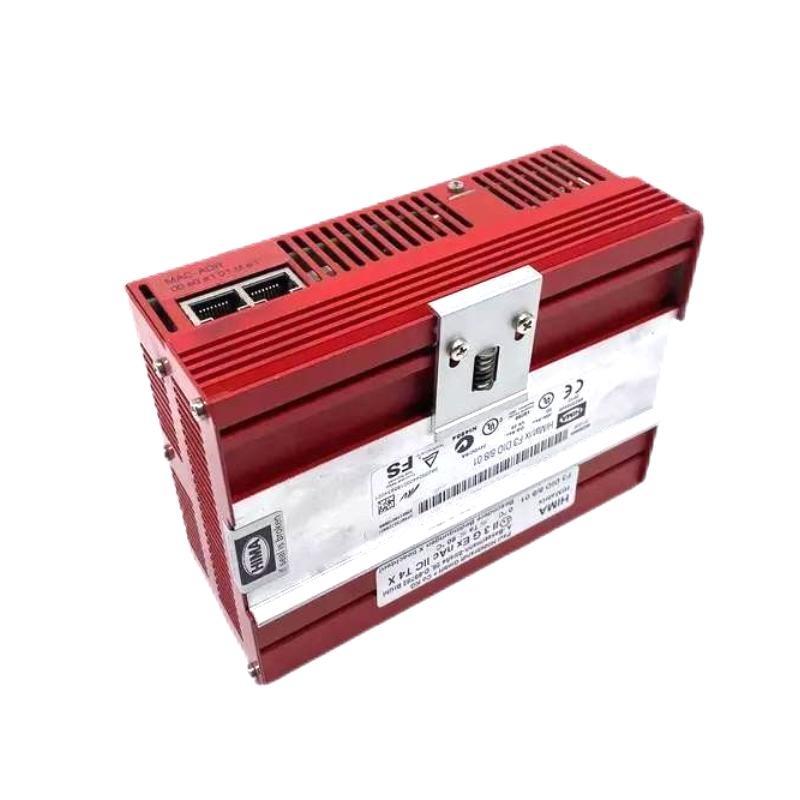

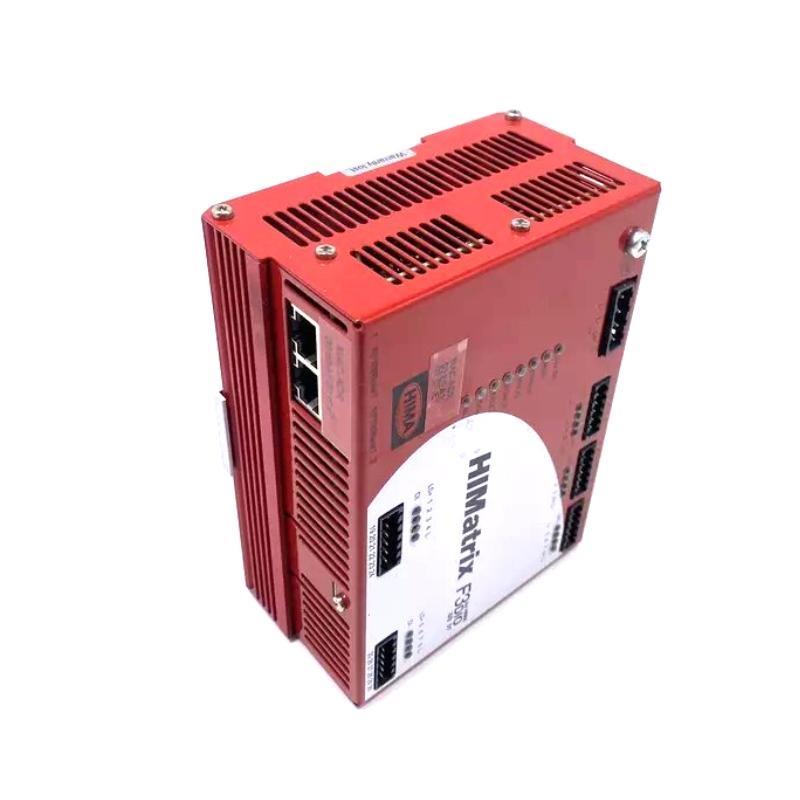

HIMA F3 DIO 8/8 01 Safety-Related Controller Remote I/O Module Fast Shipping!

Brand：HIMA

Item No.：F3 DIO 8/8 01

Product Type：Remote I/O Module

Product Origin：Germany

Dimensions：152 x 114 x 66 mm

Weight：1 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of the product is clear and reliable, supports third-party testing, and has complete after-sales support

There are rich models in stock, which support quick docking of procurement needs, welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What safety certifications does the HIMA F3 DIO 8/8 01 comply with?
It complies with IEC 61508 SIL 3, EN ISO 13849-1 Cat. 4 PL e, EN 50126/28/29 up to SIL 4, ATEX Zone 2, and UL/CSA/FMc standards.

Can the pulsed outputs be used to control safety actuators?
No. Pulsed outputs are strictly used for diagnostic purposes such as line monitoring and should not be used for safety-critical control.

What is the difference between DO+ and DO– outputs?
DO+ uses L- ground while DO– uses S+ ground. DO4+/8+ and DO4–/8– can be used in 2-pole configurations for enhanced diagnostic and isolation features.

Is the F3 DIO 8/8 01 suitable for Ex zone installations?
Yes, it is certified for installation in Zone 2 hazardous areas per ATEX, when installed in appropriate IP54 or higher enclosures.

What tools can be used for configuration?
Configuration is done via SILworX (OS v7+) or ELOP II Factory (OS up to v6.x), depending on firmware revision.

What happens during a fault condition in a digital output?
The affected output channel is switched off, a FAULT LED is activated, and the module enters a safe state.

What mounting method is used for this module?
It mounts on a standard 35 mm DIN rail and must be installed inside a protected cabinet.

How are the LED indicators categorized?
LEDs indicate system status (RUN, ERROR), power (24 VDC), communication (Ethernet activity), and individual channel states (ON/OFF for each input/output).
