Product Introduction

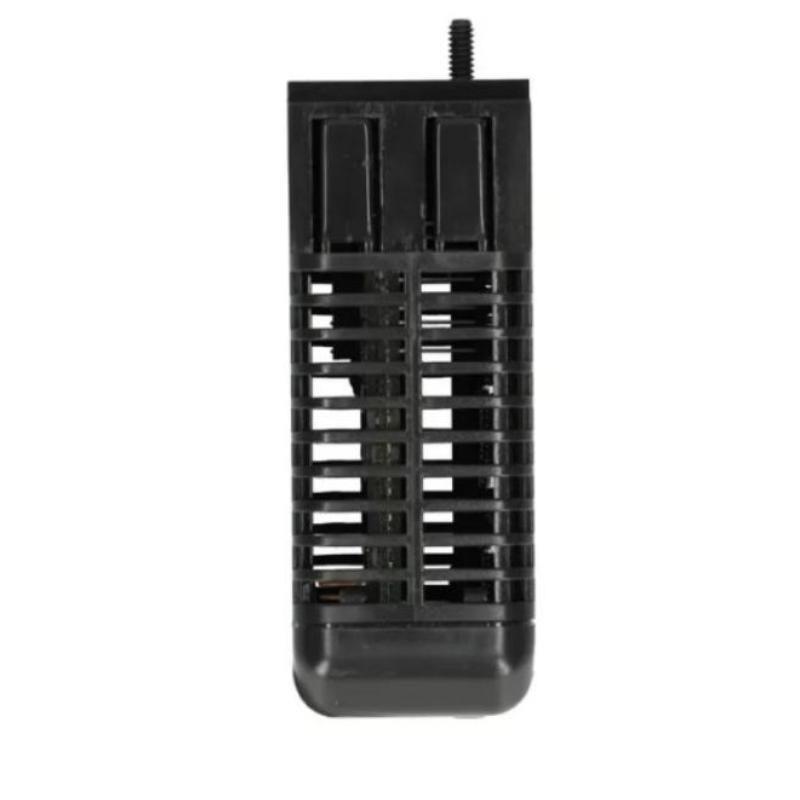

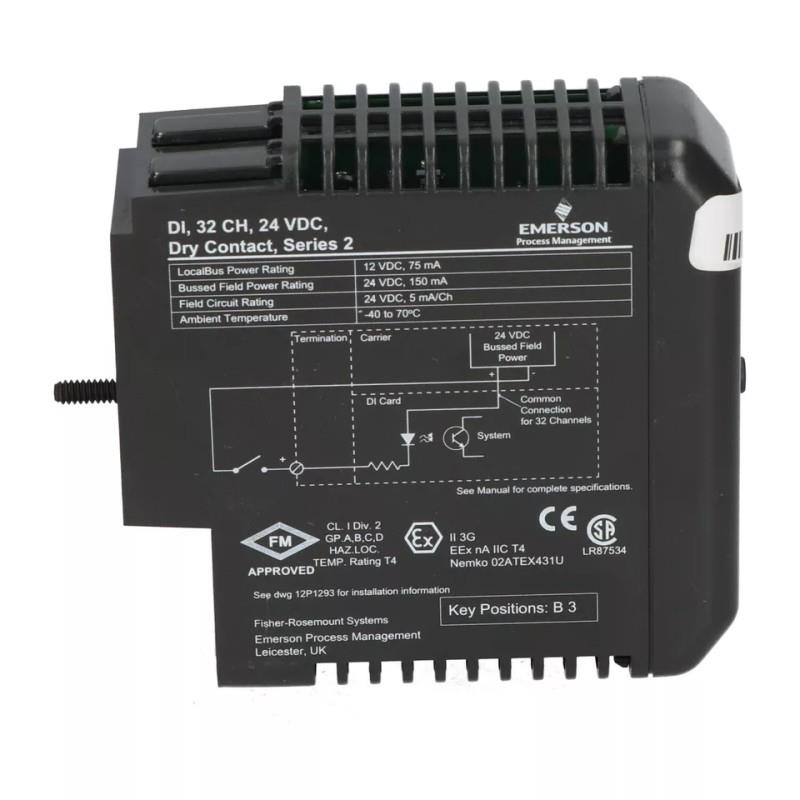

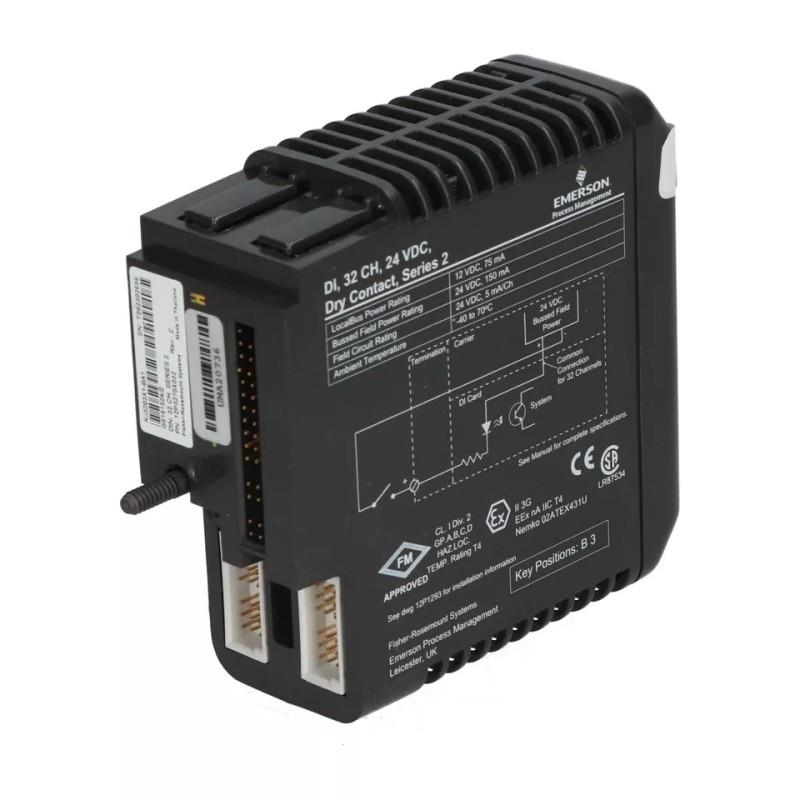

Emerson KJ3203X1-BA1 12P3270X032 DeltaV System Discrete Input Card Original

Brand：Emerson

Item No.：KJ3203X1-BA1 12P3270X032

Product Type：Discrete Input Card

Product Origin：USA

Dimensions：107 x 41 x 105 mm

Weight：0.281 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channel supply, complete information can be checked, and supporting service guarantee

There are rich models in stock, which support quick docking of procurement needs. Welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQs)

What type of signal does the KJ3203X1-BA1 accept?
It accepts 24VDC dry contact discrete input signals.

Can this module be hot-swapped during operation?
Yes, but only in a non-hazardous area or with the system field power de-energized.

What is the ambient operating temperature range for this card?
The operating temperature range is -40°C to +70°C.

Is this card certified for use in hazardous areas?
Yes, it is certified under ATEX and IECEx for Zone 2 hazardous environments.

Does this module require calibration?
No calibration is necessary; the card is factory-calibrated and maintenance-free.

What is the enclosure rating of the KJ3203X1-BA1?
The module has an IP20 enclosure rating and must be installed in an IP54-rated enclosure for Zone 2.

What are the mechanical dimensions and weight of the module?
Dimensions are 107 x 41 x 105 mm; weight is approximately 0.281 kg.

Can this module be used with redundant terminal blocks?
Yes, it is compatible with Emerson’s Series-2 terminal blocks with key position B3.
