Product Details

Schneider aims to bring Sustainability and Efficiency for all. Modicon Quantum system is the advanced PLC system.

Product Introduction

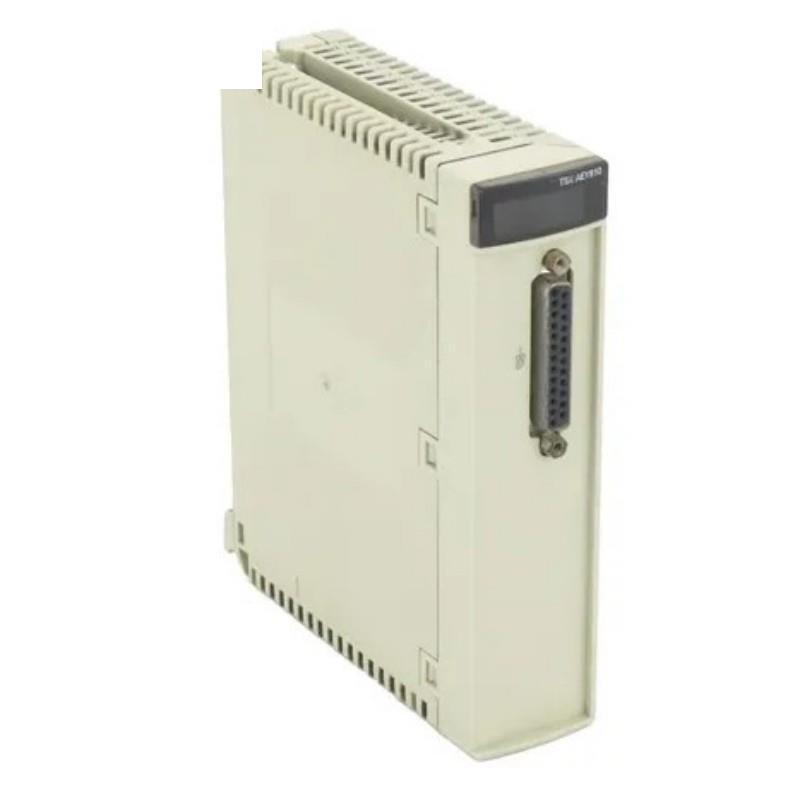

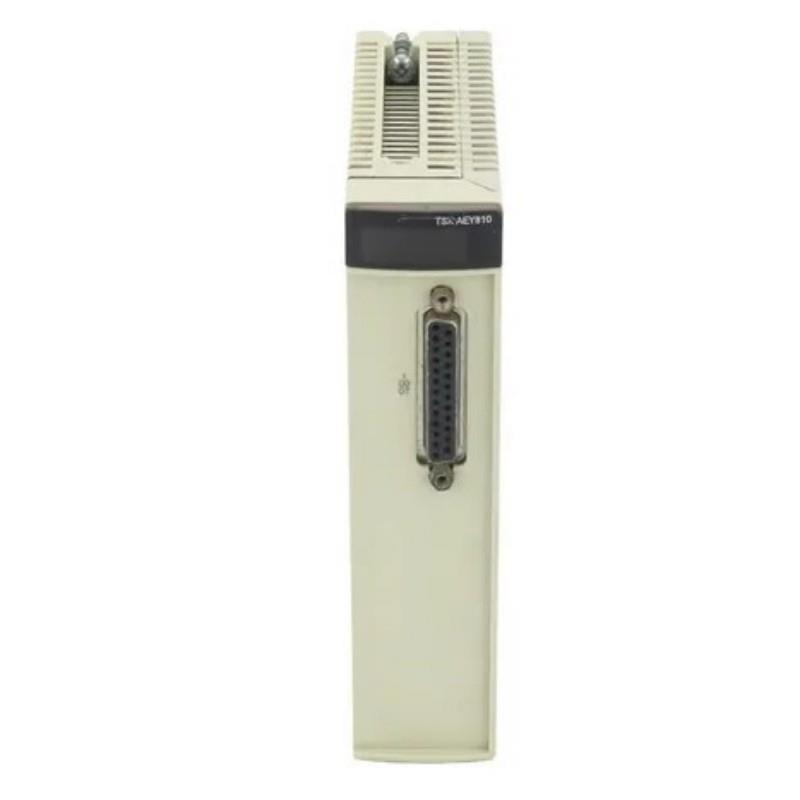

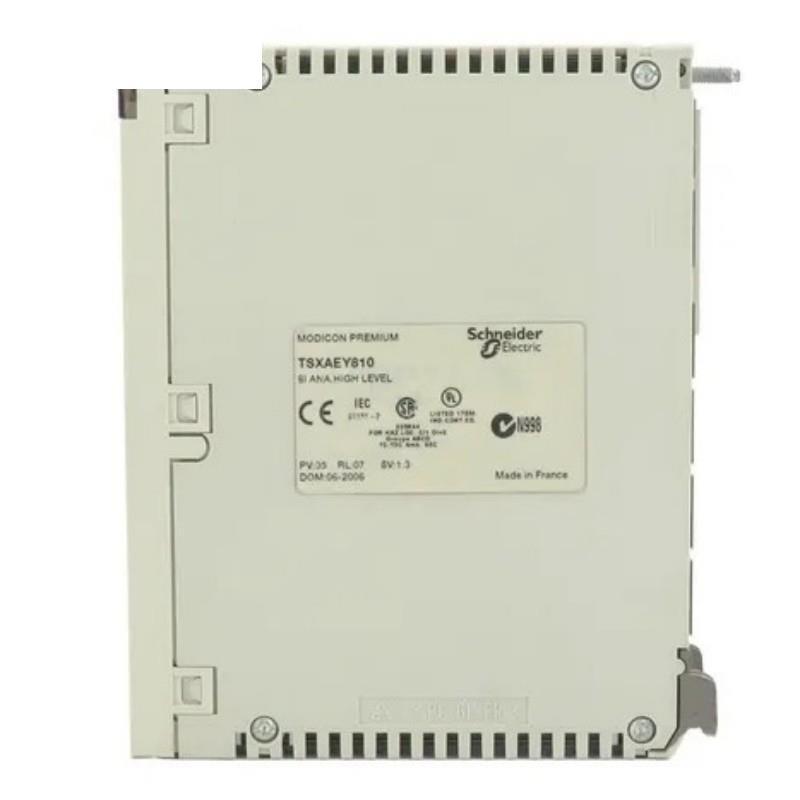

Schneider TSXAEY810 Modicon Analog Input Module Unbelievable Prices!

Brand：Schneider

Item No.：TSXAEY810

Product Type：Modicon Analog Input Module

Product Origin：France

Dimensions：55 x 180 x 260 mm

Weight：0.31 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The channel is formal, the test instructions are complete, and the service is responsive

Regular models are in stock for a long time, and the inventory is stable. Please inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQs)

What types of signals can the TSXAEY810 handle?
It supports voltage signals (±10 V, 0–10 V, 0–5 V, 1–5 V) and current signals (0–20 mA, 4–20 mA).

How many input channels are available on the TSXAEY810 module?
The module provides 8 analog input channels.

What is the resolution of the analog-to-digital conversion?
The module offers 16-bit resolution, enabling high-precision signal processing.

What is the operating temperature range for this module?
It operates reliably within a temperature range of 0 to 60 °C.

Can the TSXAEY810 be used in marine environments?
Yes, it holds certifications such as ABS, RINA, DNV, and others suitable for marine applications.

What isolation is provided between channels and the bus?
Isolation is rated at 1000 Vrms between channels and the system bus, and between channels and ground.

Does the module support overvoltage and overcurrent protection?
Yes, it provides overvoltage protection up to ±30 V and overcurrent protection up to ±30 mA.

Is the module compatible with EcoStruxure™ Control Expert software?
Yes, full compatibility with EcoStruxure™ Control Expert ensures easy configuration and diagnostics.
