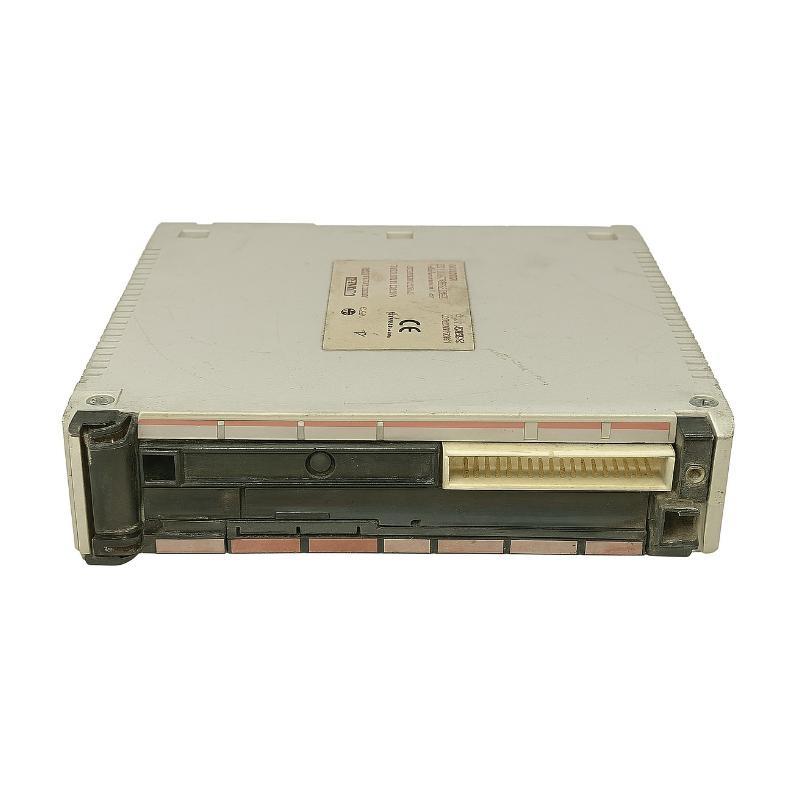

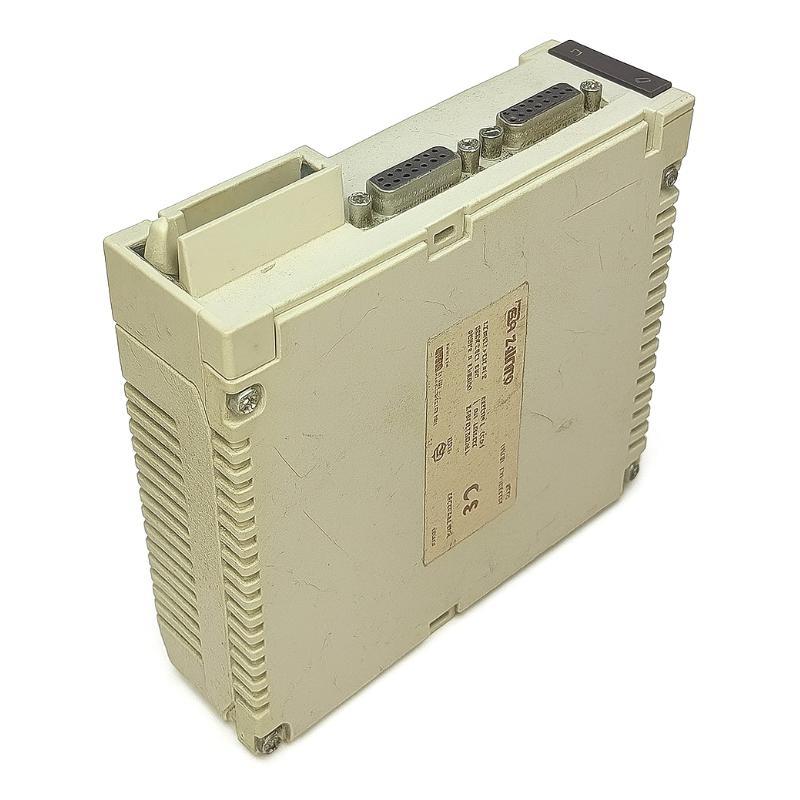

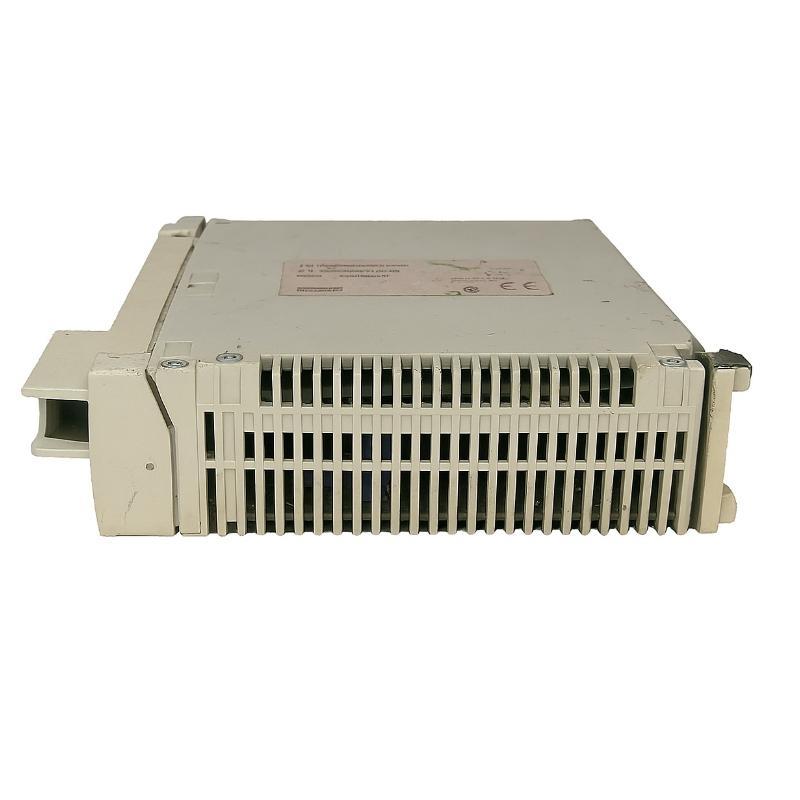

Schneider TSXCFY21 Motion Control Module New In Stock

Frequently Asked Questions (FAQ)

What is the primary function of the TSXCFY21 module?
The TSXCFY21 is used for motion control applications involving stepper motors. It manages the movement of two axes using a trapezoidal speed profile.

Can the TSXCFY21 operate in standalone mode?
No, it requires integration with a Modicon Premium CPU and Unity Pro software for configuration and execution.

What kind of inputs does the TSXCFY21 support?
It supports auxiliary current sink inputs and amplifier inputs, both of which are compliant with EN/IEC 61131 Type 2 standards.

Is the brake output protected against short circuits?
Yes, the brake output includes thermal tripping, current limiting, and Zener diode-based overvoltage protection.

What is the maximum frequency output per axis?
The module can generate pulse outputs up to 187 kHz per axis.

What kind of motion profiles does the TSXCFY21 support?
It supports trapezoidal motion profiles for controlled acceleration and deceleration.

Can I monitor the status of the module visually?
Yes, the module features LEDs for run status, internal faults, I/O errors, and axis-specific diagnostics.

What environmental conditions can the module operate in?
It supports operating temperatures from 0 to 60 °C, storage from -25 to 70 °C, and humidity levels from 5 to 95% without condensation.
