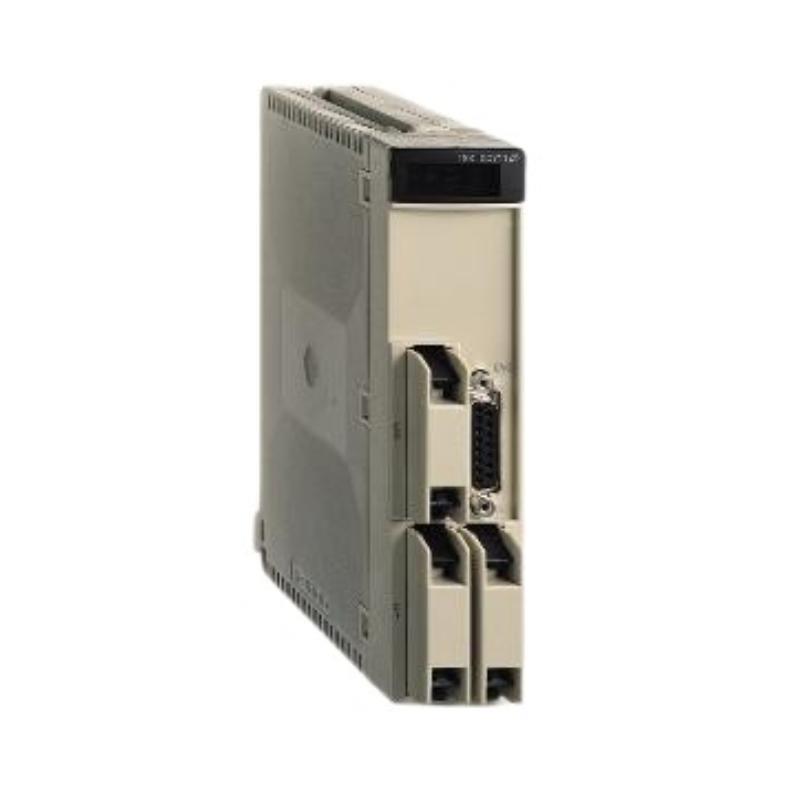

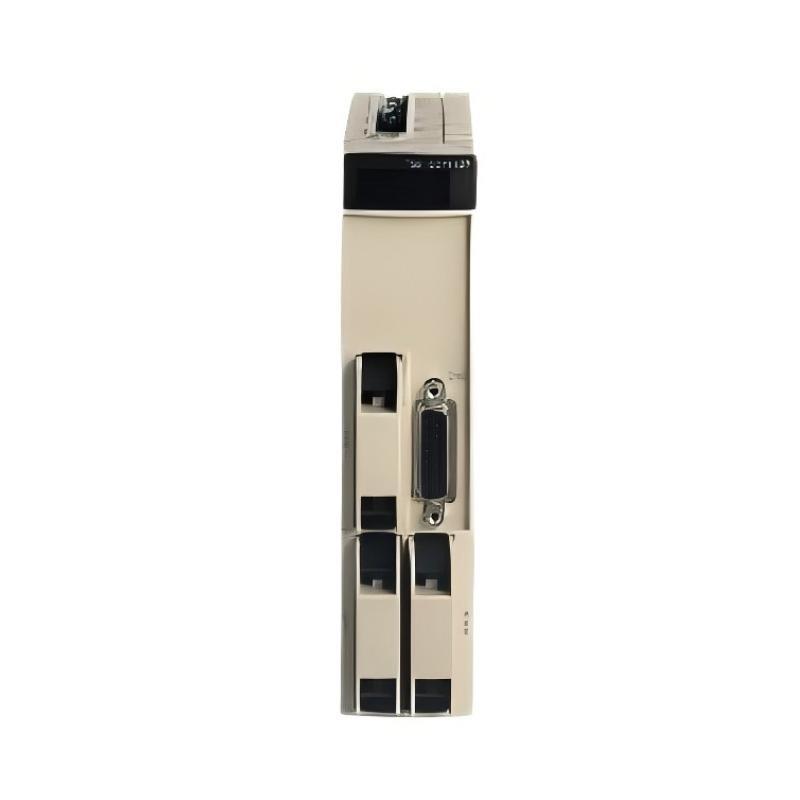

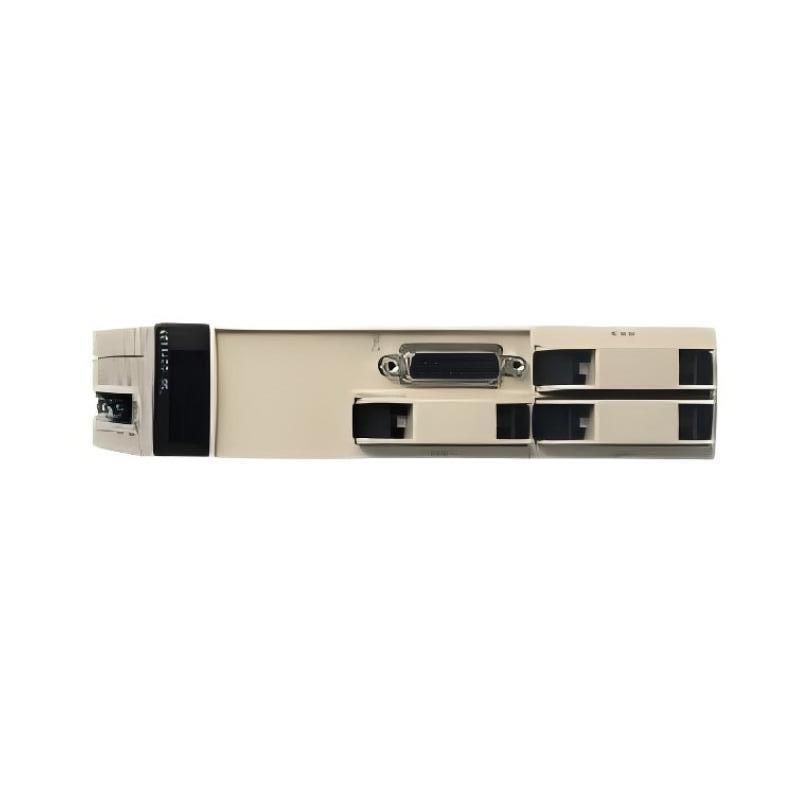

Schneider TSXCCY1128 Electronic Cam Module Trusted supplier

Frequently Asked Questions – Schneider TSXCCY1128

What type of encoders are compatible with the TSXCCY1128 module?
It supports incremental encoders (RS422, 10–30 V), and absolute encoders with SSI or parallel output (e.g., ABE7CPA11).

What is the maximum number of cams and tracks this module can handle?
The TSXCCY1128 supports up to 128 cams and 32 tracks.

Can this module detect encoder faults or errors?
Yes, the module includes diagnostic LEDs and monitoring functions to detect encoder faults and power issues.

What is the minimum output refresh time achievable?
The minimum output refresh time is 50 microseconds for configurations with 16 outputs.

Is it possible to connect both incremental and absolute encoders simultaneously?
No, the module supports either incremental or absolute encoders per configuration but not both simultaneously.

What protective features are integrated into the output circuitry?
Outputs are protected with thermal circuit breakers, current limiters, Zener diodes for overvoltage, and reverse polarity protection.

Can the TSXCCY1128 be used for rotary cam applications?
Yes, it is ideally suited for rotary and linear cam-based timing applications.

What is the recommended ambient operating temperature range?
The module operates within a temperature range of 0 to 60 °C (32 to 140 °F).
