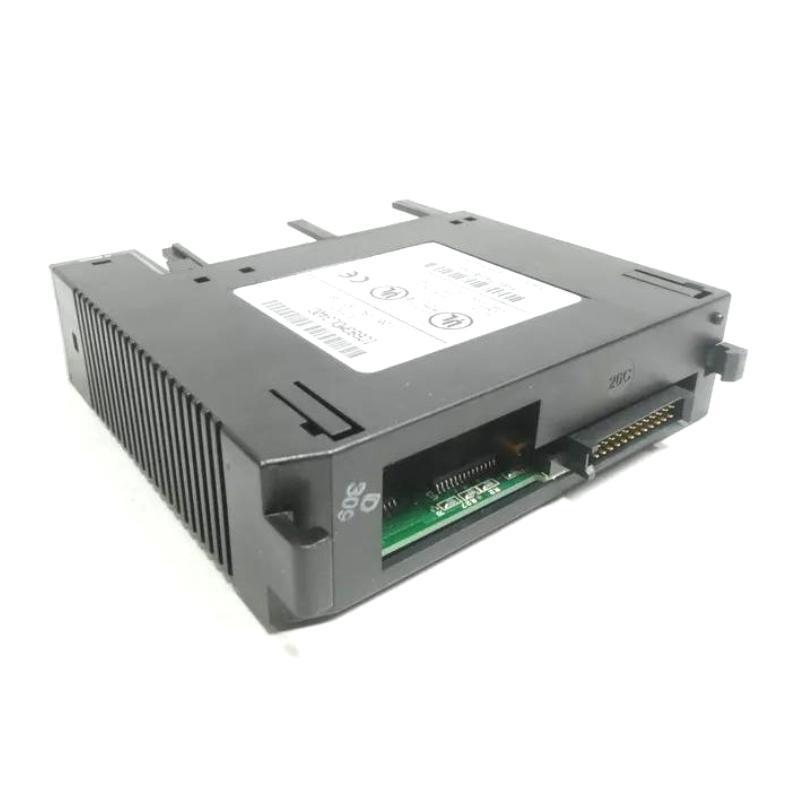

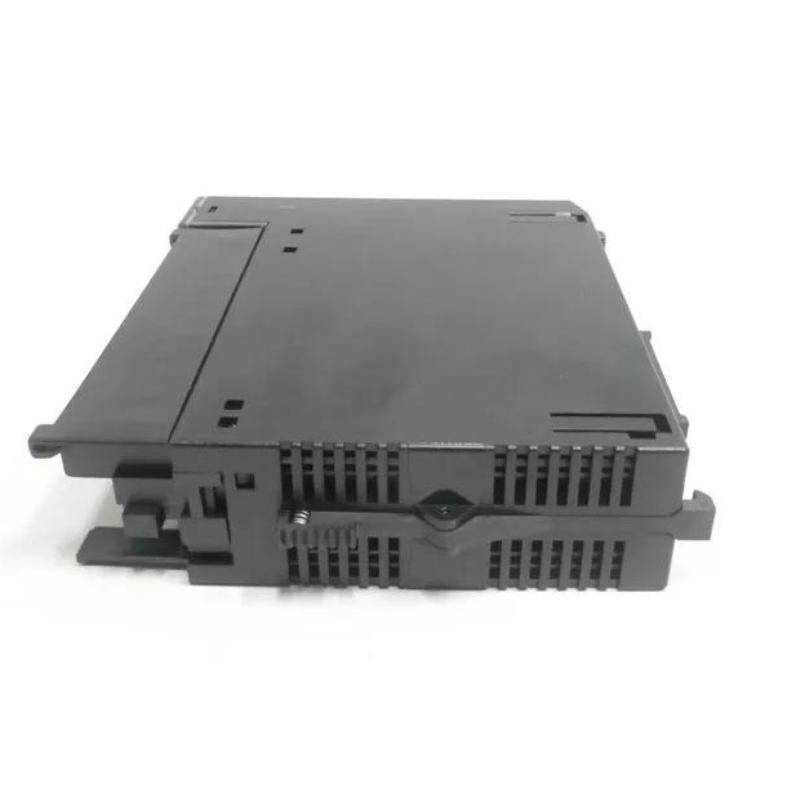

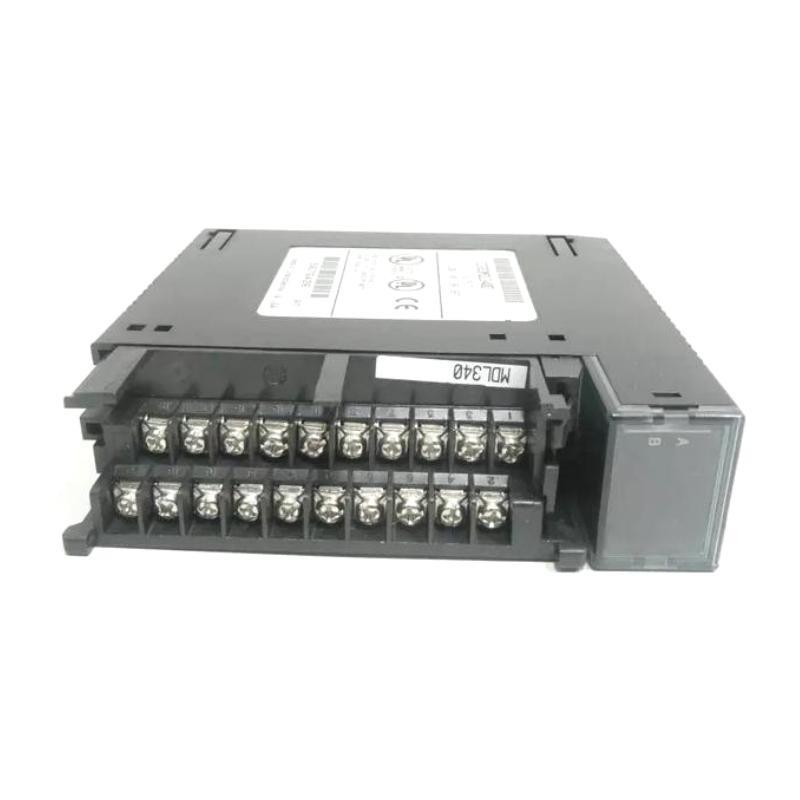

GE IC693MDL340D Series 90-30 PLC AC Voltage Output Module 30-Day Returns！

FAQs

What is the rated voltage for the IC693MDL340D?

The module is rated for 120V AC operation, with a voltage range of 85V to 132V AC.

How many output points does the IC693MDL340D have?

The module provides 16 output points, divided into two groups of 8 outputs.

What is the maximum current that each output point can handle?

Each output point can handle up to 0.5A, and each group of outputs can handle up to 3A.

Can the IC693MDL340D control both resistive and inductive loads?

Yes, the module is designed to control both resistive and inductive loads, including motors and lighting.

What protection features does the IC693MDL340D have?

The module is equipped with 3A fuses for each group of outputs, and RC snubbers to protect against electrical transients.

How do I monitor the status of each output point?

Each output point has a corresponding LED indicator for ON/OFF status. A red LED indicates a blown fuse.

What is the response time of the IC693MDL340D?

The on-response time is 1 ms, and the off-response time is 1/2 cycle.

Can the IC693MDL340D be used in a 240V system?

No, this module is specifically designed for 120V AC systems. For 240V AC applications, consider using other models like the IC693MDL330.
