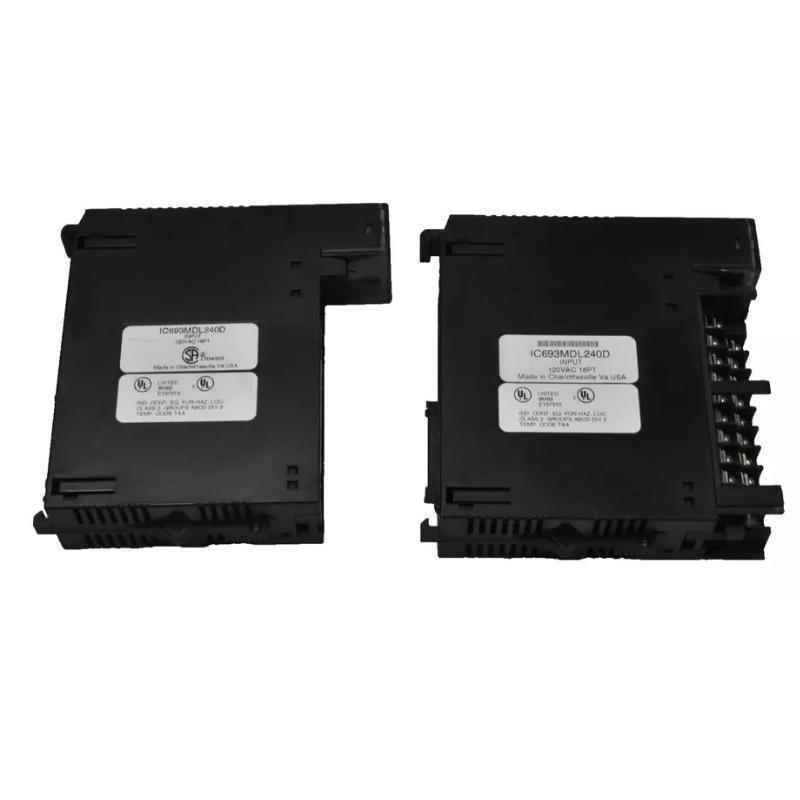

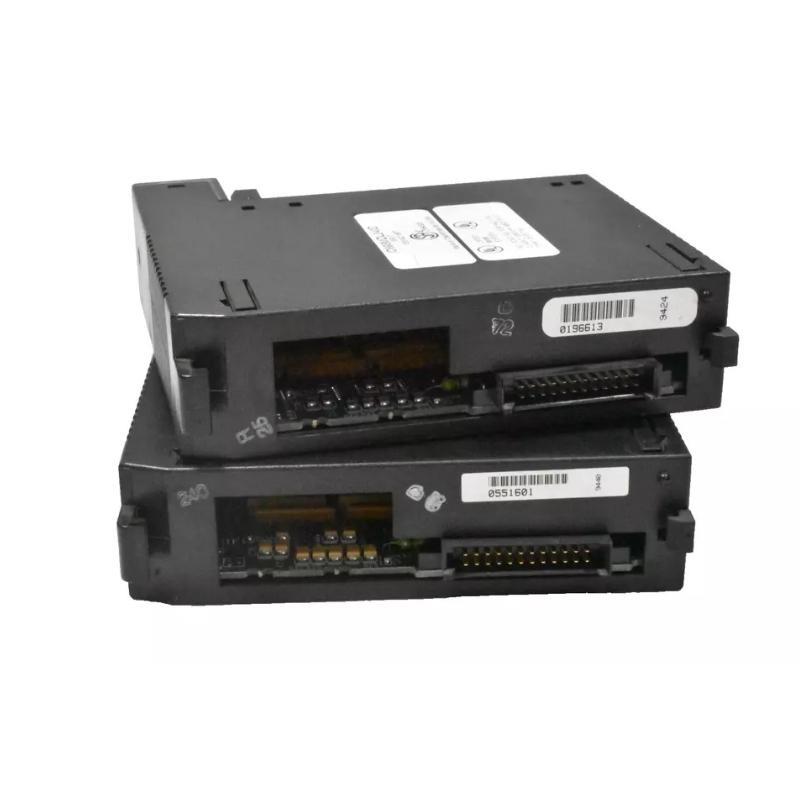

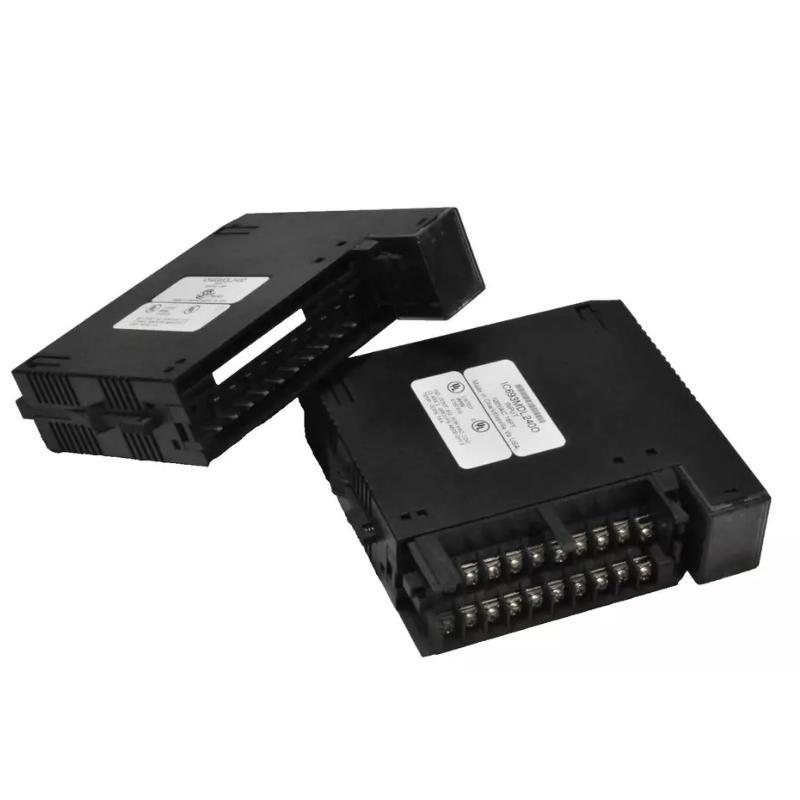

GE IC693MDL240 Series 90-30 PLC AC Voltage Input Module 30-Day Returns！

Frequently Asked Questions (FAQ)

What kind of input devices can be connected to the IC693MDL240?
The module supports standard AC field devices such as pushbuttons, proximity sensors, limit switches, and relay contacts.

Can this module be used with DC input signals?
No. IC693MDL240 is specifically designed for 120 VAC inputs and is not compatible with DC voltage levels.

How is the field side electrically isolated from the logic side?
The module uses optical coupling to provide 1500V RMS isolation between field wiring and internal logic.

What is the purpose of the LED indicators on the front panel?
Each LED provides a visual ON/OFF status of its corresponding input channel, facilitating diagnostics and monitoring.

Can the IC693MDL240 be installed in any slot?
Yes, it can be placed in any I/O slot of a Series 90-30 5-slot or 10-slot baseplate.

What is the maximum response time for the input signals?
The On-response time is up to 30 ms, while the Off-response time can reach 45 ms.

Is there a derating curve for high temperature environments?
Yes, at ambient temperatures above 30°C, fewer than 16 inputs may be active simultaneously due to thermal limitations.

What color coding identifies this as a high-voltage module?
The left edge of the door insert is colored red to indicate it is a high-voltage AC input module.
