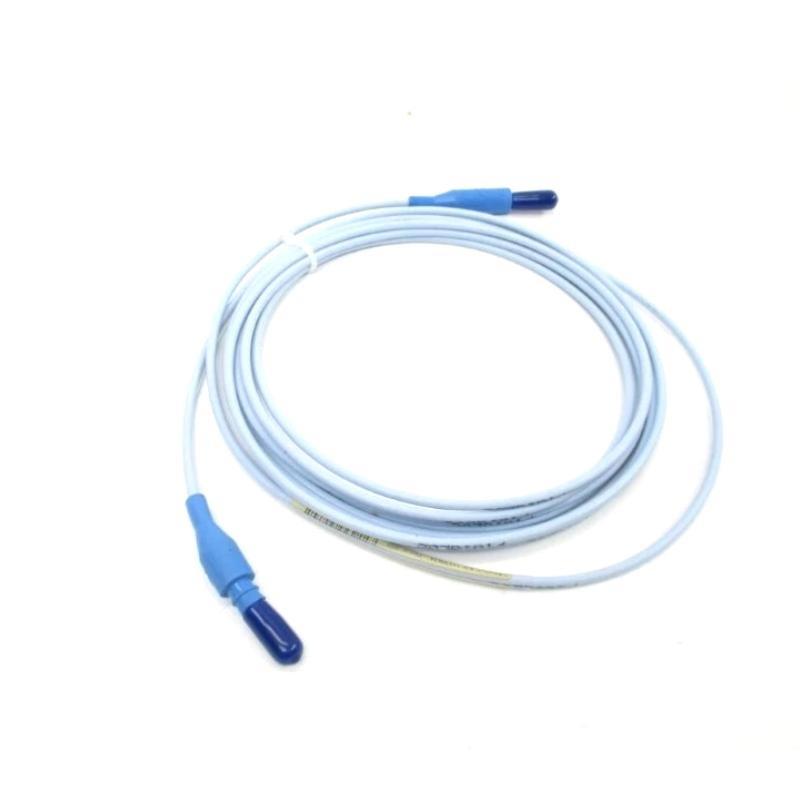

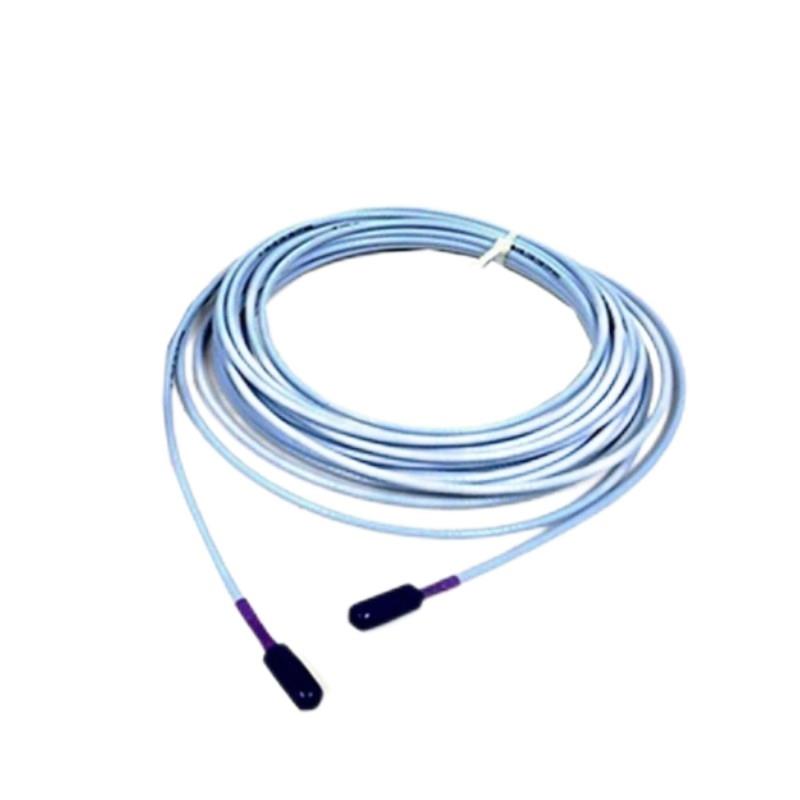

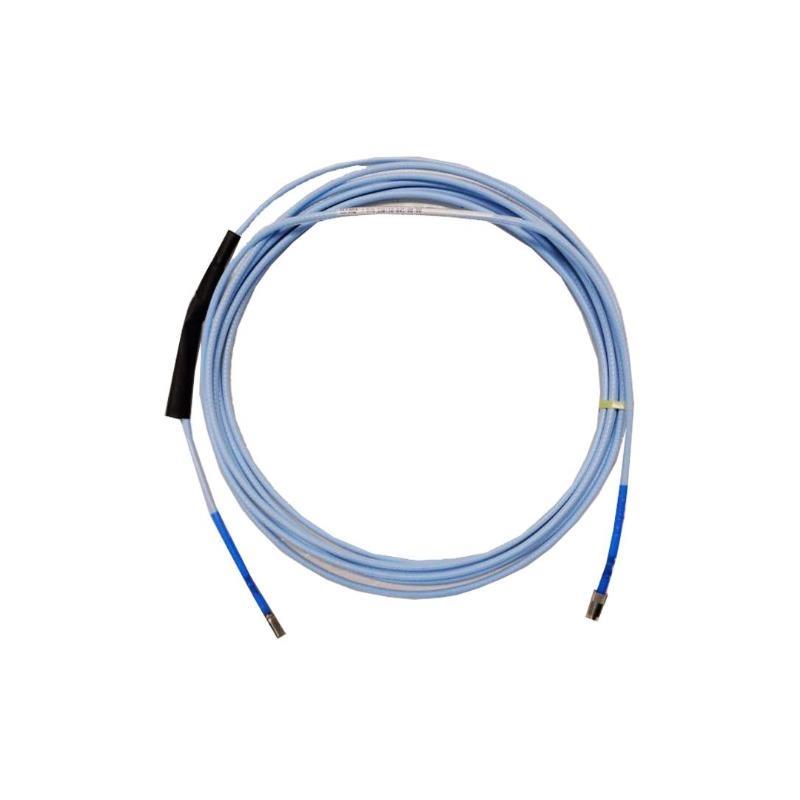

Bently Nevada 330130-085-10-CN 3300 XL Standard Extension Cable with locking hardware 12-Month Warranty

Bently Nevada 330130-085-10-CN 3300 XL Standard Extension Cable with locking hardware 12-Month Warranty

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 82 left

55%

Add to cart

Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

Bently Nevada 330130-085-10-CN 3300 XL Standard Extension Cable with locking hardware 12-Month Warranty

Brand：Bently Nevada

Item No.：330130-085-10-CN

Product Type：3300 XL Standard Extension Cable with locking hardware

Product Origin：USA

Dimensions：Cable length 8.5 m; assembly size varies with installation

Weight：0.45 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The source of goods is formal, the test instructions can be coordinated, and the after-sales service continues to follow up

Various models are in stock flexibly, supporting quick response, and welcome cooperation and communication!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the purpose of the 330130-085-10-CN extension cable?
It extends the connection between a 3300 XL proximitor sensor or probe and the monitoring system, with locking hardware and country-specific hazardous area certification.

What does “330130-085-10-CN” signify?
“085” indicates an 8.5 m cable length, “10” denotes a standard cable with locking hardware, and “CN” indicates country-specific approvals and hazardous area compliance.

What type of cable construction does this model use?
It uses a 75 Ω triaxial cable with FEP insulation and locking hardware for secure connector retention.

What electrical performance can be expected?
Typical capacitance is ~69.9 pF per meter and output resistance is 50 Ω, which supports accurate and reliable signal transmission.

What voltage range does this cable support?
It is designed for a DC supply range of approximately -17.5 Vdc to -26 Vdc in non-incendive industrial systems.

Why is the locking hardware feature beneficial?
Locking hardware improves connector retention and mechanical security in installations with vibration or movement.

What installation considerations are there for this cable?
The cable is 8.5 m long and weighs approximately 0.45 kg; planning for routing, support, and secure attachment should be made.

What environments can this cable operate in?
It is suitable for industrial temperature ranges from -40 °C to +125 °C and designed for hazardous area applications under the CN certification.
