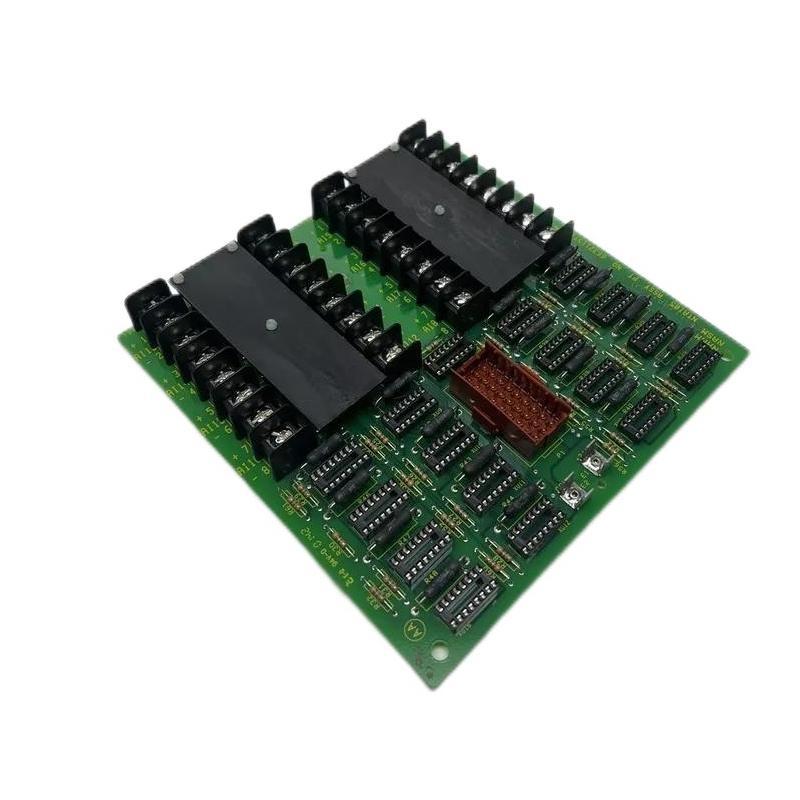

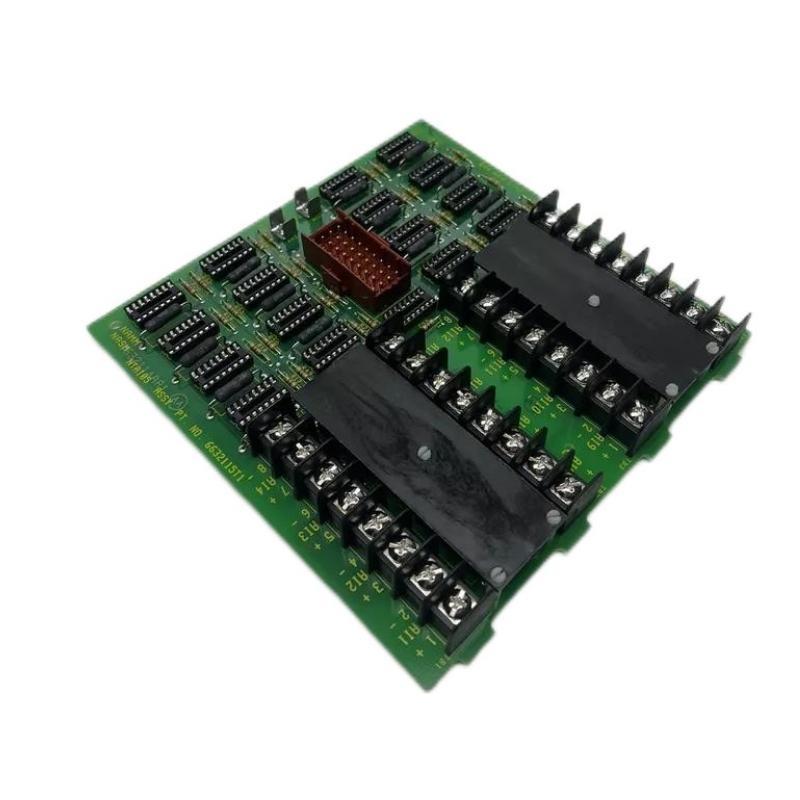

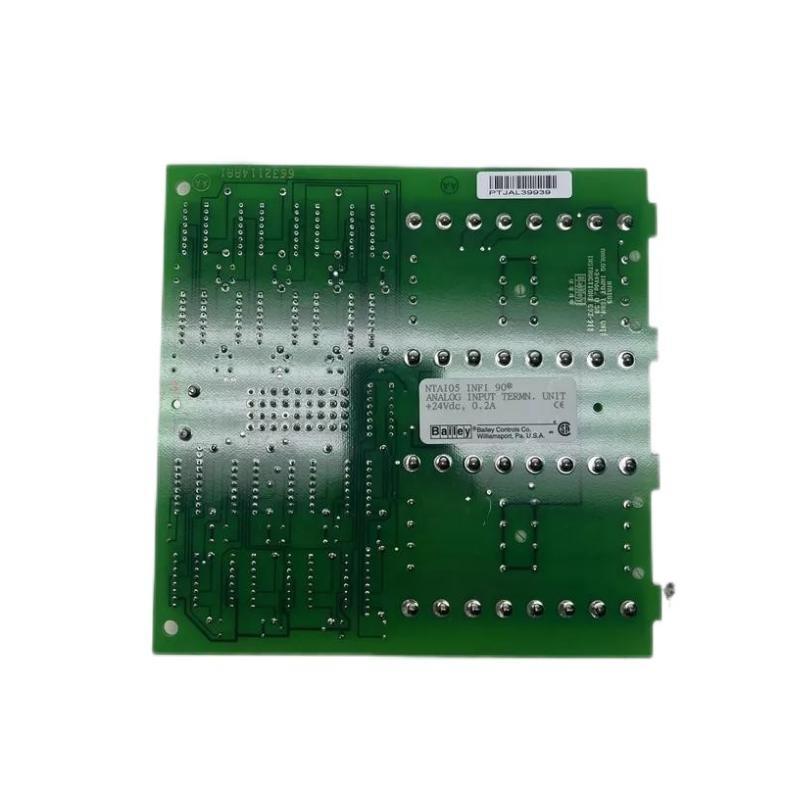

Name: ABB Bailey NTAI05 Infi 90 Analog Input Termination Unit Original
Brand: ABB PLC
SKU: 7619
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

ABB Bailey NTAI05 Infi 90 Analog Input Termination Unit Original

Brand：ABB Bailey

Item No.：NTAI05

Product Type：Analog Input Termination Unit

Product Origin：Sweden (SE)

Dimensions：78.74 x 215.9 x 233.68 mm

Weight：0.54 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for cooperation testing, and fast response to after-sales service

Tens of thousands of models are in stock, and spot delivery is fast. Welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the maximum number of inputs the NTAI05 can handle?
The NTAI05 can handle up to 16 analog inputs, depending on the slave module used.

How are input types configured on the NTAI05?
The input types are configured using dipshunts on the termination unit. You can select current or voltage signals, and whether they are differential or single-ended.

Can the NTAI05 be used with any other modules besides the IMASI02 and IMASM01?
Yes, it is also compatible with the IMFBS01 Field Bus Slave Module.

What kind of environmental conditions can the NTAI05 withstand?
The NTAI05 can operate in environments with temperatures ranging from 0°C to 70°C (32°F to 158°F) and relative humidity between 0% and 95%.

What is the recommended wiring size for field connections?
The recommended wire size for field connections is 12 to 22 AWG.

Does the NTAI05 require any external cooling?
No, the NTAI05 does not require any external cooling when used in Bailey cabinets and operated within the specified limits.

Is the NTAI05 CSA certified?
Yes, it is CSA certified for use as process control equipment in ordinary (non-hazardous) locations.

What kind of maintenance does the NTAI05 require?
The NTAI05 requires minimal maintenance, including periodic cleaning and tightening of power and grounding connections every 6 months or during plant shutdowns.
