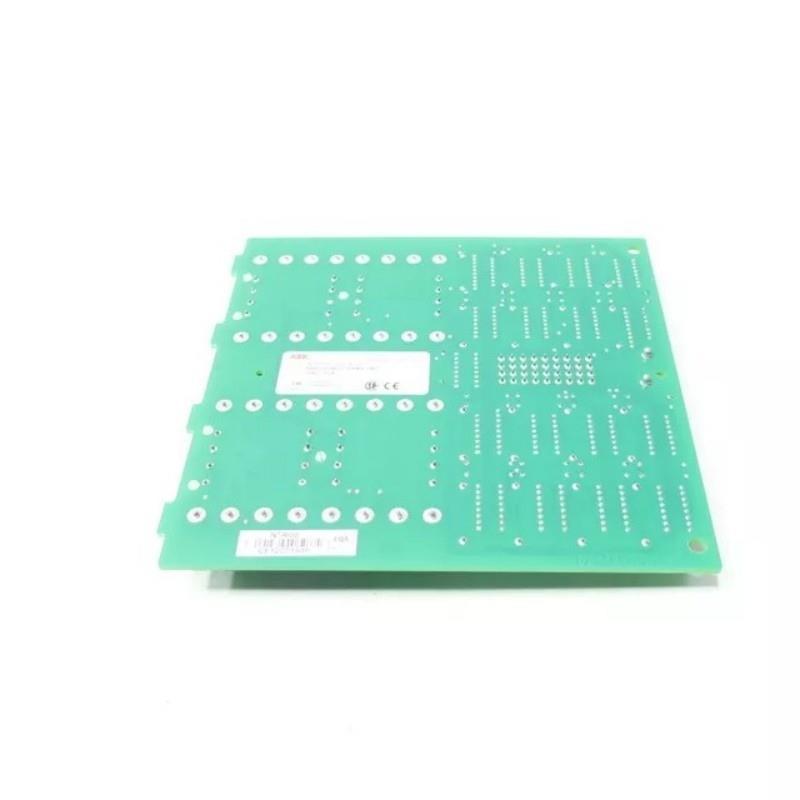

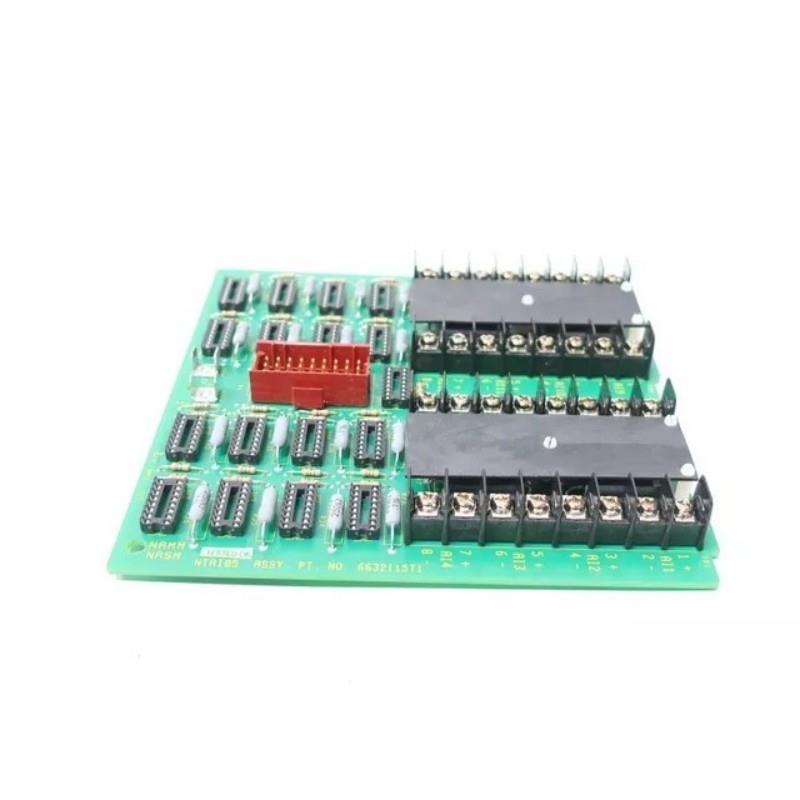

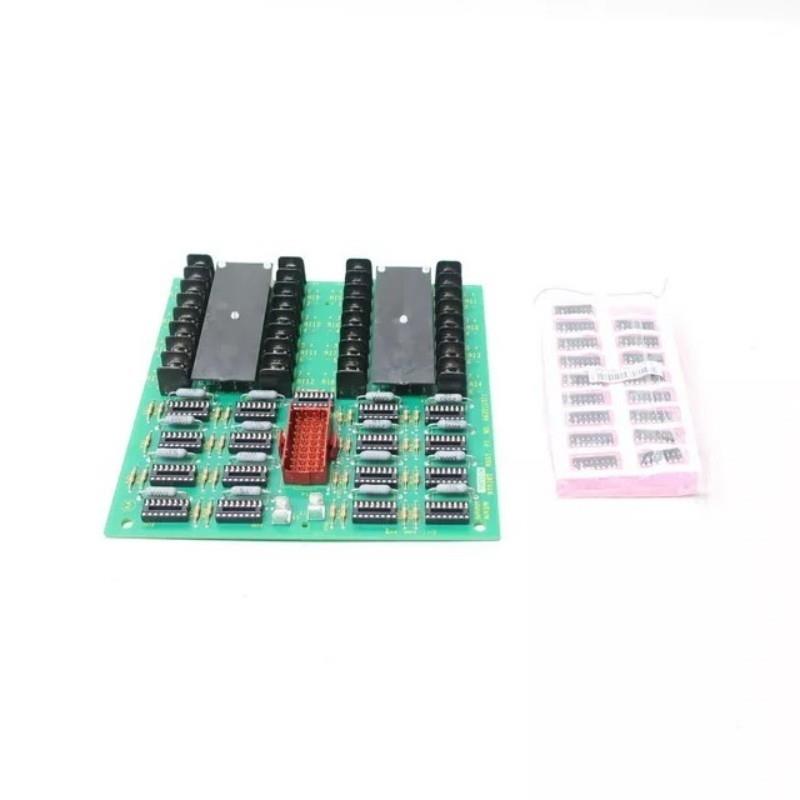

Name: ABB Bailey NTAI05-A Infi 90 Analog Input Termination Unit 12-Month Warranty
Brand: ABB PLC
SKU: 7641
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

ABB PLC provide various solution for industries and applications, include water, building infrastructure, renewable energy, machinery automation, data centers, marine and more.

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

Product Introduction

ABB Bailey NTAI05-A Infi 90 Analog Input Termination Unit 12-Month Warranty

Brand：ABB Bailey

Item No.：NTAI05-A

Product Type：Analog Input Termination Unit

Product Origin：Sweden (SE)

Dimensions：78.74 x 215.9 x 233.68 mm

Weight：0.54 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, testing assistance instructions support, stable and reliable service

Regular models are in stock for a long time, the inventory is stable, welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ (Frequently Asked Questions)

What types of analog inputs does the NTAI05 support?

The NTAI05 supports various input types including 4-20mA, -10V to +10V, 0V to 10V, 1V to 5V, 0V to 5V, and 0V to 1V (with IMASI02 and IMFBS01 modules).

How do I install the NTAI05 termination unit?

The NTAI05 unit mounts onto the NFTP01 Field Termination Panel using screws. Ensure proper connection of field wiring and communication cables.

Can I use the NTAI05 with different slave modules?

Yes, the NTAI05 is compatible with the IMASI02, IMASM01, and IMFBS01 slave modules.

What is the maximum number of analog inputs supported?

The NTAI05 supports up to 16 analog inputs when used with the IMASM01 module, and up to 15 inputs with the IMASI02 or IMFBS01 modules.

What environmental conditions are suitable for the NTAI05?

The NTAI05 operates in temperatures from 0°C to 70°C (32°F to 158°F) and is suitable for non-corrosive environments.

What are the maintenance requirements for the NTAI05?

Perform maintenance every six months, including cleaning and tightening connections, and removing dust with a static-safe vacuum cleaner.

How do I replace the NTAI05 unit?

To replace, disconnect power, remove the faulty unit, install the new unit, and verify all connections and settings before powering up.

Can the NTAI05 handle both system-powered and externally powered inputs?

Yes, the NTAI05 supports both system-powered and externally powered inputs, depending on the slave module configuration.
