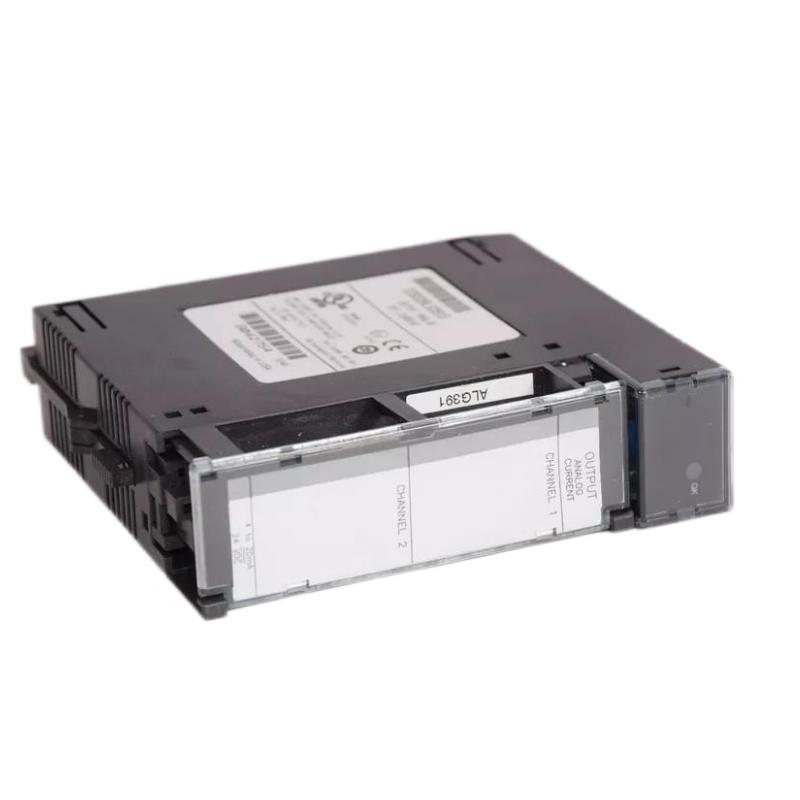

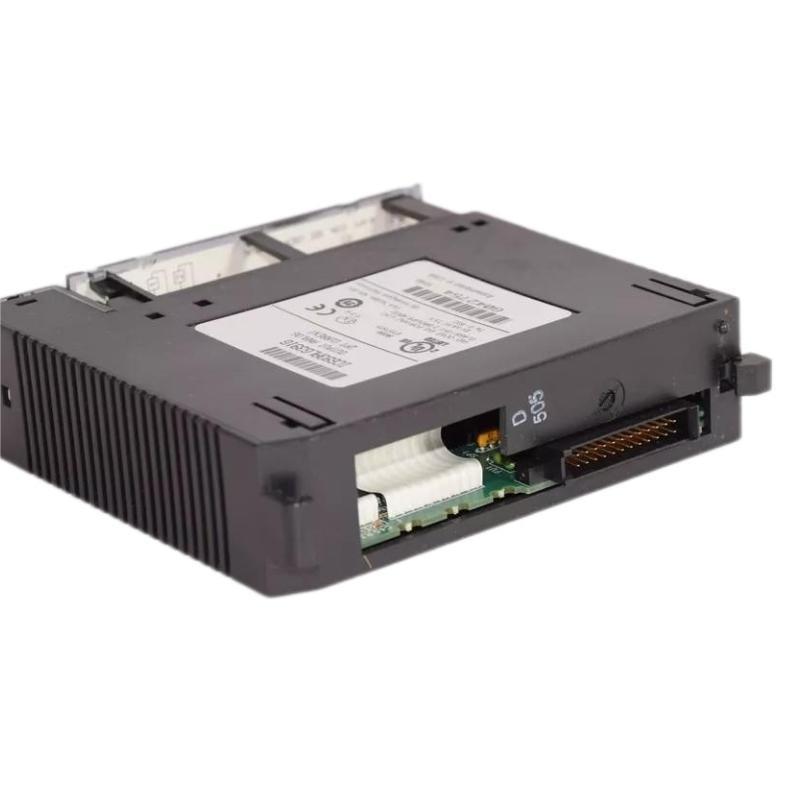

GE IC693ALG391G Series 90-30 PLC Analog Current Output Module 100% New

Frequently Asked Questions (FAQ)

What is the maximum current that can be output by the IC693ALG391G?

The maximum current output for the IC693ALG391G is 20 mA in either the 0-20 mA or 4-20 mA range.

Can the IC693ALG391G be used with both current and voltage output?

Yes, the module can output both current and voltage, depending on how it is configured with jumpers.

What is the resolution of the analog output?

The resolution is 12 bits, meaning there are 4096 discrete steps for the output signal.

What is the power supply requirement for the IC693ALG391G?

The module requires a +24 VDC supply, which can be provided by the PLC’s backplane or an external user-supplied voltage.

How often does the IC693ALG391G update its output?

The module updates its output approximately every 5 milliseconds, depending on the I/O scan time and the application.

Can the output state be held when the PLC goes into STOP or RESET mode?

Yes, the module can be configured to either hold the last output state or default to 0/4 mA when the PLC stops or resets.

What is the isolation level of the module?

The IC693ALG391G provides 1500 V isolation between the field wiring and the logic side to protect against electrical noise.

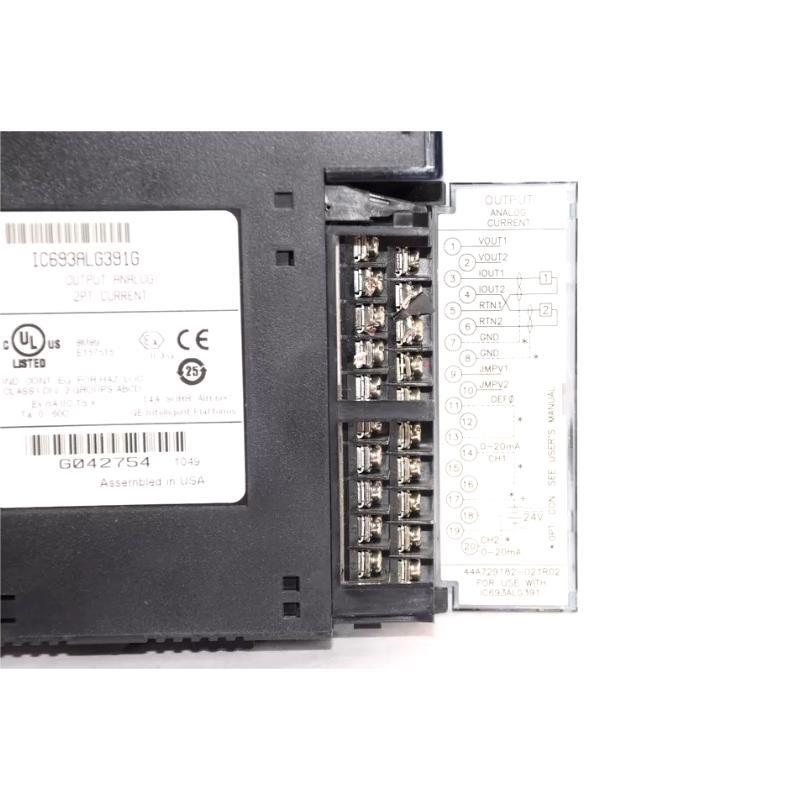

What is the recommended cable type for field wiring?

It is recommended to use twisted, shielded instrumentation cable for field wiring to minimize noise and capacitance issues.
