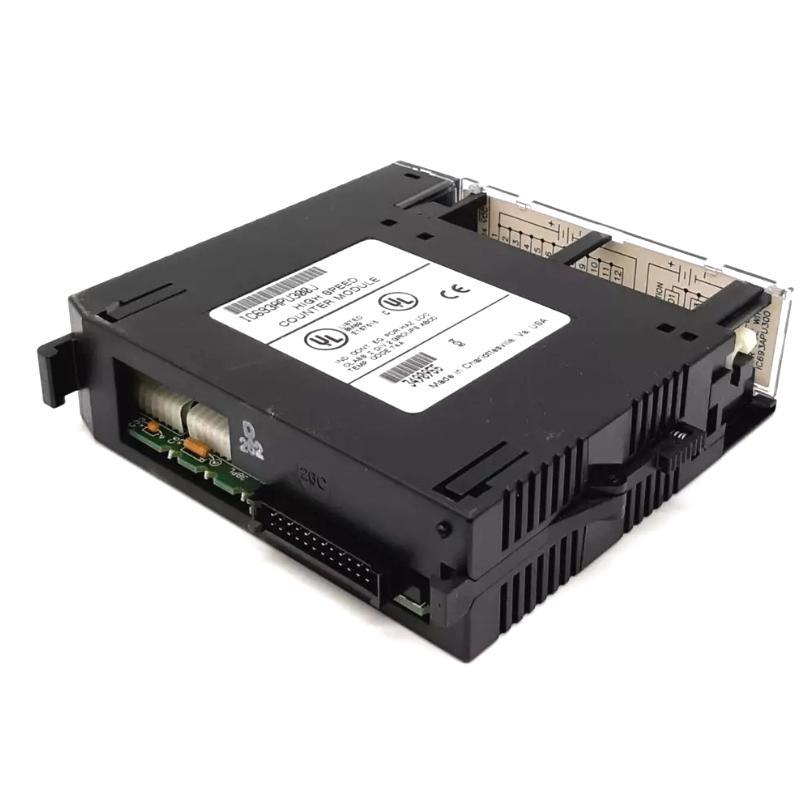

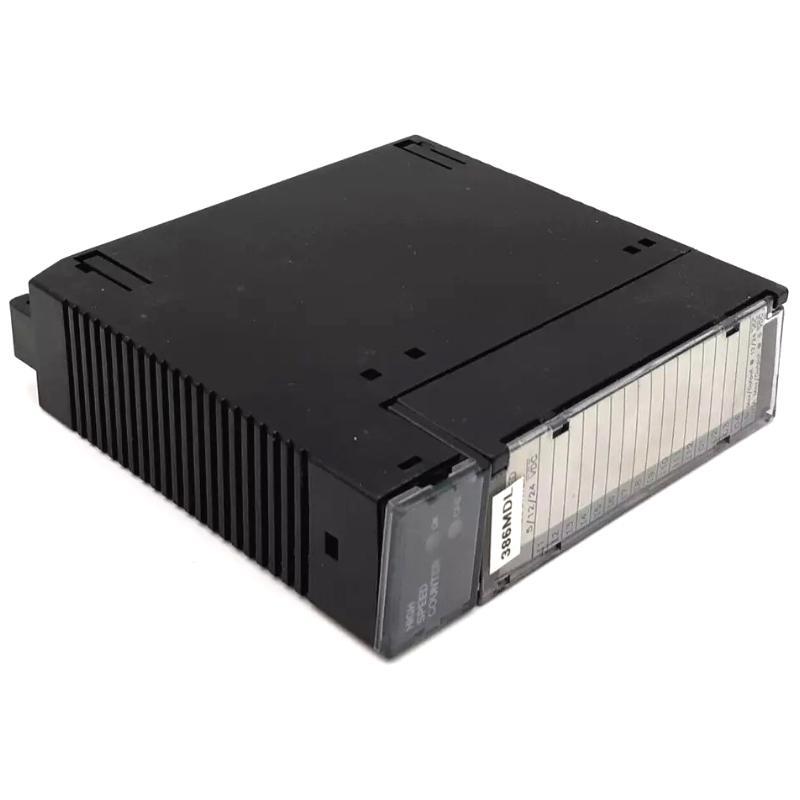

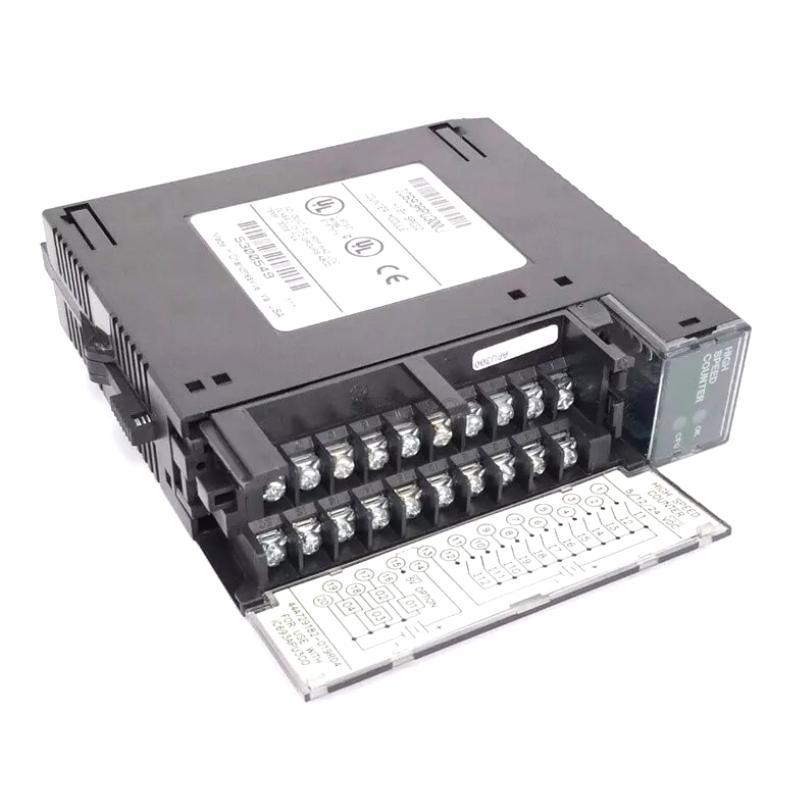

Name: GE IC693APU300J Series 90-30 PLC High Speed Counter 12-Month Warranty
Brand: GE Fanuc PLC
SKU: 7669
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IC693APU300J Series 90-30 PLC High Speed Counter 12-Month Warranty

Brand：GE Fanuc

Item No.：IC693APU300J

Product Type：High Speed Counter

Product Origin：USA

Dimensions：51 x 127 x 127 mm

Weight：0.23 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and has smooth after-sales connection

Large stock, diverse series, suitable for different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ (Frequently Asked Questions)

What is the count rate for the IC693APU300J module?

The IC693APU300J supports a high frequency count rate of up to 80 kHz and a low frequency rate down to 20 Hz.

What types of inputs can be used with the IC693APU300J?

The module supports inputs for A Quad B Encoders, Absolute Encoders, and other digital pulse signals.

How many outputs does the IC693APU300J module support?

The module has 4 fast outputs with a maximum current of 500 mA per output.

Can the IC693APU300J handle high-speed pulse counting?

Yes, it is designed for high-speed pulse counting, making it ideal for applications such as motion control and automated systems.

What is the power consumption of the IC693APU300J?

The module consumes 250 mA of current from a 5 VDC power source.

What types of applications is the IC693APU300J suitable for?

It is ideal for applications like motion control, material handling, elevators, and other industrial automation systems that require high-speed counting and precision.

How do I integrate the IC693APU300J with a Series 90-30 PLC?

The module easily integrates into the Series 90-30 PLC system via its backplane and is compatible with other I/O modules.

What is the size and weight of the IC693APU300J module?

The module has dimensions of 51 x 127 x 127 mm and weighs approximately 0.23 kg.
