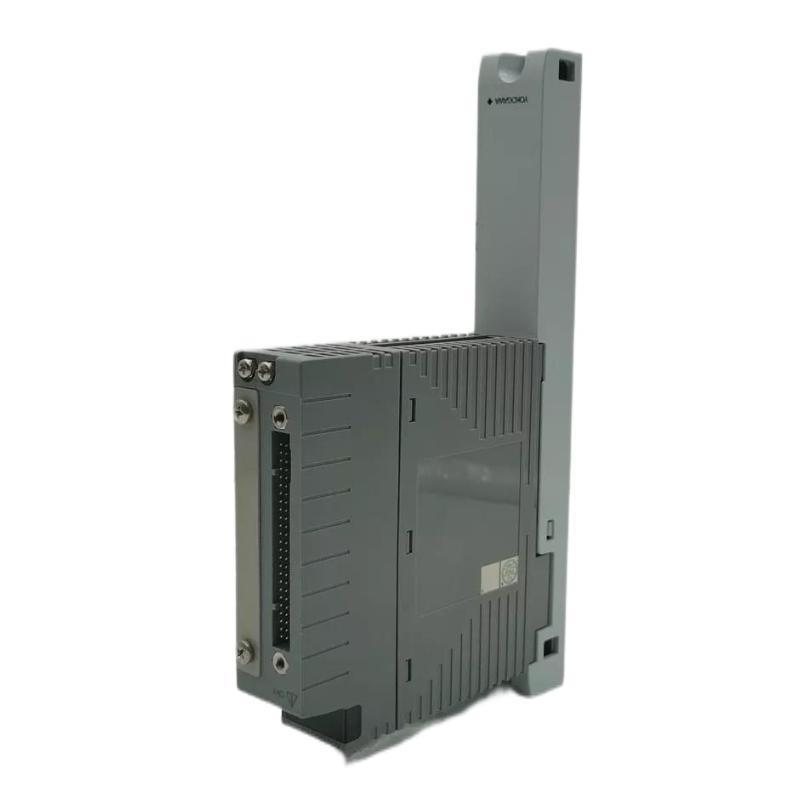

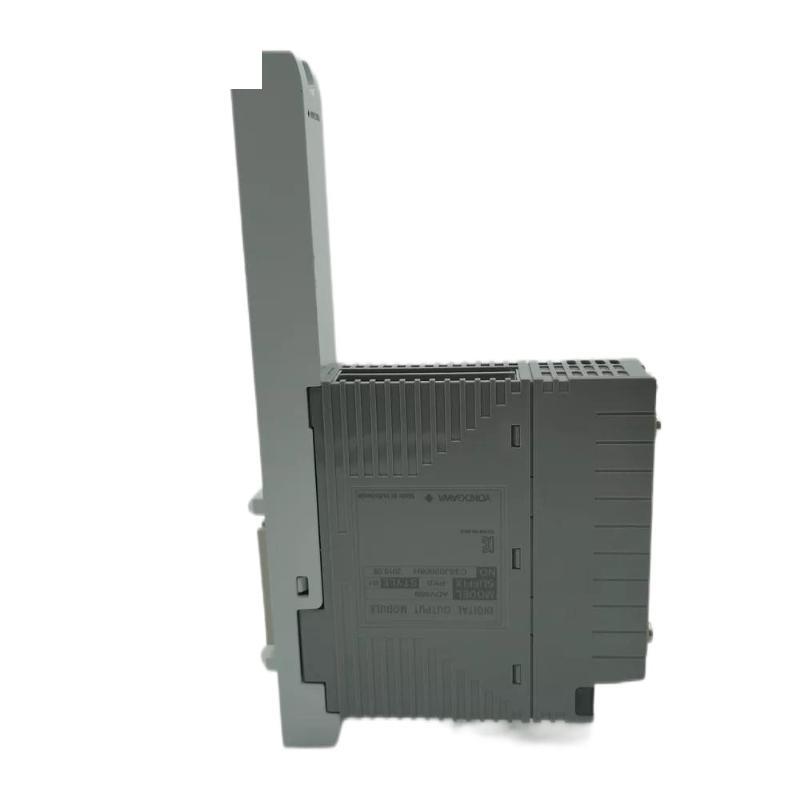

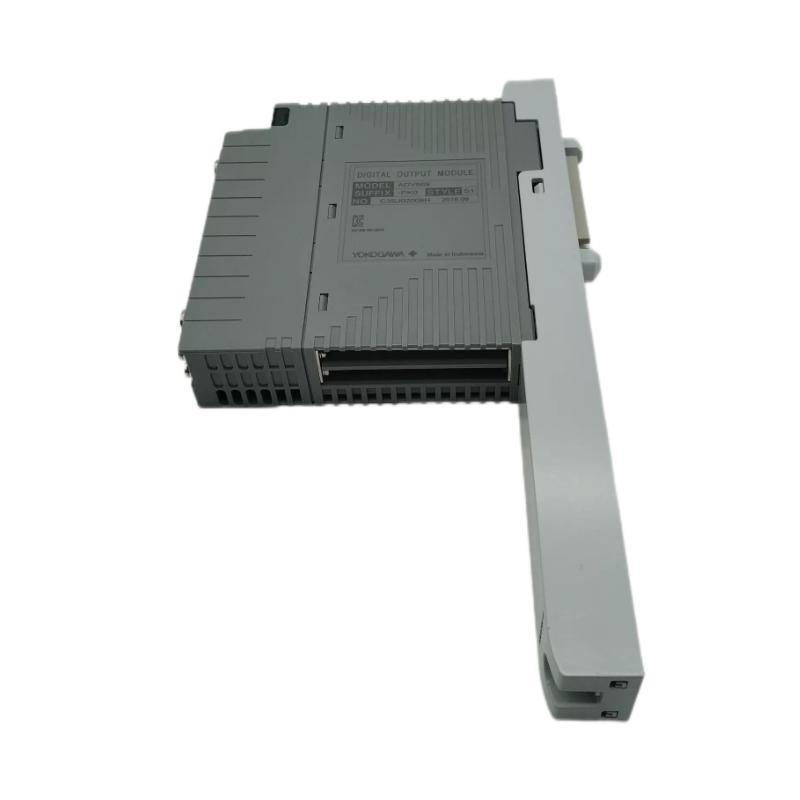

Name: Yokogawa ADV569-P01 Digital Output Module Fast Shipping!
Brand: Yokogawa Electric
SKU: 7674
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

Yokogawa Electric has over 100 years experience in the measurement and control business,it produces the first DCS in the world. The main system is CENTUM CS 3000 R3.

Product Introduction

Yokogawa ADV569-P01 Digital Output Module Fast Shipping!

Brand：Yokogawa

Item No.：ADV569-P01

Product Type：Digital Output Module

Product Origin：Japan

Dimensions：130 x 127.2 x 32.8 mm

Weight：0.3 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Flexible stock of various models, support for rapid response, welcome to cooperate and communicate!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ – Frequently Asked Questions

What is the main difference between ADV569-P01 and ADV561?
Both offer 64 digital output channels, but the ADV569-P01 is ST7-compatible and designed for use in Yokogawa’s CENTUM VP systems. It supports flexible output assignments and isolation grouped every 16 channels.

Does ADV569-P01 support PWM or time-based modulation?
Yes, it supports Pulse Width (PW) and Time-Proportioning (TP) output functions with configurable pulse widths between 8 ms to 7200 s.

Can ADV569-P01 be used in redundant systems?
Yes, when integrated into appropriate CENTUM VP redundant configurations, it supports dual-redundancy architectures.

What kind of outputs can ADV569-P01 drive?
It is ideal for controlling relays, solenoids, indicators, and low-voltage DC devices, with a per-channel current limit of 100 mA.

What is the response time of the module?
The output response time is 16 ms or less, suitable for most real-time industrial applications.

What installation accessories are required?
The module uses KS9 dedicated cables for field wiring and is compatible with ST7 cards. Terminal blocks and connector covers are available as optional accessories.

Is the ADV569-P01 suitable for outdoor or hazardous environments?
The module is rated for -20 to +70 °C (with G3 option) and is available in explosion-protected variants.

How is isolation implemented across channels?
Outputs are grouped with common minus (-) every 16 channels, which ensures electrical separation for improved fault tolerance.
