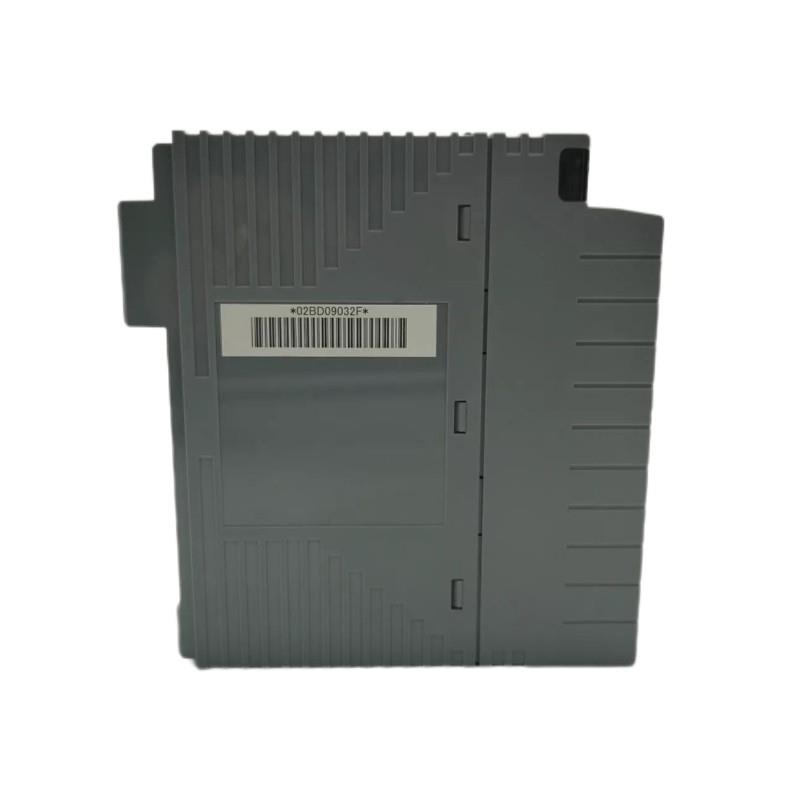

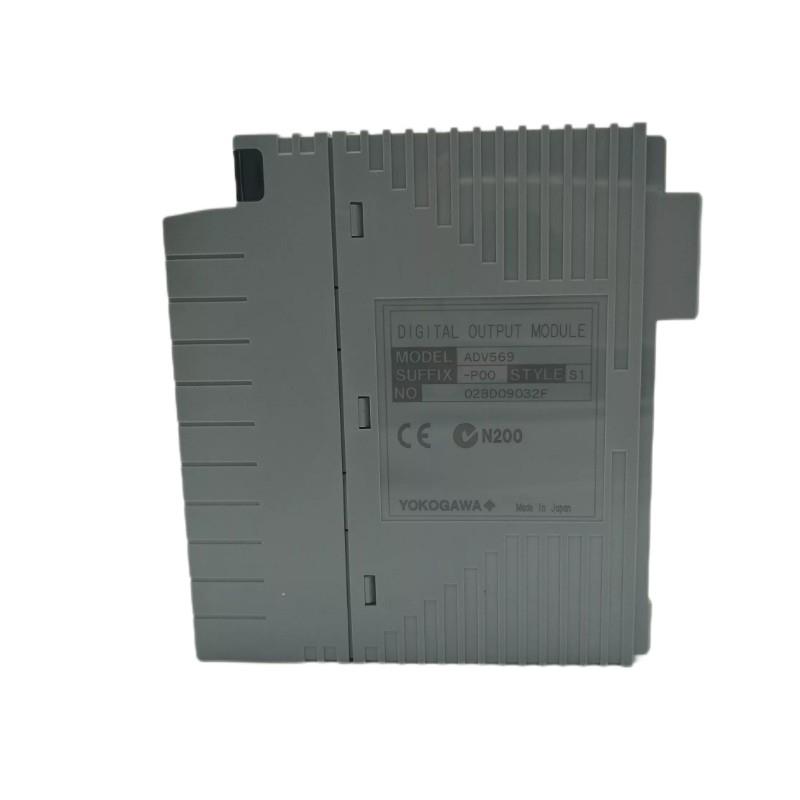

Yokogawa ADV569 Digital Output Module Trusted supplier

Frequently Asked Questions (FAQ)

What type of outputs does the ADV569 module support?
The ADV569 supports transistor contact outputs with three modes: Status Output (SO), Pulse Width (PW), and Time-Proportioning (TP).

Can I mix PW and TP outputs on the same module?
Yes, but they must follow specific terminal pairing rules. Contiguous terminal pairs must be assigned to the same function (PW or TP).

Is the ADV569 suitable for use in dual-redundant systems?
No, ADV569 is designed for direct-connected node configurations. Dual redundancy is not supported for this model.

What kind of load can be driven by the ADV569 output?
The outputs can drive inductive or resistive loads up to 100 mA per channel at 30 V DC. A diode is recommended when driving DC relays.

How is electrical isolation handled in the ADV569?
Channels are isolated in groups of 16, and withstand voltages are 2 kV AC (signal to system) and 500 V AC (between commons).

What is the response time of the ADV569 outputs?
The module achieves an output response time of up to 16 ms, ensuring real-time control performance.

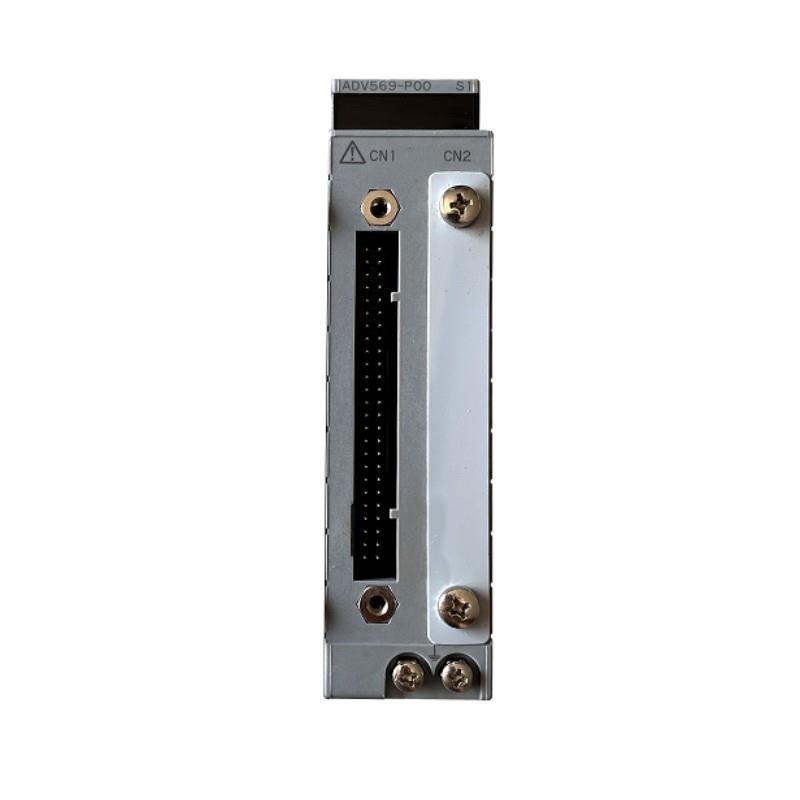

What connector is required for field connection?
The ADV569 uses a dedicated KS9 cable for external connection.

What are the environmental conditions supported by this module?
The standard model supports temperatures from 0°C to 55°C. Models with suffix -3 are suitable for extended environments up to 70°C.
