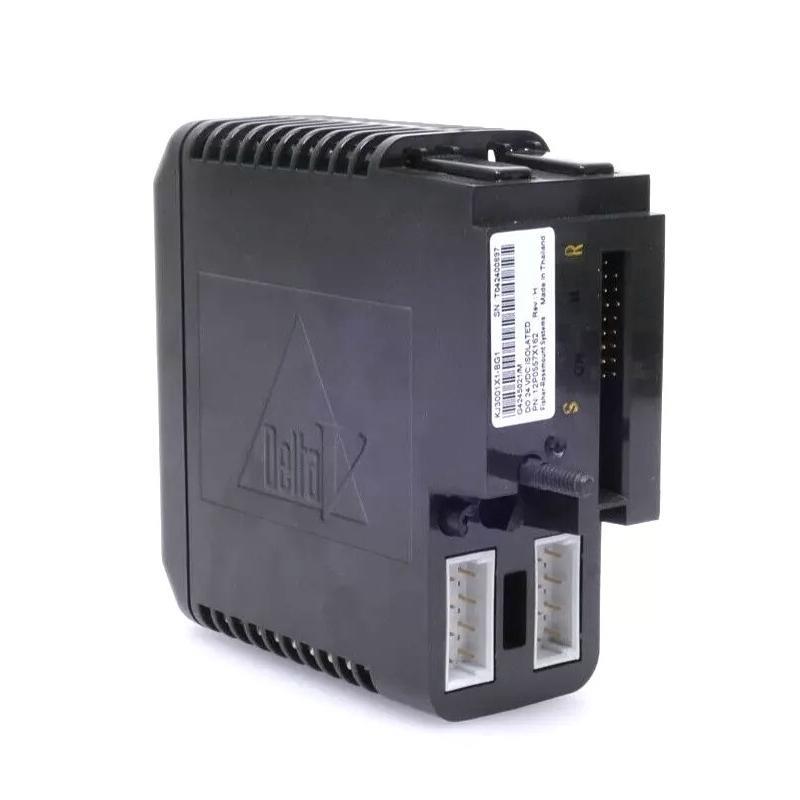

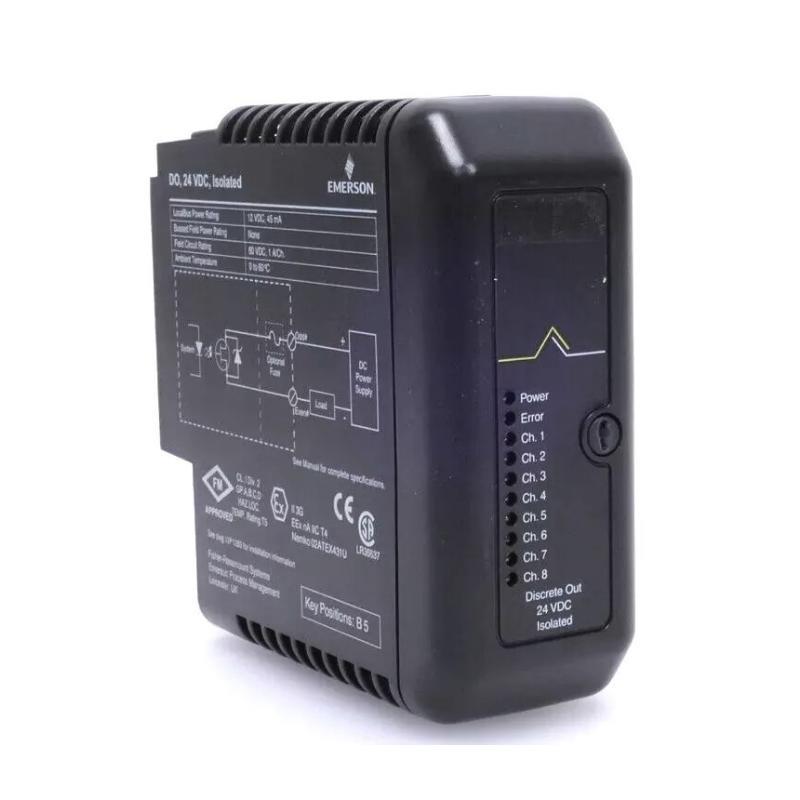

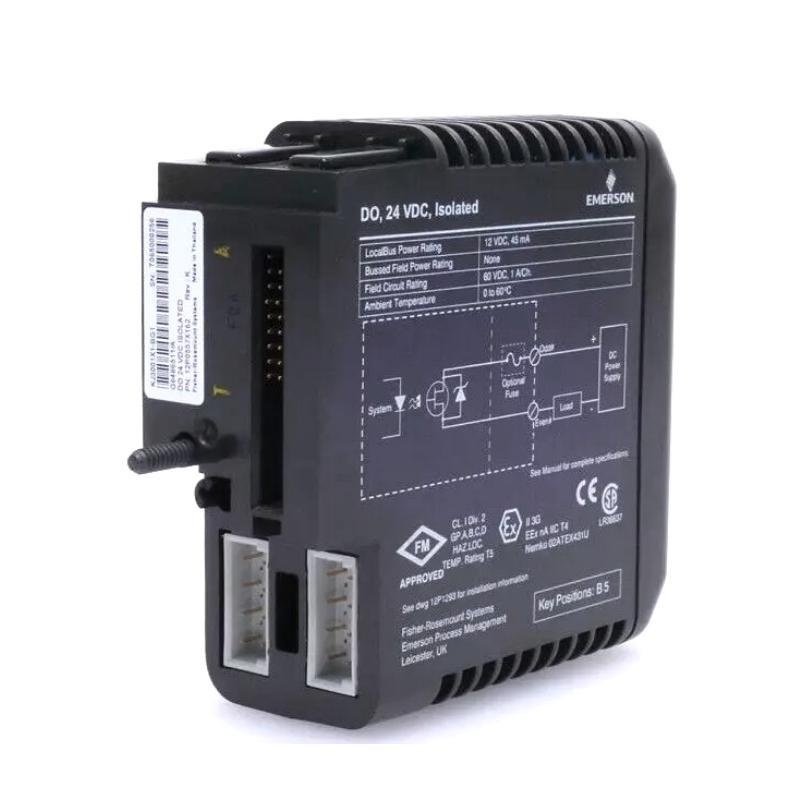

Emerson KJ3001X1-BG1 12P0557X162 Discrete Output Module Card 12-Month Warranty

FAQs (QA format):

What is the voltage rating of the KJ3001X1-BG1 Discrete Output Module?
The module operates at 24 VDC.

How many channels does the KJ3001X1-BG1 module provide?
The module provides 8 discrete output channels.

What is the field circuit rating of this module?
The field circuit rating is 60 VDC at 1 A per channel.

Can the module be used in hazardous environments?
Yes, the module is certified for use in hazardous atmospheres (II 3 G, EEx nA IIC T4).

What is the operating temperature range for this module?
The module operates within an ambient temperature range of 0 to 60°C.

Is calibration required for the KJ3001X1-BG1 module?
No, calibration is not required as the module operates reliably without user calibration.

What type of protection does the KJ3001X1-BG1 module have against contaminants?
The module has an IP 20 rating, meaning it is protected against solid objects greater than 12 mm but is not dust-tight.

Can the module be inserted or removed while the system is powered?
Yes, the module can be removed or inserted while system power is energized, provided field power is de-energized for non-sparking circuits.
