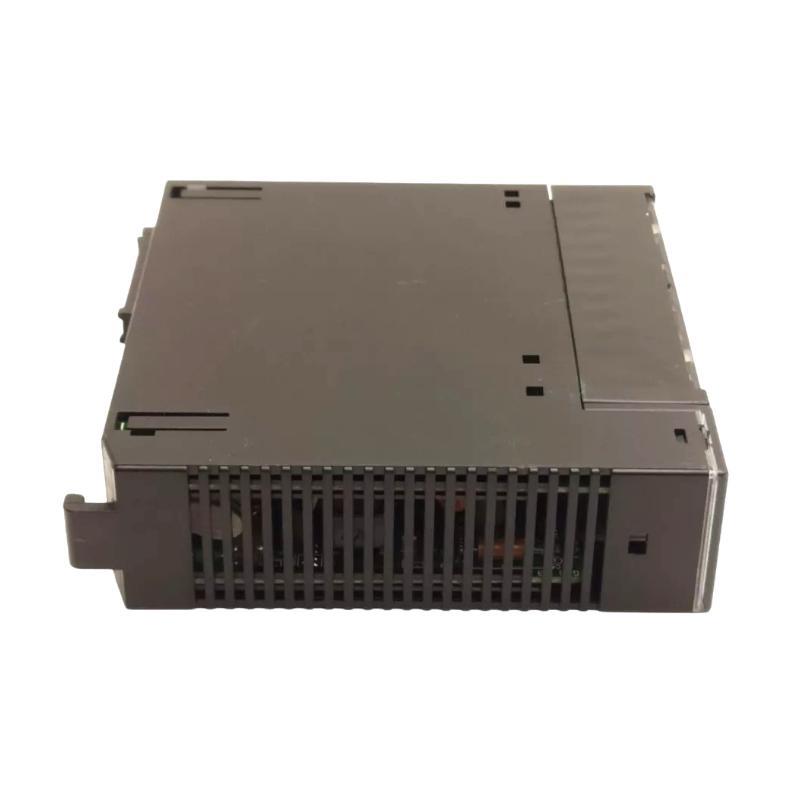

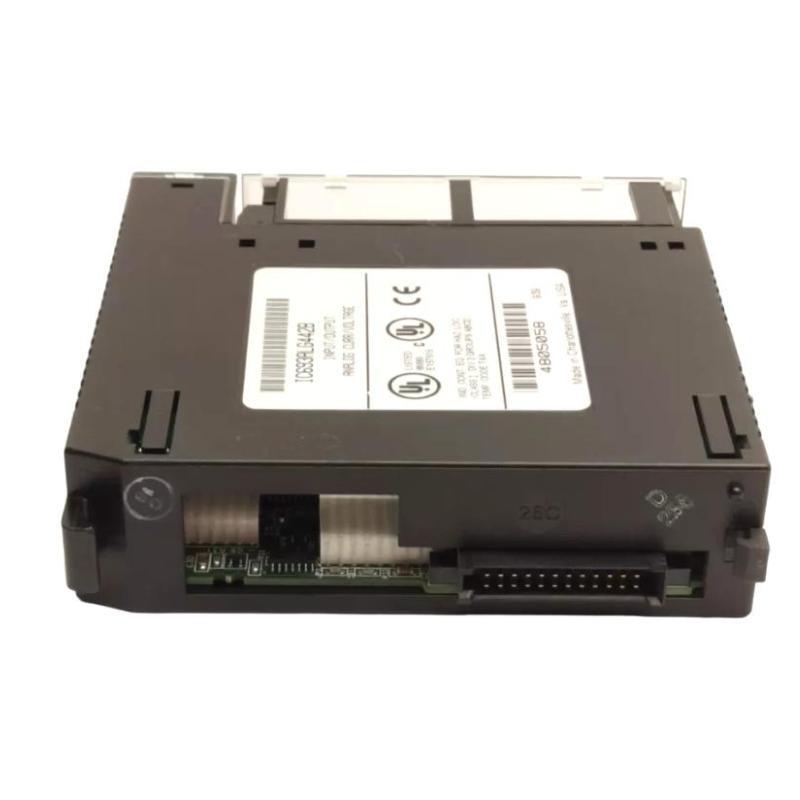

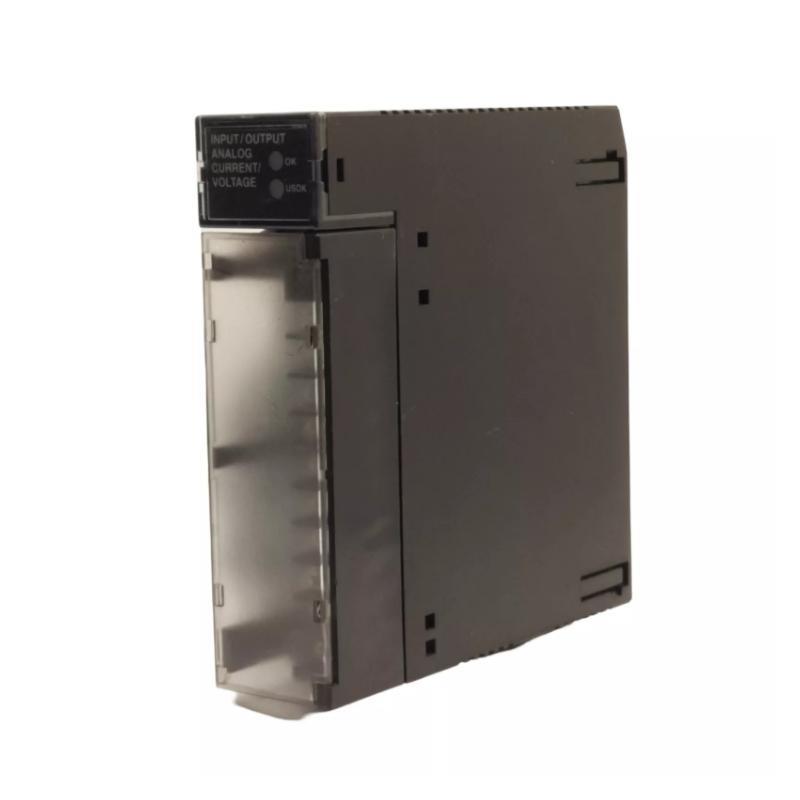

Name: GE IC693ALG442 Series 90-30 PLC Analog Current/Voltage Combination Module Trusted supplier
Brand: GE Fanuc PLC
SKU: 7686
Availability: InStock
Rating: 5.0 (1 reviews)

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IC693ALG442 Series 90-30 PLC Analog Current/Voltage Combination Module Trusted supplier

Brand：GE Fanuc

Item No.：IC693ALG442

Product Type：Analog Current/Voltage Combination Module

Product Origin：USA

Dimensions：51 x 127 x 127 mm

Weight：1.5 Kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Standardized import process, support for testing, guaranteed after-sales

Ten thousand models in stock, quickly match needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ (Frequently Asked Questions):

What is the default range for both the input and output channels?
The default range for both input and output channels is 0 to +10V (unipolar).

How do I configure the IC693ALG442?
Configuration is done using software such as Logicmaster or VersaPro, or via the Hand-Held Programmer.

What is the accuracy of the voltage input channels?
The accuracy for voltage inputs is ± 0.25% of full scale at 25°C (77°F), typical.

Can the output channels be set to ramp mode?
Yes, the output channels can be set to ramp mode to smoothly transition between values over time.

What is the maximum load capacitance for the output channels?
The maximum load capacitance for the output channels is 1 µF.

What should I do if the module displays an error?
If the module displays an error, check the %I status information for detailed error codes, which can indicate issues like invalid channels or improper configurations.

How can I detect an open-wire fault?
Open-wire faults are detected automatically in current output modes, and the status is reported to the CPU.

Can the IC693ALG442 be used in all Series 90-30 PLC systems?
Yes, the IC693ALG442 module is compatible with all Series 90-30 PLC models and can be installed in any available I/O slot.
