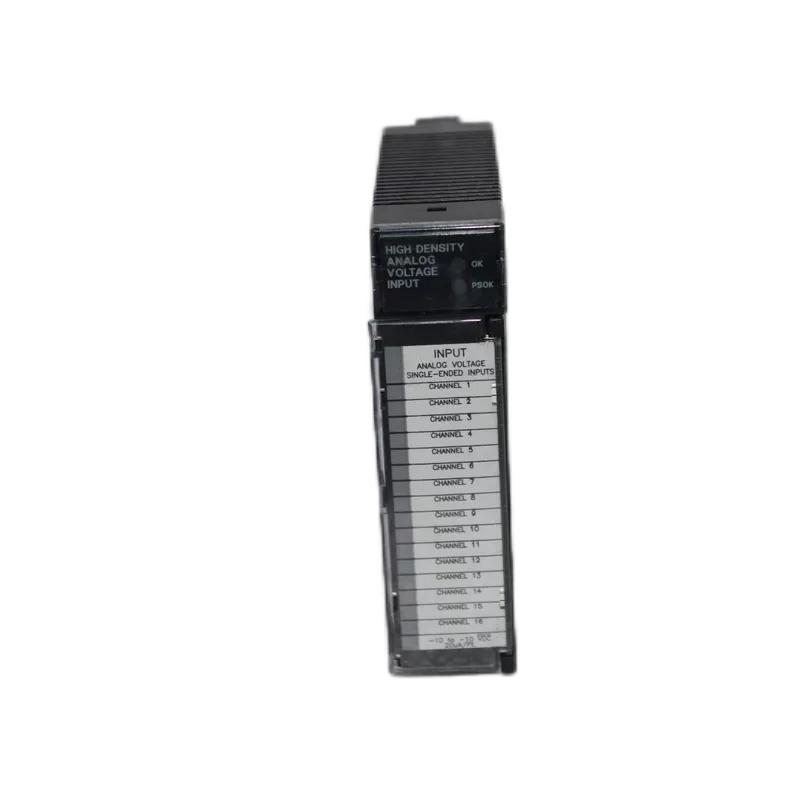

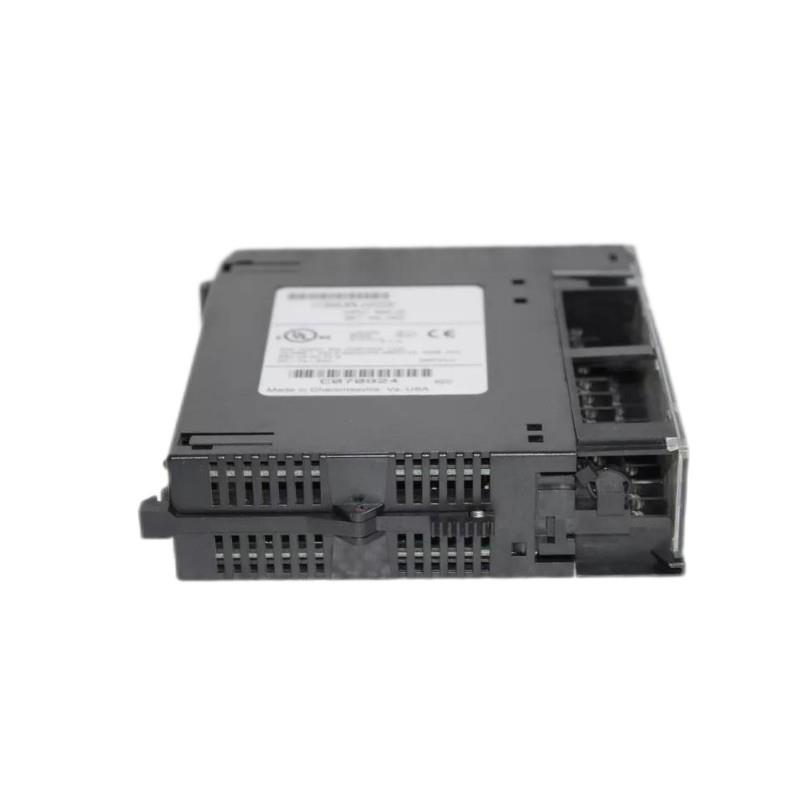

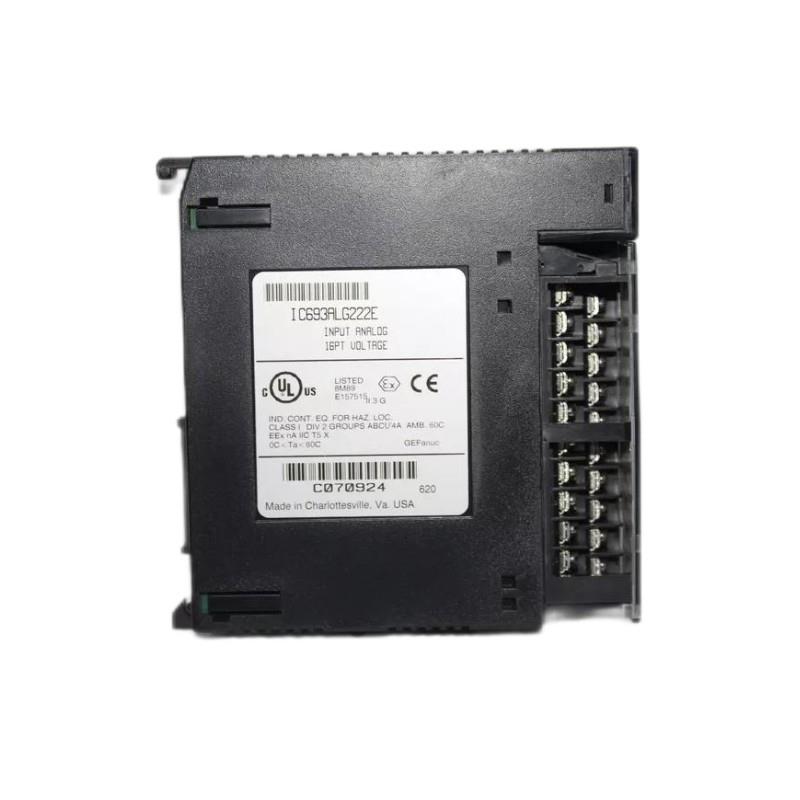

GE IC693ALG222E Analog Current Input Module Unbelievable Prices!

GE IC693ALG222E Analog Current Input Module Unbelievable Prices!

Name: GE IC693ALG222E Analog Current Input Module Unbelievable Prices!
Brand: GE Fanuc PLC
SKU: 7694
Availability: InStock
Rating: 5.0 (1 reviews)

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 128 left

85%

Add to cart

Product Details

GE Fanuc PLC system includes IC200, IC693, IC694, IC695, IC697, IC698, and Cards series IS200, IS215, DS200,DS3000/3800 and more.

Product Introduction

GE IC693ALG222E Analog Current Input Module Unbelievable Prices!

Brand：GE Fanuc

Item No.：IC693ALG222E

Product Type：Analog Current Input Module

Product Origin：USA

Dimensions：174 x 114 x 39 mm

Weight：0.41 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Standardized import process, support for testing, and guaranteed after-sales

Complete models, inventory is updated in real time, welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the maximum number of channels that can be configured on the IC693ALG222E?
The IC693ALG222E can be configured with up to 16 channels in single-ended mode or 8 channels in differential mode.

What are the supported input ranges for the IC693ALG222E?
The module supports a 0 to 10 V (unipolar) and -10 to +10 V (bipolar) input range, selectable for each channel.

How does the IC693ALG222E handle alarm limits?
The module allows you to configure low and high alarm limits for each channel, which can trigger alarms if the input signal falls outside these limits.

What type of isolation does the IC693ALG222E offer?
The module provides 1500 volts of isolation between the field side and the logic side to prevent interference.

What is the power consumption of the IC693ALG222E?
The module consumes a maximum of 112 mA from the 5V backplane and 41 mA from the 24V DC supply.

Can the IC693ALG222E be configured for different input types?
Yes, it can be configured for single-ended or differential inputs, depending on your needs.

What is the update rate of the IC693ALG222E?
The update rate is 6 msec for all 16 single-ended channels and 3 msec for all 8 differential channels.

How does the IC693ALG222E handle calibration?
The module is factory calibrated with 2.5 mV per count for the 0 to 10 V range and 5 mV per count for the -10 to +10 V range.
